Short & Long Tube Headers for 1987-1996 Ford F150 / F250 / Bronco 5.8L V8丨RWD & 4WD
Product Specifications
Shorty & Long Tube Headers for Ford F-150, F-250 & Bronco 5.8L V8
Replacing the factory exhaust manifolds on a 1995 Ford F-150 5.8L? Choose Long Tube for a longer, clamp-on collector layout or Short Tube for a compact bolt-on layout. Both Flashark options are listed for the 5.8L OHV V8 in the F-150 and F-250 with RWD and the Bronco with 4WD. If you have a 1996 model, select Long Tube or confirm Short Tube compatibility before ordering.
Specifications

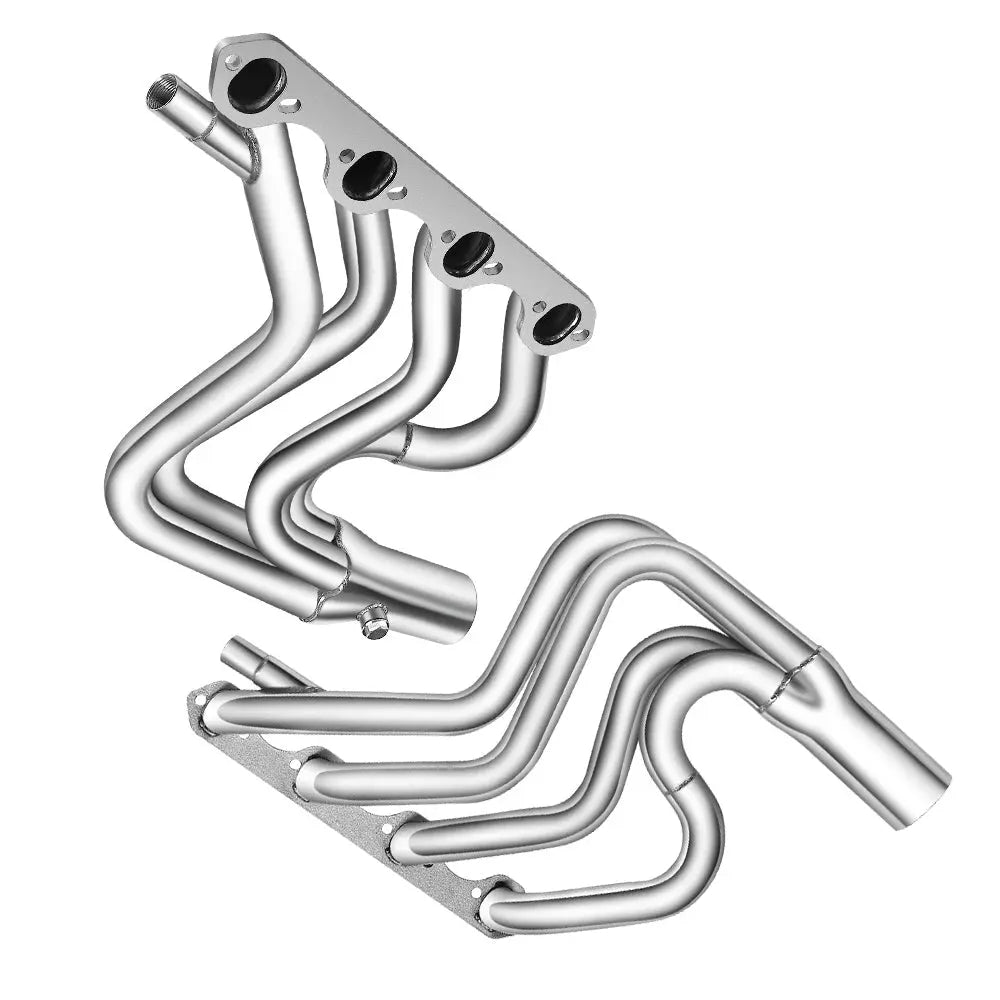

Long Tube (FLES08244)
| Specification | Details |
|---|---|
| Model | ES08244 (EH28140) |
| Material | Stainless steel |
| Finish | Mirror-polished, metallic |

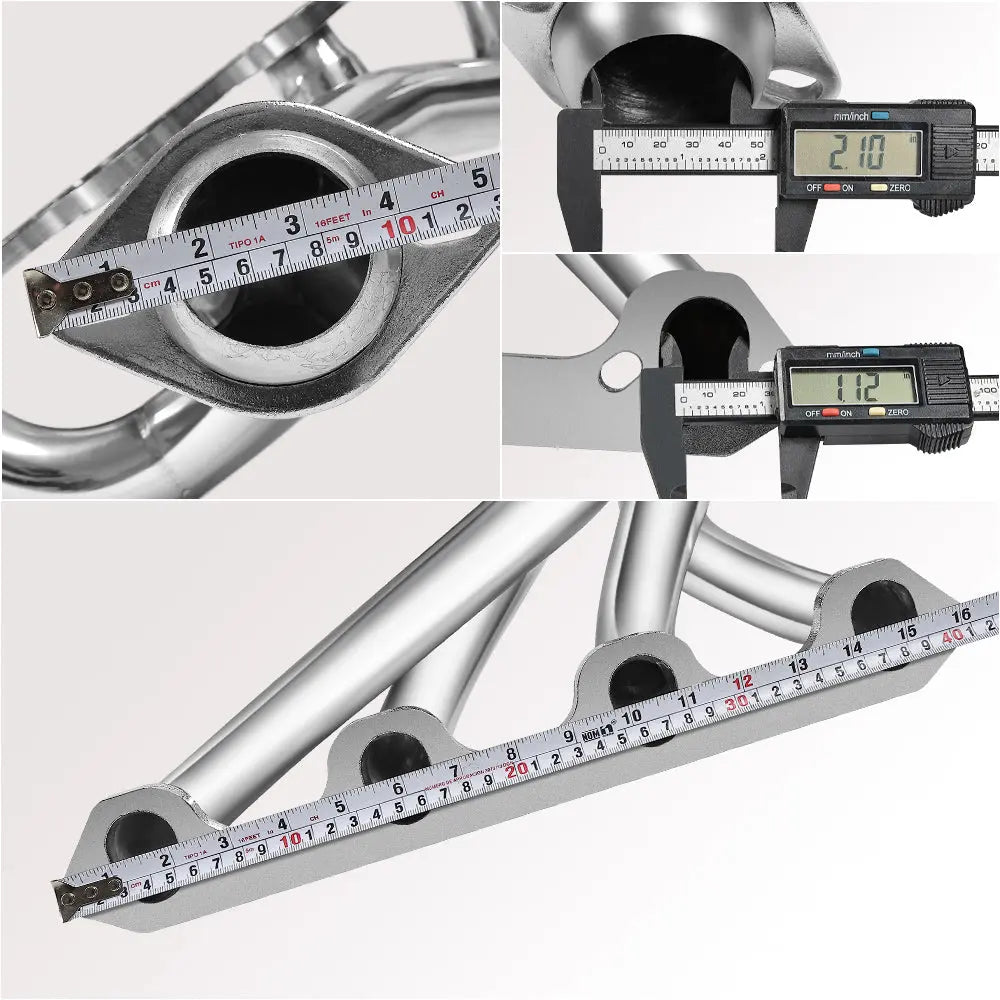

| Inlet | 1.50 × 1.25 in., oval |
| Outlet | 2.75 in. |
| Collector diameter | 2.5 in. |
| Tube wall | 16 gauge (1.5 mm) |
| Head flange thickness | 3/8 in. (9.5 mm) |
| Oxygen sensor reference | Pre- and post-catalyst positions. Verify bung locations and how your sensors connect before ordering. |
| Collector connection | Clamp-on |
| Fitment type | Performance/custom |
| Vehicle position | Front |

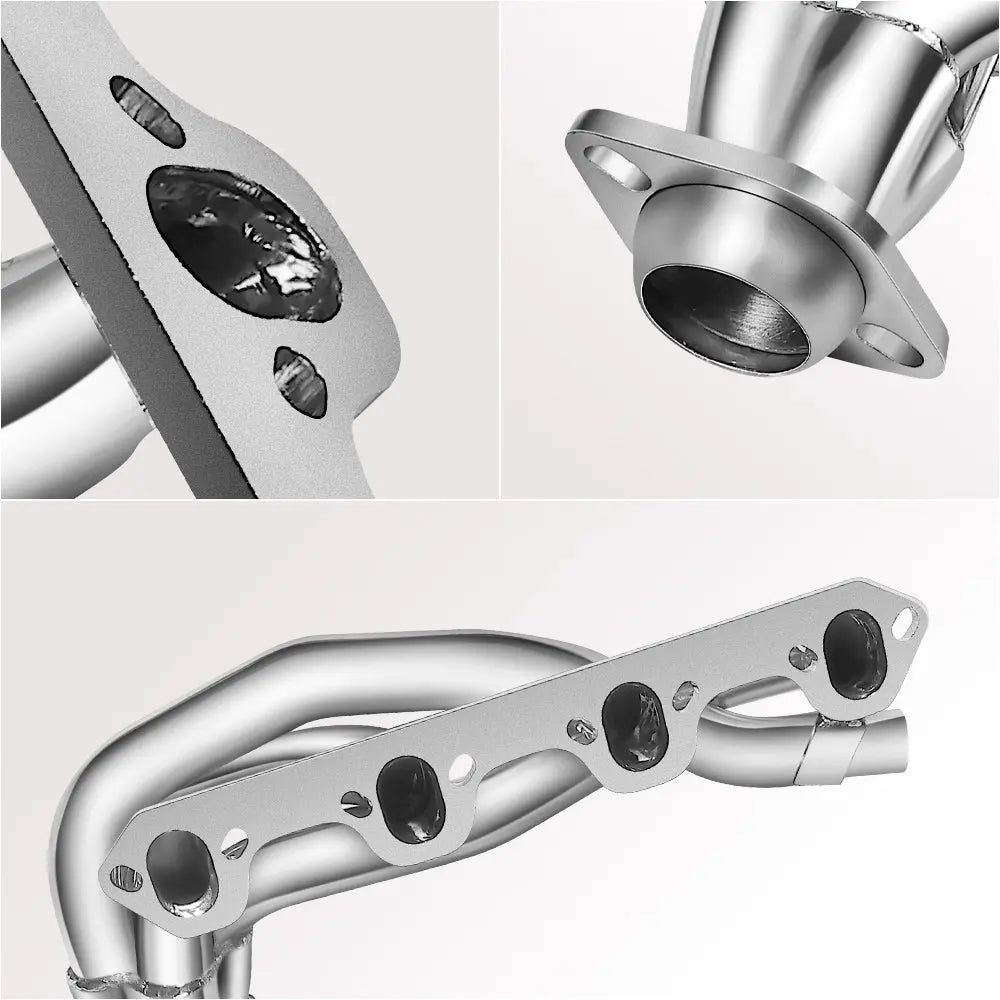

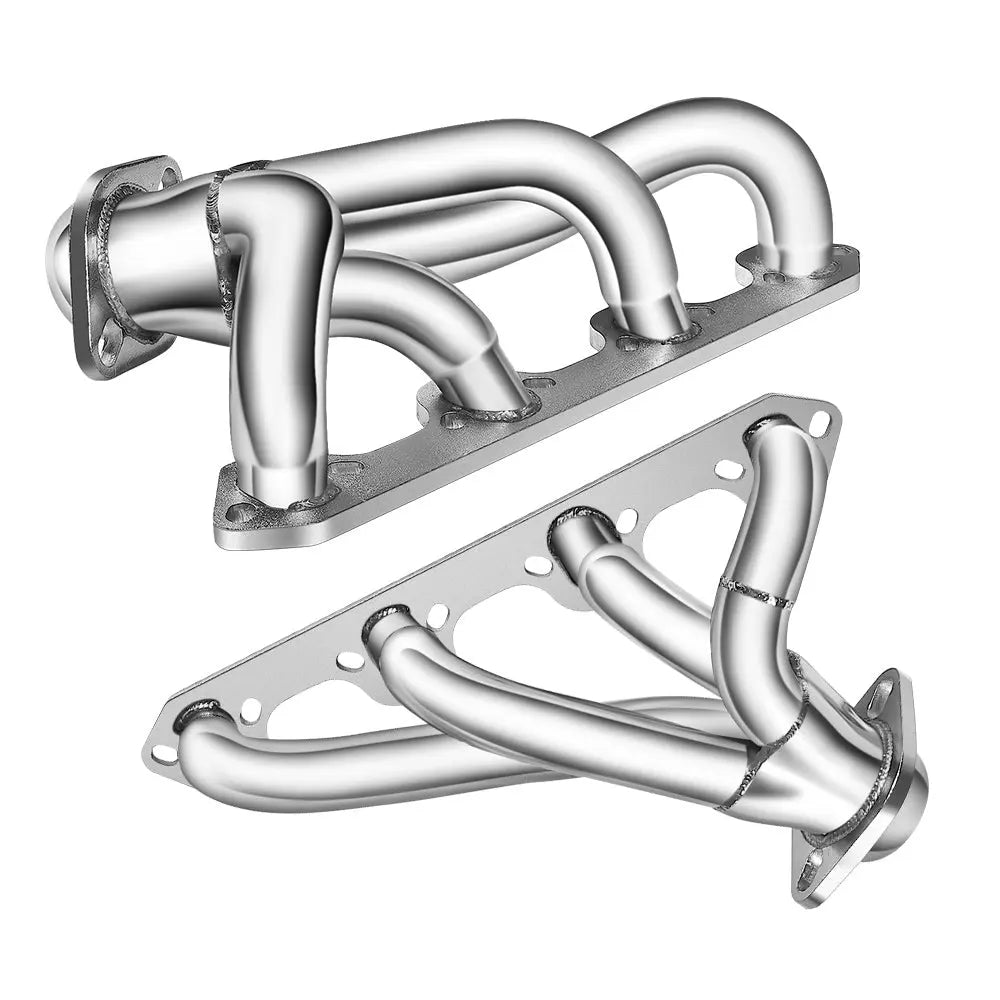

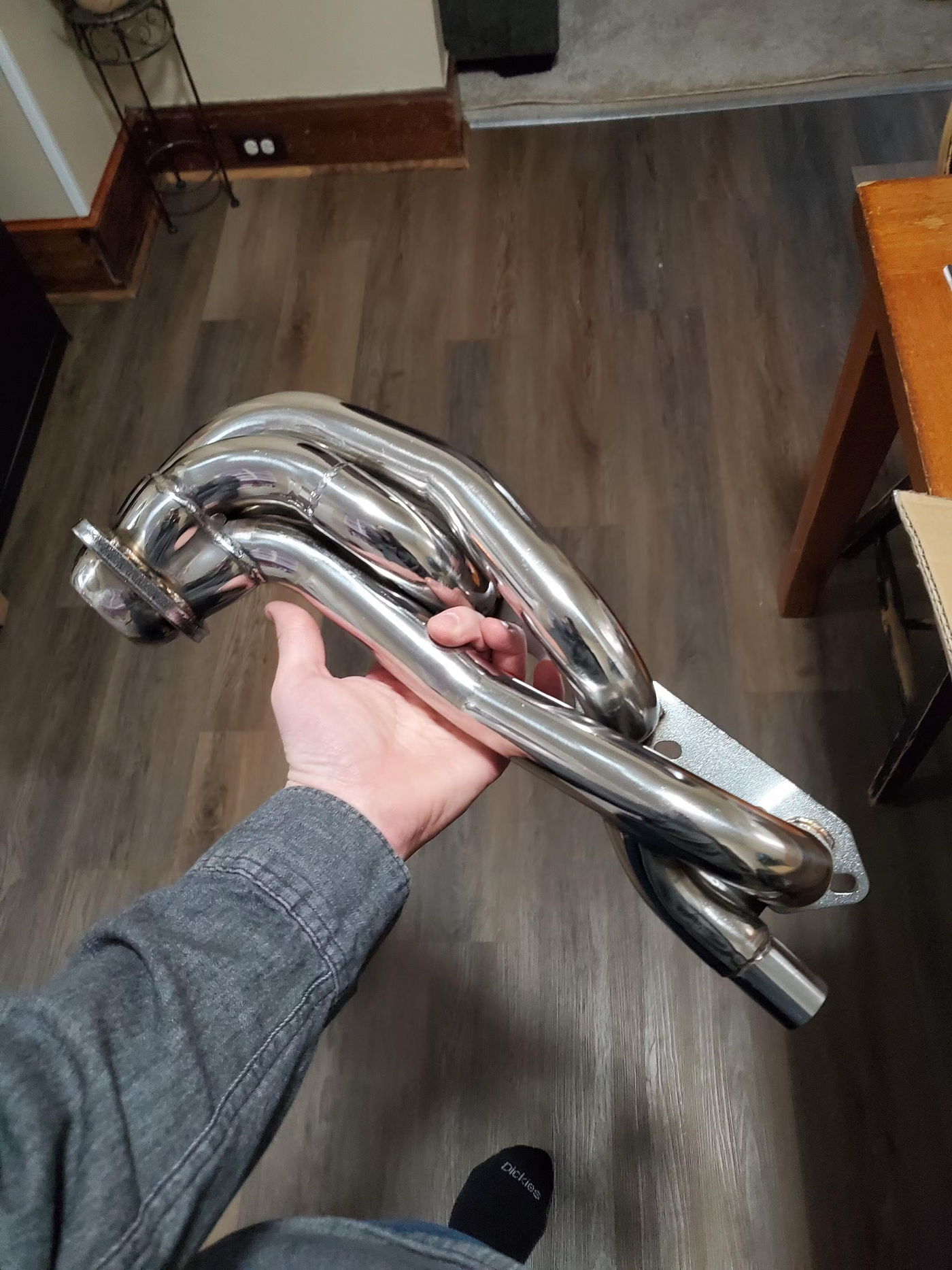

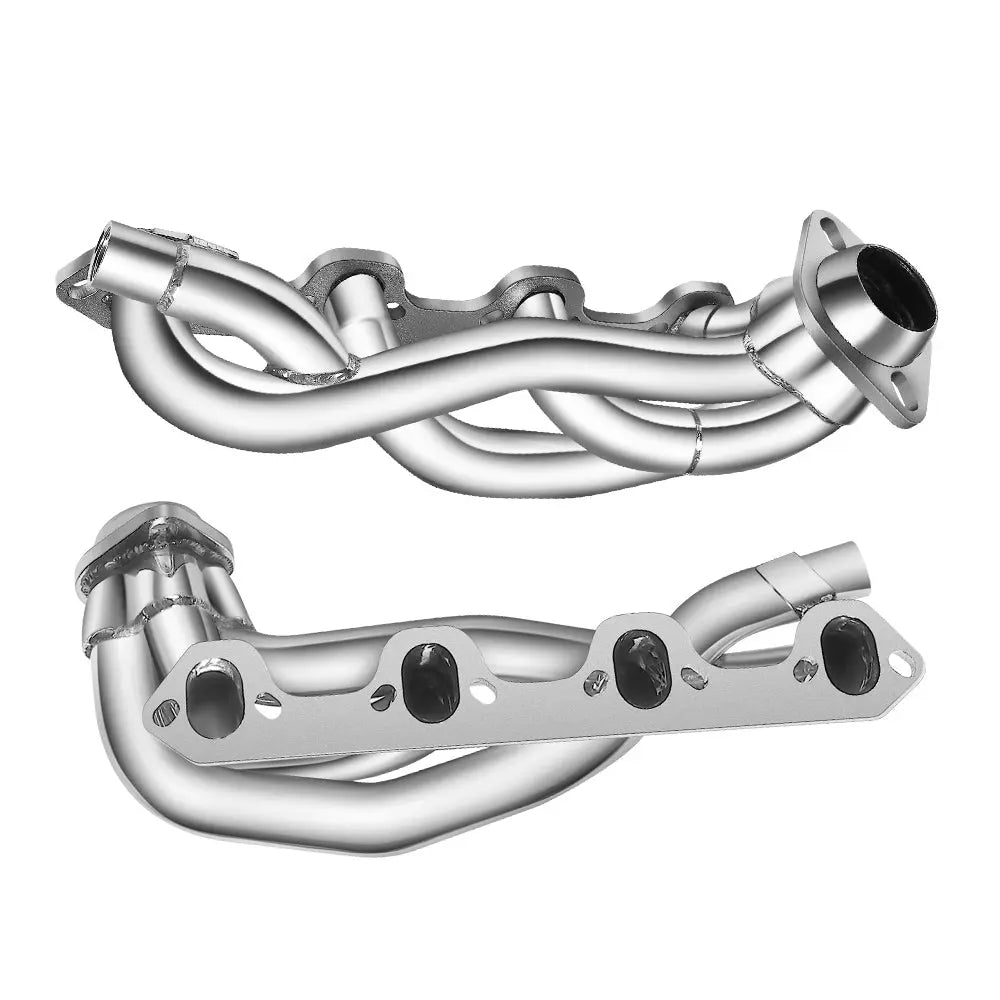

Short Tube (FLES08279)
| Specification | Details |
|---|---|
| Model | ES08279 (EH28947X) |
| Material | T304 stainless steel |
| Finish | Mirror-polished |
| Collector diameter | 2.5 in. nominal. Verify the mating connection before ordering. |
| Head flange thickness | 7/16 in. |
| Outlet flange thickness | 3/8 in. |
| Oxygen sensor locations | 1 |
| Mounting style | Bolt-on |
| Vehicle position | Front |
| Condition | New |
Brand: Flashark. Quality system reference: ISO 9001:2000.

Use the Fitment table above for current model-year and drivetrain details.
Key Features
- Shorty layout: Compact tubes and bolt-on mounting suit stock or mildly modified builds where daily response, low-RPM torque and simpler routing matter.
- Long tube layout: Longer primaries are designed to improve exhaust scavenging at higher RPM. The collector connection and downstream routing should be checked on performance builds and towing setups.

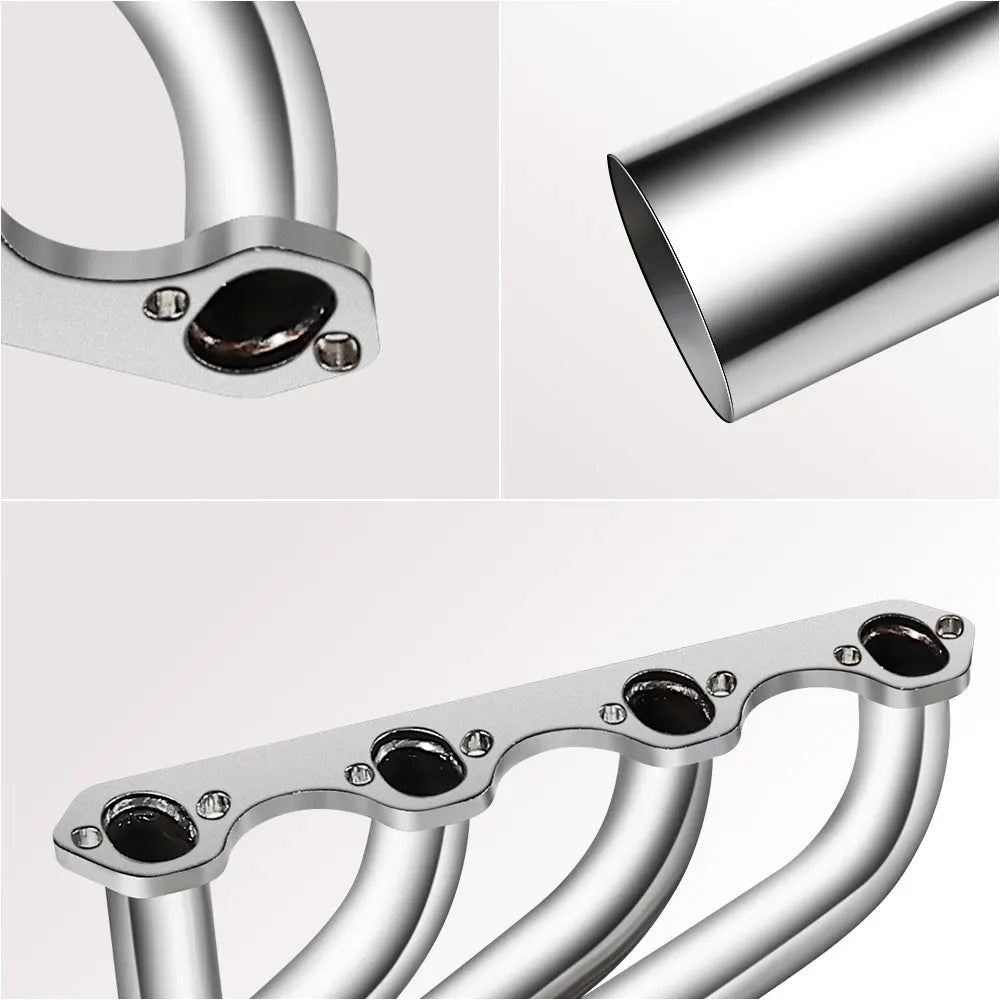

- Polished stainless steel: Stainless construction helps resist heat and corrosion, and both styles give you a manifold replacement that can serve as the starting point for further exhaust upgrades.
- Engine-specific exhaust routing: Designed to improve flow, reduce backpressure and sharpen throttle response compared with the factory manifolds. Gains depend on the setup. Flashark describes potential gains of up to 40 hp depending on the application.
- Sound and power band: The long tube layout is aimed at a deeper exhaust note and higher-RPM power. The shorty layout is aimed at a milder note and low-to-midrange response.

Contact Flashark for current warranty terms by SKU.
What Is Included

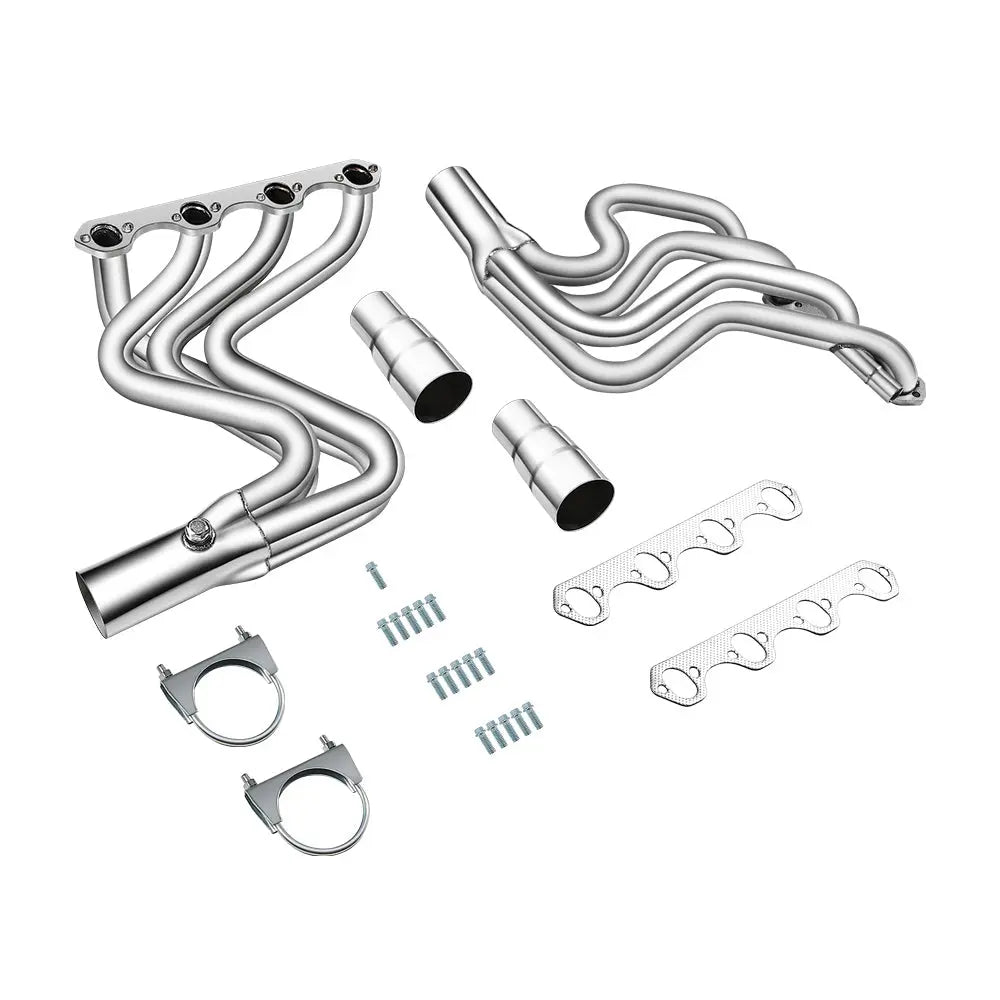

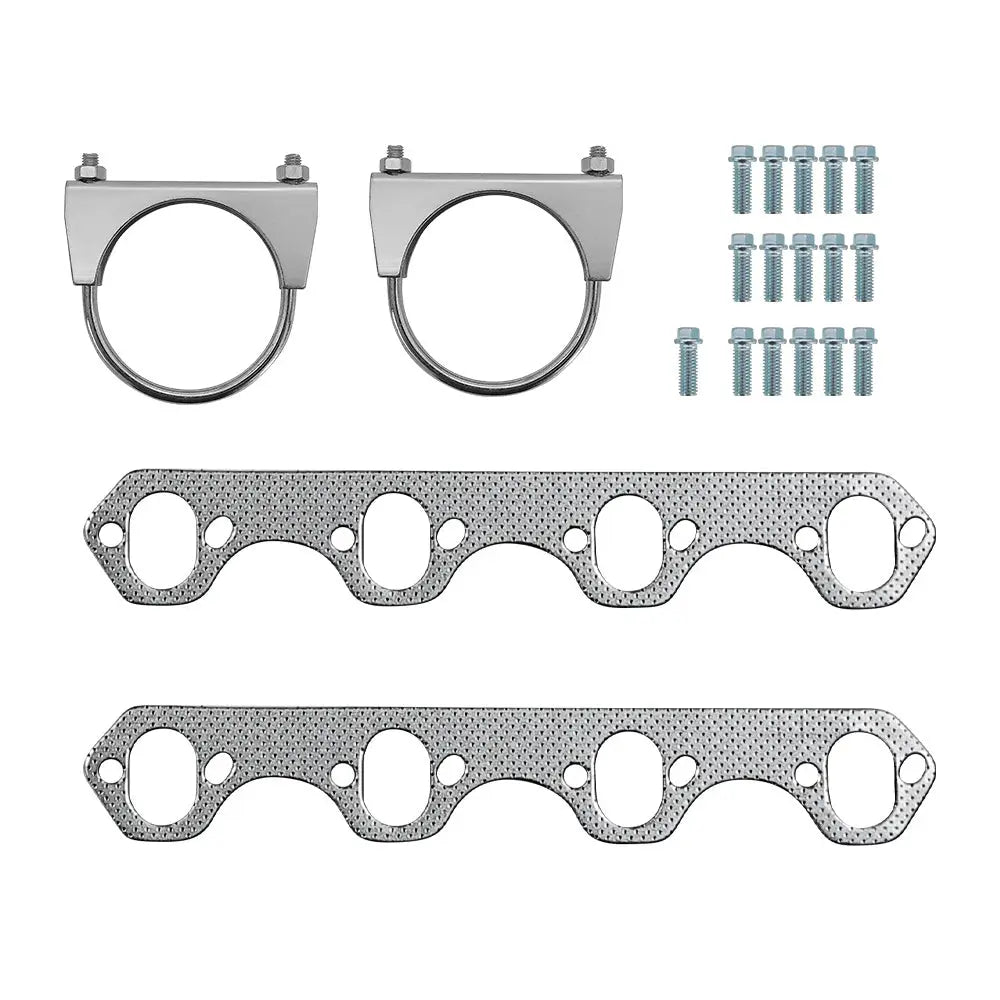

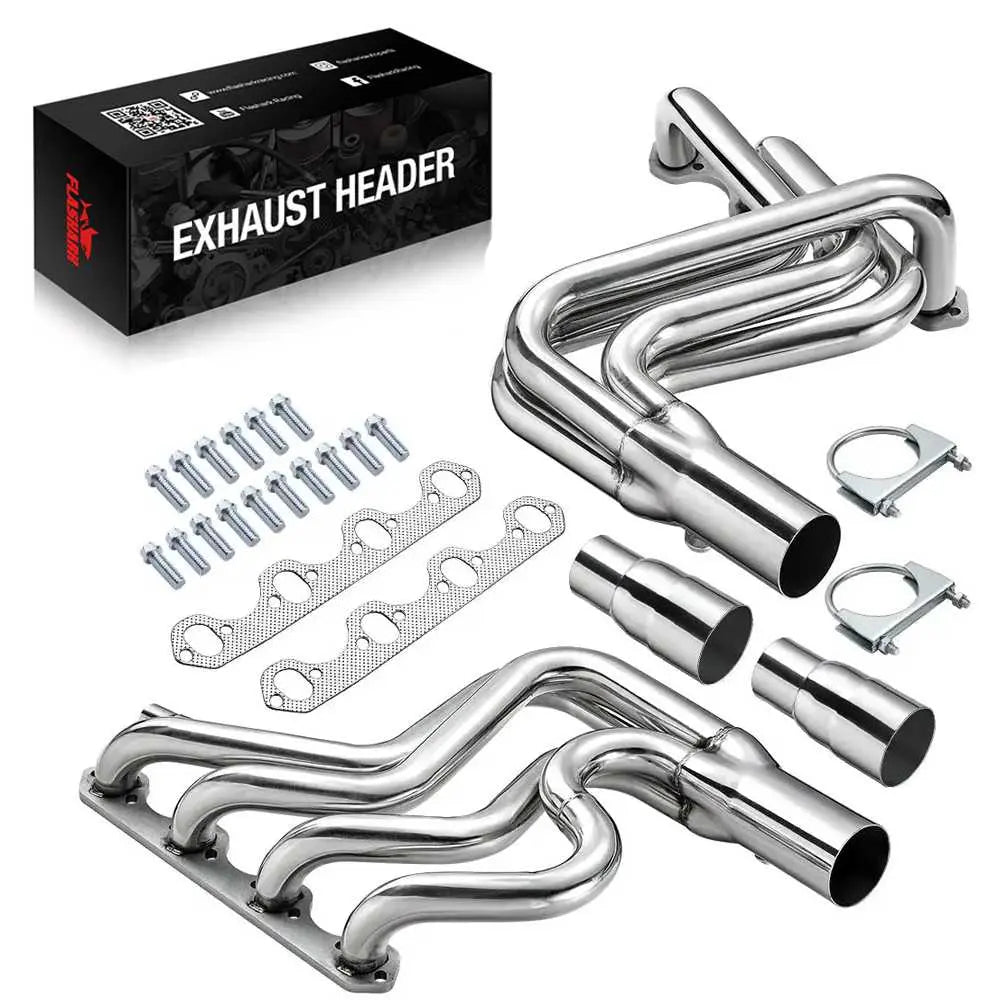

- Long Tube: Left and right headers, collector reducers and band clamps, header gaskets and mounting bolts.

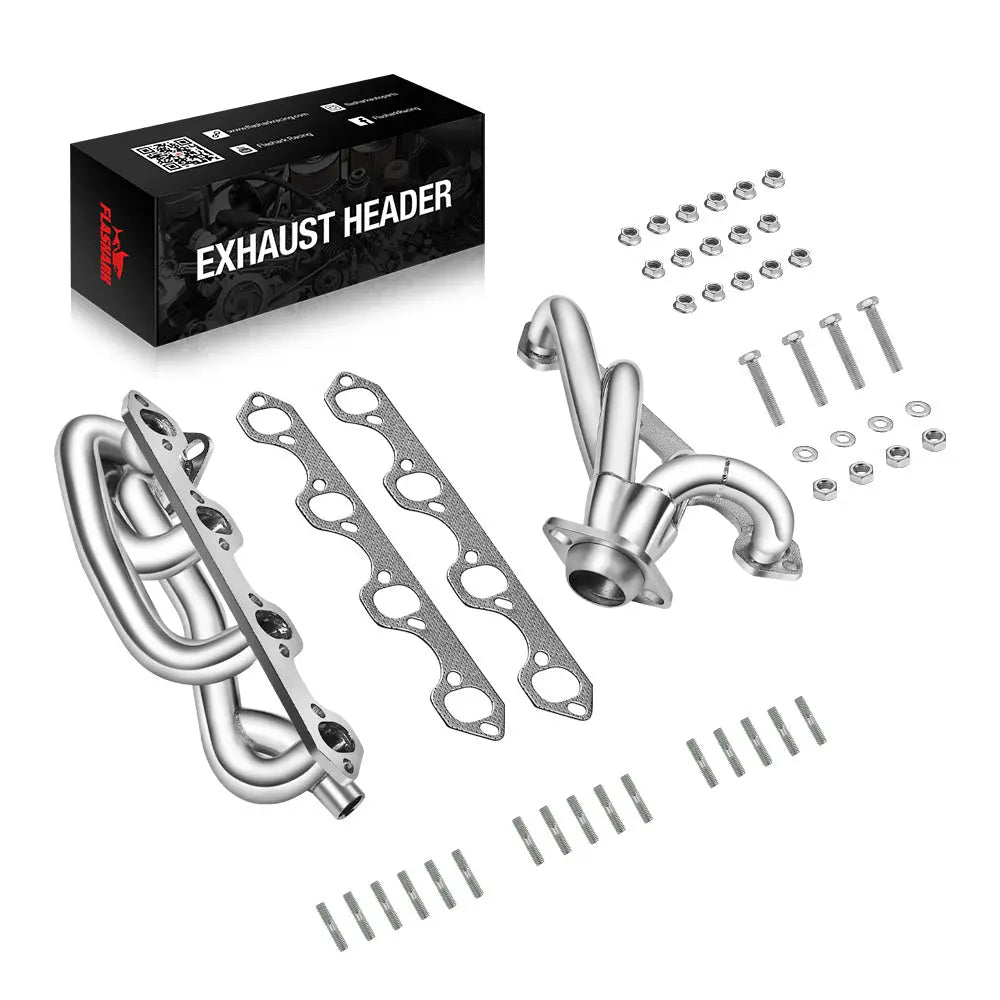

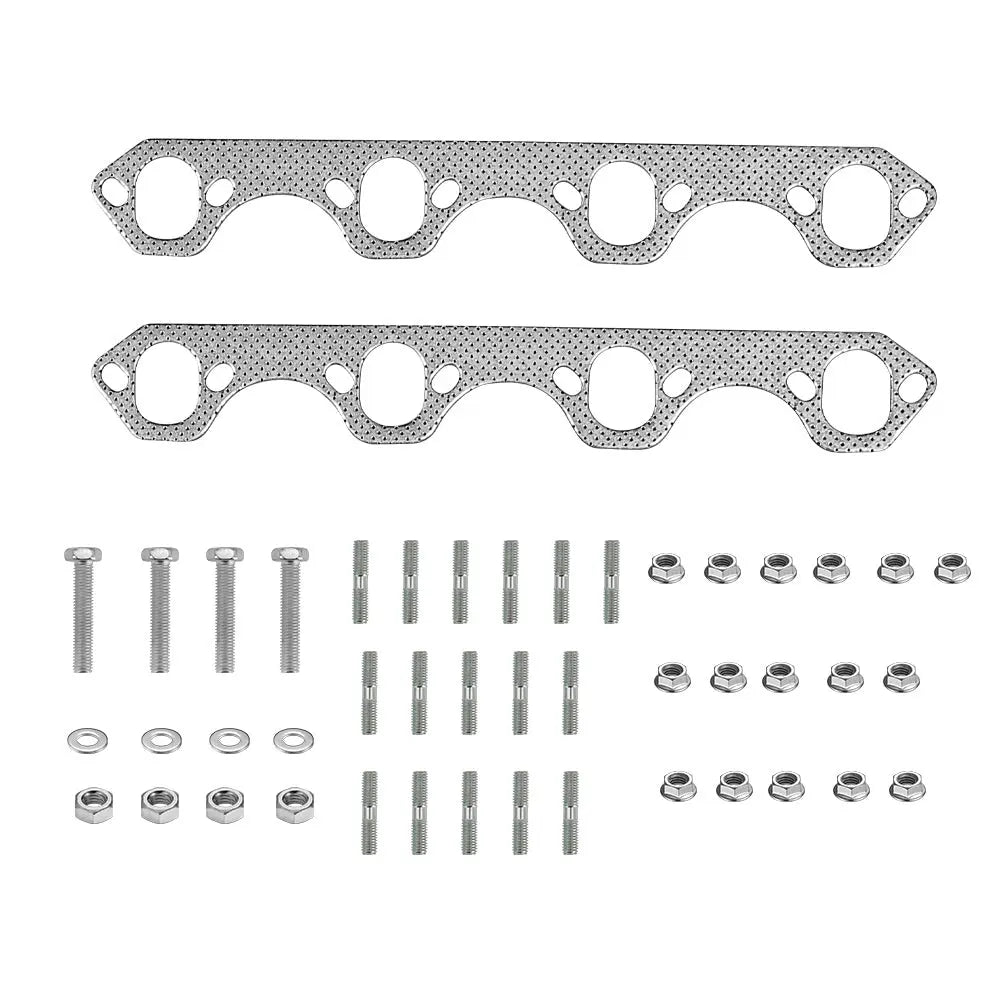

- Short Tube: Left and right headers, metal header gaskets and mounting fasteners.
Check Before Ordering
- Confirm the 5.8L OHV V8 and drivetrain. The listed combinations are F-150 and F-250 RWD and Bronco 4WD.
- For a 1996 vehicle, choose Long Tube or confirm Short Tube availability for your exact configuration with Flashark.
- Check the outlet against your existing exhaust before fitting either option. Long Tube uses a clamp-on connection and may require routing adjustments downstream.
- Check oxygen sensor positions, catalyst connections and any EGR or air-injection connections on your vehicle before choosing a style. Verify the emissions requirements that apply where you drive.
Shipping & Returns
Free U.S. shipping: Orders typically arrive in 5–10 business days. Additional shipping fees apply to remote areas and Canada.
30-day returns: Contact Flashark within 30 days of delivery and ship eligible items back within that window. Keep items unopened and unused in their original packaging. Flashark covers return shipping for verified quality issues.
Worry-Free Delivery: Optional protection is available at checkout for eligible loss, delay or transit damage claims.
Fitment & Compatibility
Choose Long Tube (FLES08244) for the full range above. Short Tube (FLES08279) is listed by SKU for 1987–1995. For a 1996 vehicle, contact Flashark to confirm the Short Tube option before ordering.Fitment
Years
Ford model
Engine
Drivetrain
1987–1996
F-150
5.8L OHV V8
RWD
1987–1996
F-250
5.8L OHV V8
RWD
1987–1996
Bronco
5.8L OHV V8
4WD
Product Installation Guide & FAQ
A1: Select Long Tube, SKU FLES08244, for the 1995 Ford F-150 with the 5.8L OHV V8 and RWD. Check your downstream exhaust connection and sensor locations before ordering. A2: Both options list the 1990 and 1993 Ford F-150 with the 5.8L OHV V8 and RWD. Verify the drivetrain and exhaust layout on your truck. A3: Choose Long Tube for a 1996 F-250 RWD or Bronco 4WD with the 5.8L OHV V8. Contact Flashark to confirm Short Tube for your specific 1996 vehicle before ordering. A4: Choose Short Tube for a compact bolt-on layout and low-to-midrange response. Choose Long Tube for higher-RPM performance if your build has room for the longer layout and clamp-on collector. A5: The Short Tube option is designed for bolt-on installation. The Long Tube option uses a clamp-on collector and may need adjustments to downstream routing. Confirm the mating connection and available space on your vehicle. A6: Short Tube lists one oxygen sensor location. For Long Tube, check how your pre- and post-catalyst sensors connect to the exhaust. Verify catalyst and emissions equipment compatibility for your vehicle and local requirements. A7: Yes. Both include a header pair, gaskets and mounting fasteners. The Long Tube option also includes collector reducers and band clamps. A8: Both options use polished stainless steel. The Short Tube option specifies T304. A9: Flashark describes potential gains of up to 40 hp depending on the application. The result depends on your engine and exhaust setup. A10: Contact Flashark with your SKU for the current warranty term and coverage. Flashark factory-tests the headers against OEM specifications and provides product support.Ford F-150, F-250 & Bronco 5.8L Header Installation Guide
Pre-Installation Checklist
Installation Steps Overview
Post-Installation Verification
Troubleshooting
Ford F-150, F-250 & Bronco 5.8L Shorty and Long Tube Header FAQs
Q1: Which long tube headers fit a 1995 Ford F-150 5.8L?
Q2: Will these headers fit a 1990 or 1993 Ford F-150 5.8L?
Q3: Which option should I select for a 1996 Ford F-250 or Bronco?
Q4: How do I choose between shorty and long tube headers?
Q5: Will the headers connect to my existing exhaust?
Q6: What should I check for oxygen sensors and emissions equipment?
Q7: Do both options include gaskets and hardware?
Q8: What are the headers made from?
Q9: How much horsepower can I expect?
Q10: Where can I confirm warranty coverage?
