Flashark 1988, 1989, 1990, 1991 Honda ED Civic CRX DA Acura Integra Coilover Shock Absorbers Struts 4PCS (Purple)
Fitment:
1988-1991 Honda Civic EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)
1988-1991 Honda CR-X ED EE EF Rear fork type bracket model only (ED8\ED9\EE6\EE8\EF6\EF7\EF8)
1992-1995 Honda Civic EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)
1992-1995 Honda CR-X del Sol EG (EG1) Rear fork type bracket model only
1996-2000 Honda Civic EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)
1990 -1993 Acura Integra DA DB Rear fork type bracket model only
1994-2001 Acura Integra DC2 DC4 Rear fork type bracket model only
Specifications:
| Specification |
Details |

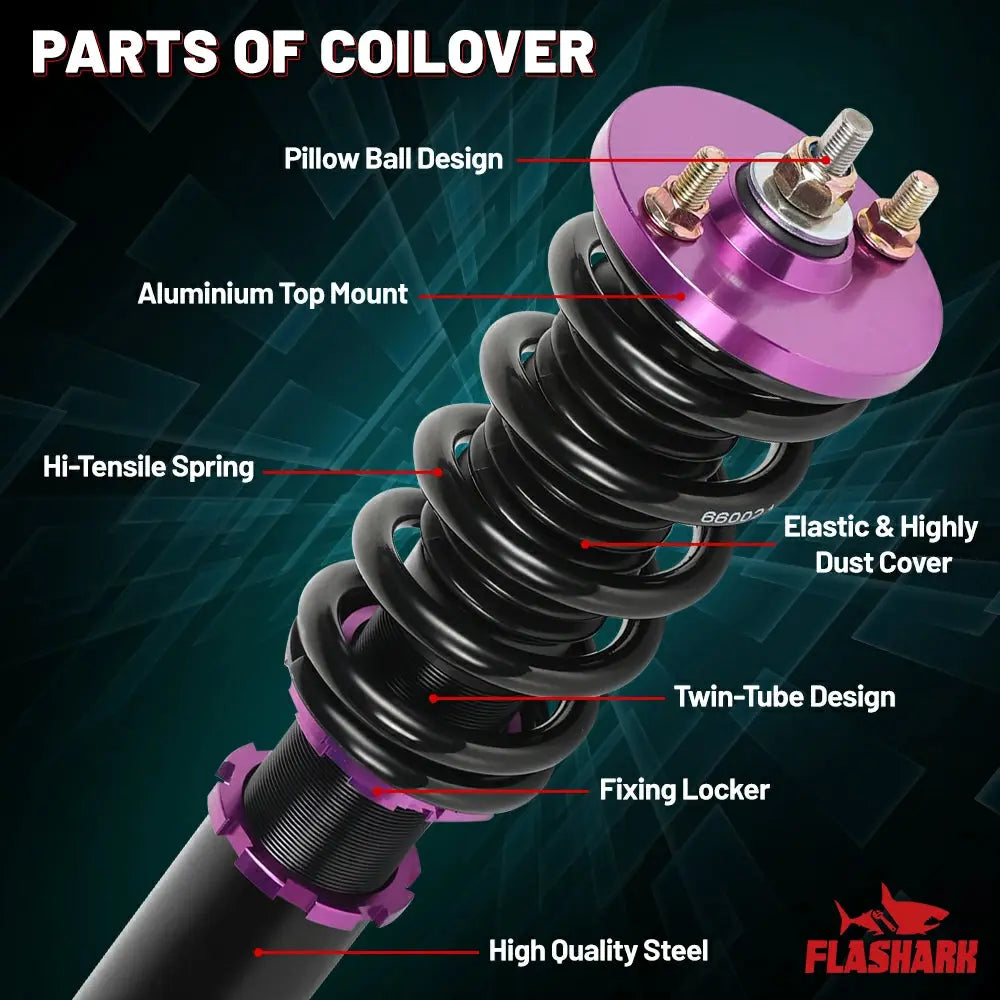

| Top mounts |
Pillow ball top mount with camber plate front, standard rubber top mount rear |
| Quantity |
Complete coil overs 2 front and 2 rear, a pair of wrenches for height adjustment |
| Spring rate Front |
8kg/mm (448 lbs/in) |
| Spring rate Rear |
5kg/mm (280 lbs/in) |
| Spring length Front |
180mm |
| Spring length Rear |
234mm |
| Coilover overall length Front |
408mm - 531mm |
| Coilover overall length Rear |
472mm - 557mm |
| Damping |
24 levels rebound damping adjustable |
| Adjustable Height |
Yes, lowering 1" to 4" |
| Shock Type |
Twin tube |
| Spring Preload |
7-10 mm |
| Surface Materials |
Aluminum, Steel |
| Color |
Purple |
| Warranty |
2-year warranty for any manufacturing defect |
Flashark Coilover Struts Assembly, also called Coilover Shock Absorbers Struts, is designed for enthusiasts seeking the ultimate suspension upgrade with an elegant purple color. This high-quality strut offers adjustable ride height and advanced damping technology. Enjoy improved stability, reduced body roll, and enhanced cornering capabilities. With its direct-fit design and easy installation process, it's the perfect choice for car enthusiasts looking to elevate their driving experience.
Features
-

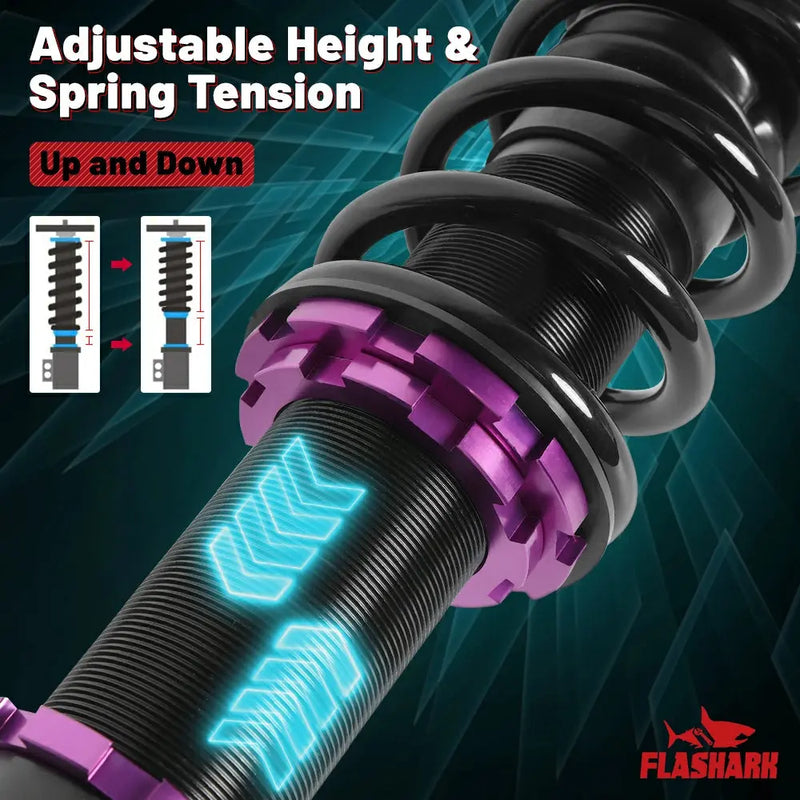

Adjustable Performance: Front Spring rate: 8 kg/mm (448 lbs/in), Rear Spring rate: 7 kg/mm (392 lbs/in). The Coilover Struts is able to Independently adjust lower mount allows precise adjustment of the vehicles height without affecting the stroke. You can according to personal needs to adjusted to personal satisfaction device within a certain range.
-
Function: Improve steering performance, prevent cornering understeer and oversteer, reduce cornering roll. Improve braking performance, reduce brake overshoot, shorten braking distance, improve driving safety. Easily installed using the right tools.
-
Advantage: The struts has an adjustable ride height. moderate bouncing, and high-comfortable shock adjustments which provide owners with positive road feedback without sacrificing too much comfort and a better ride experience.
Package Includes:

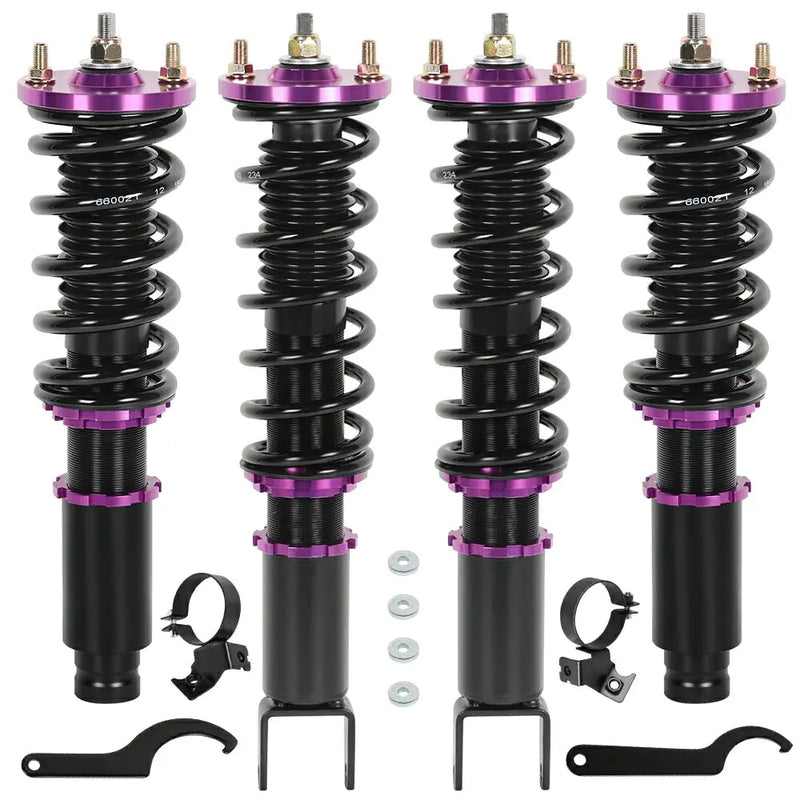

2 x Front Coilover
2 x Rear Coilover
2 x Stainless Steel Wrench
Notice：
- No instruction included; Professional installation & alignment suggested.
- Please check our store for other auto parts you may be interested in.
- Please feel free to contact us for whatever we can help.
