Product Specifications
2013–2015 Chevrolet Malibu 2.0L/2.5L and 2013–2014 2.4L Coilover Kit
Set your Malibu's ride height and tune suspension response with this adjustable front and rear suspension kit. These Malibu coilovers offer 32-way rebound damping adjustment for the 2013–2015 Chevrolet Malibu 2.0L and 2.5L, plus the 2013–2014 Malibu 2.4L.
Specifications
| SKU | FLOS08965FL |
|---|---|

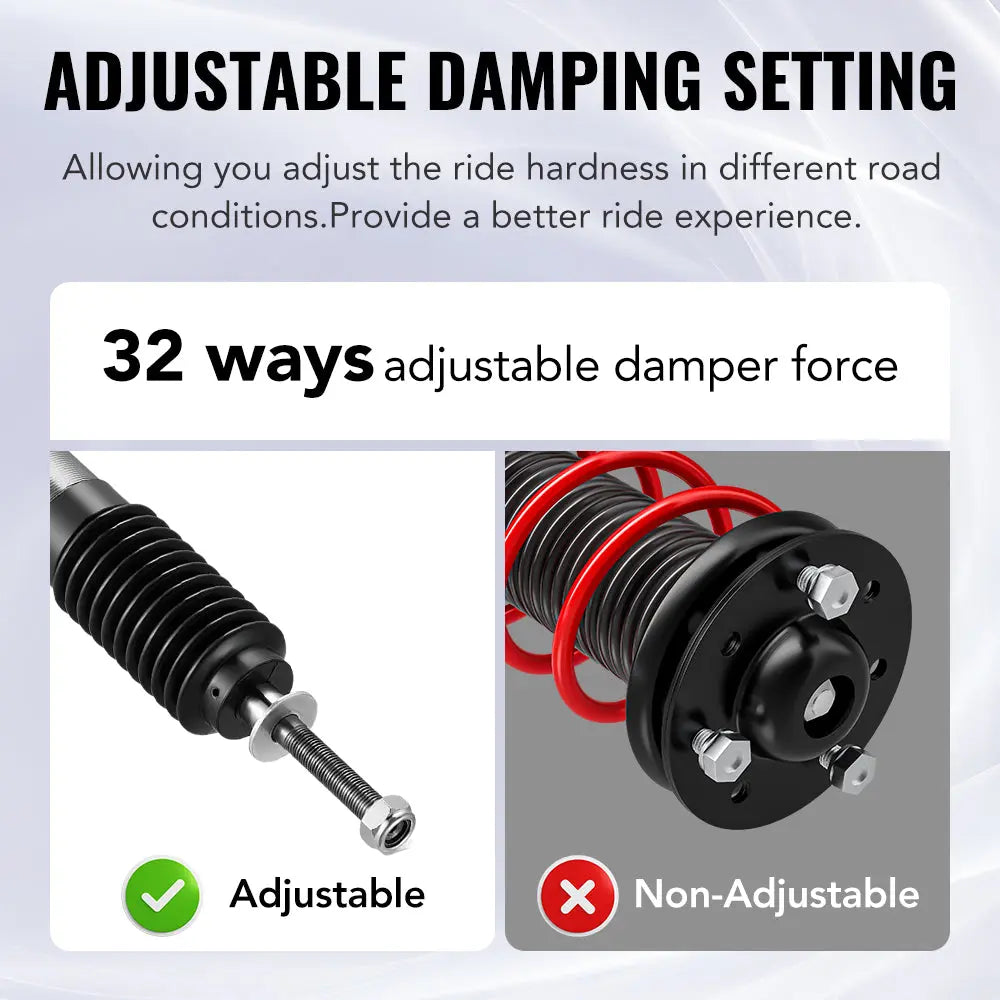

| Damping adjustment | 32-way rebound adjustment |

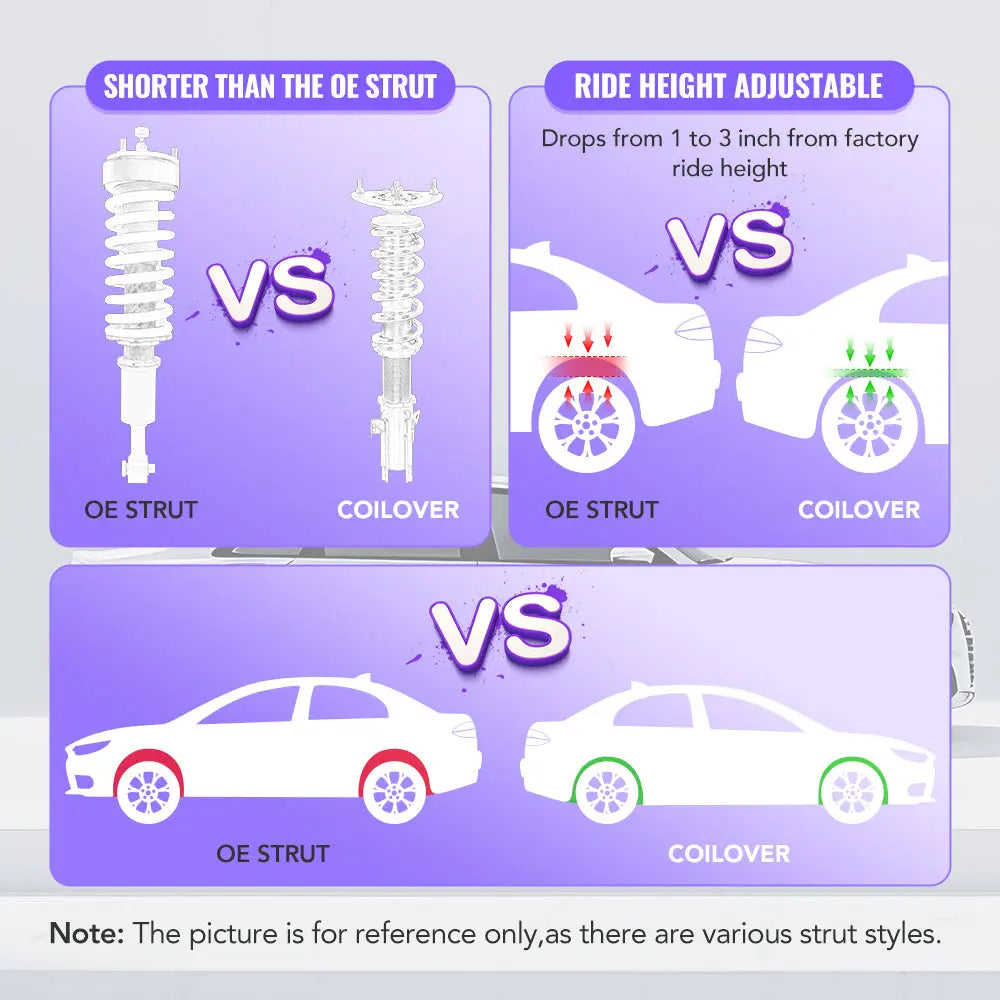

| Height adjustment | Approximately 2–4 in. lowering range |

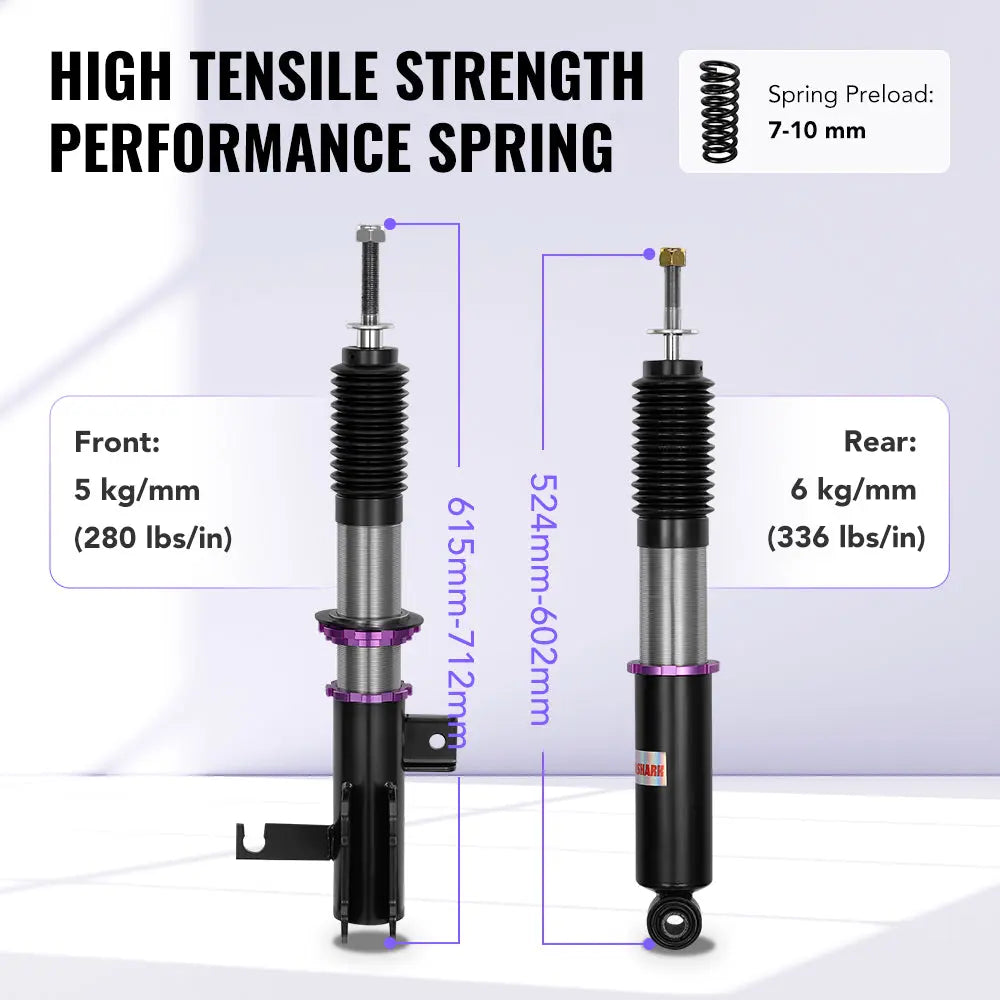

| Front spring rate | 5 kg/mm (approximately 280 lb/in.) |
| Rear spring rate | 6 kg/mm (approximately 336 lb/in.) |
| Front spring length | 213 mm |
| Rear spring length | 222 mm |
| Front assembly length | 615–712 mm |
| Rear damper length | 524–602 mm |
Key Features

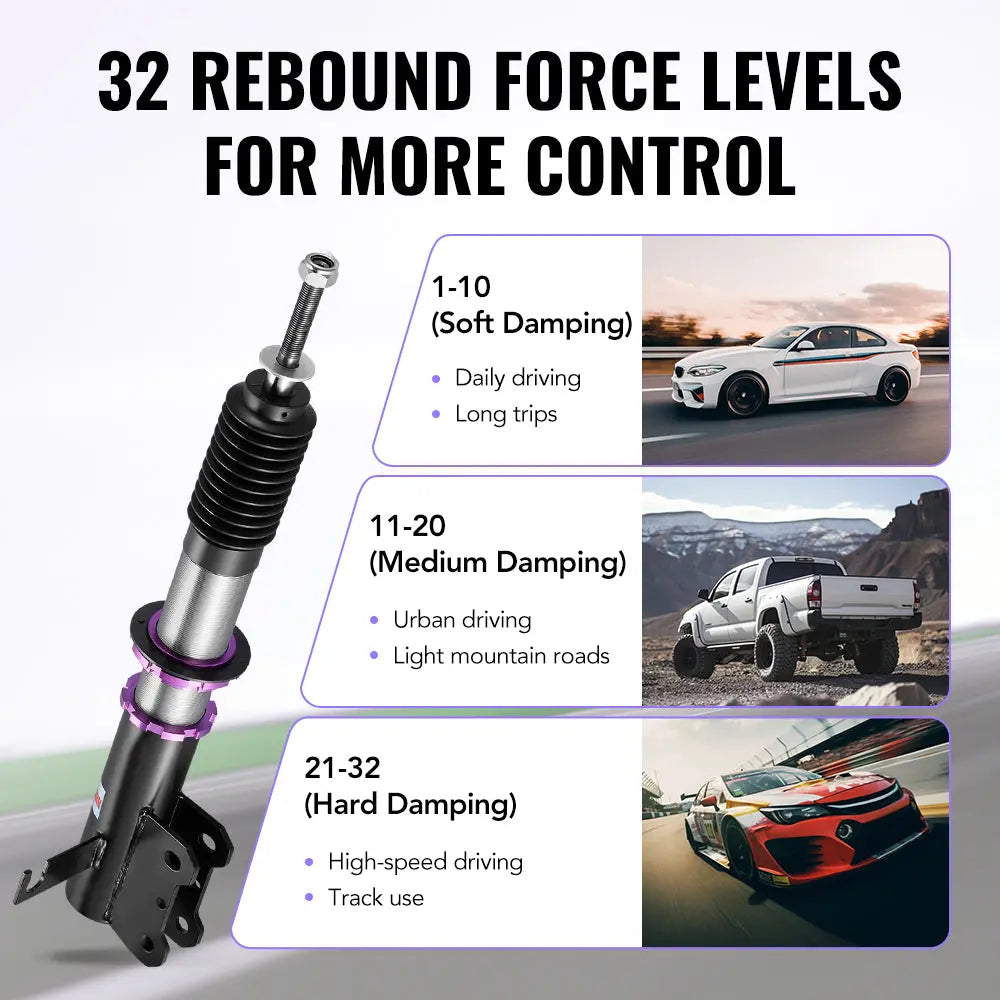

- Adjustable rebound: Tune the damping response across 32 settings to suit your preferred setup.
- Independent height adjustment: Set the stance separately from spring preload.

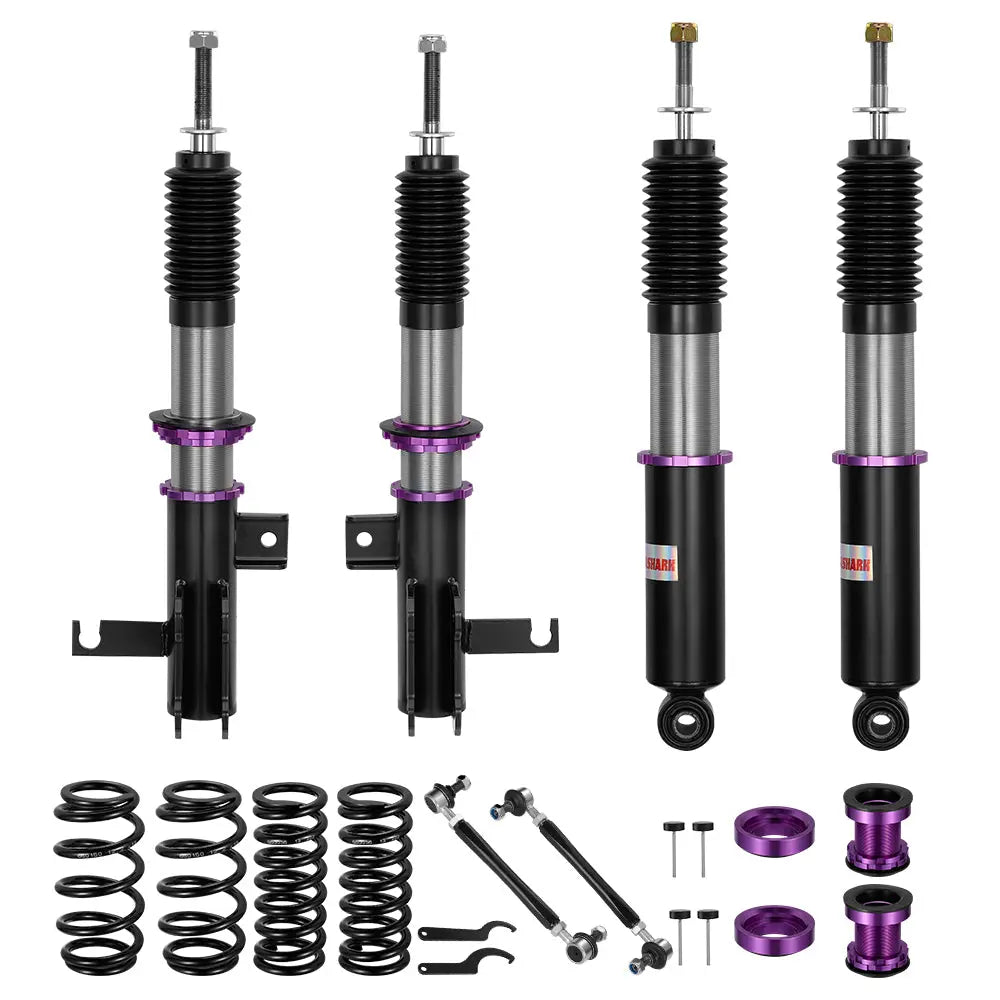

- Front and rear suspension coverage: This four-corner setup provides adjustable suspension at both axles.
- Rubber top mounts: Rubber mounts are designed to help isolate vibration.

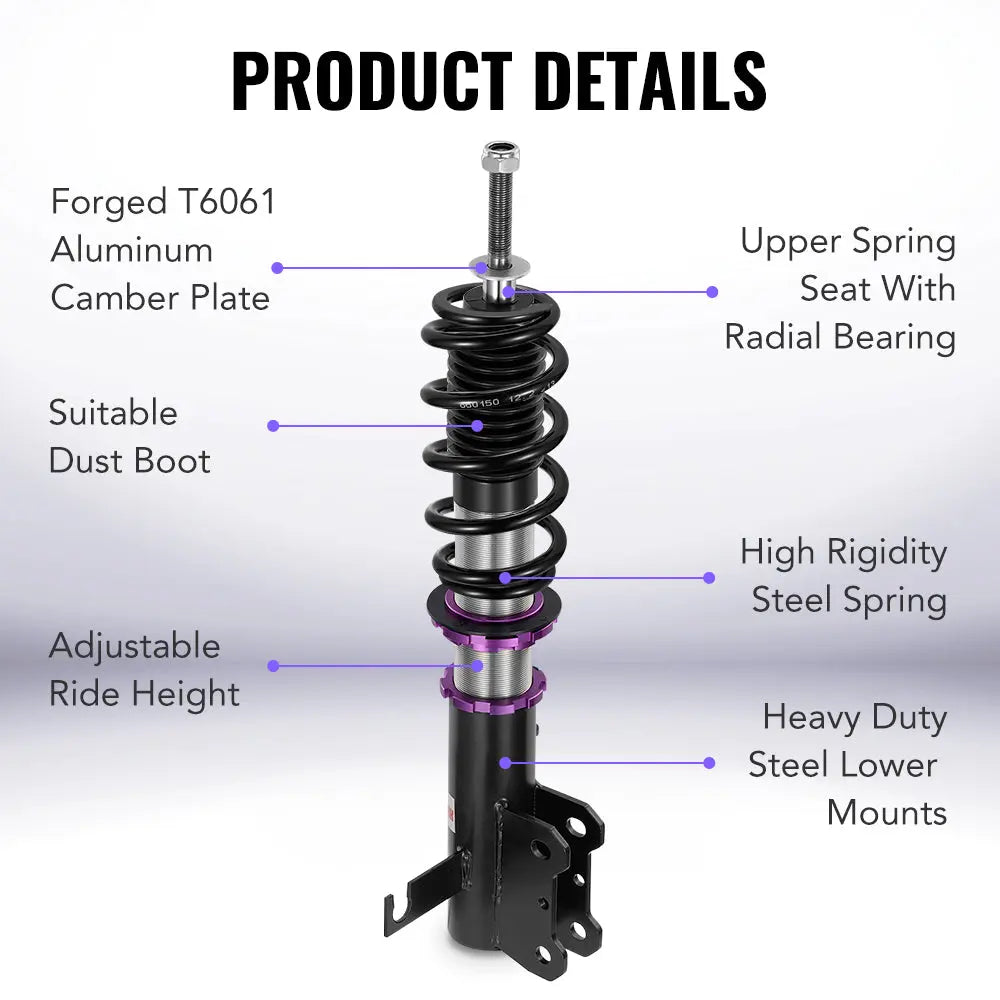

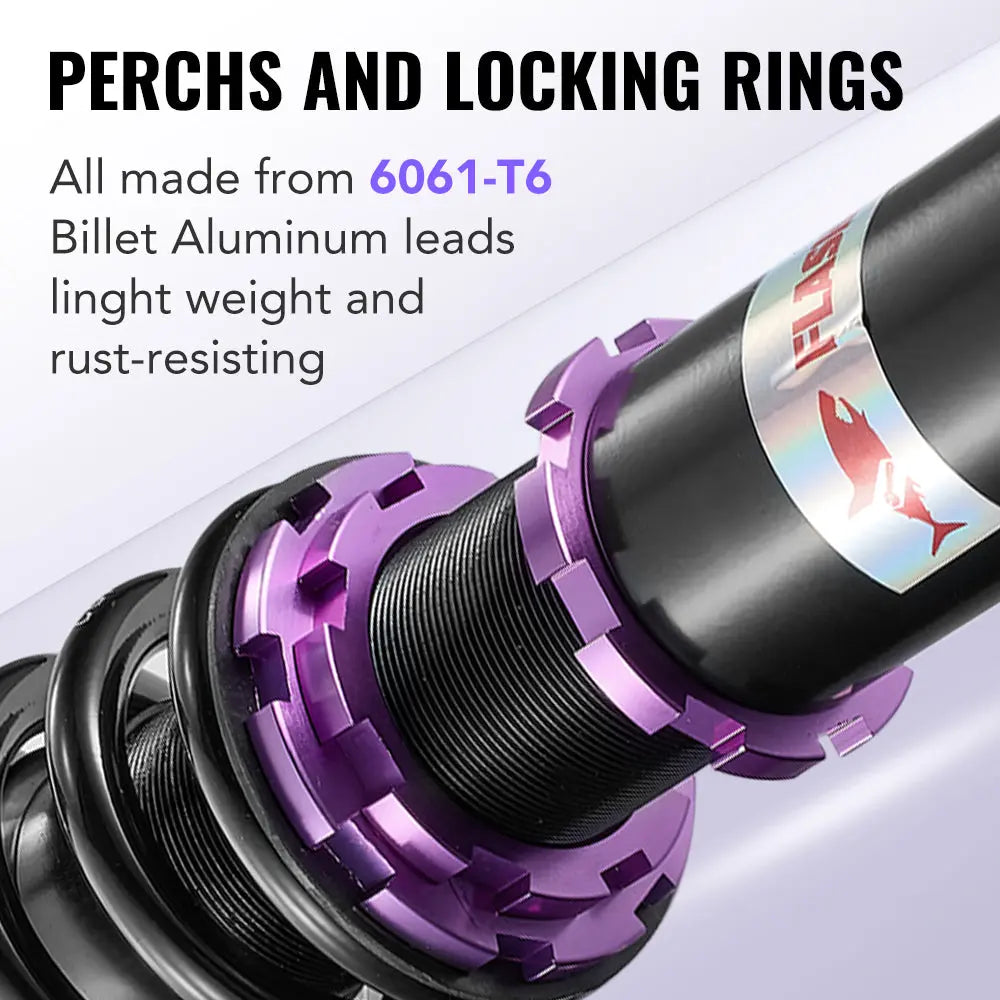

- Metal construction: Aluminum and steel components include 6061-T6 aluminum mounts, collars, and spring perches.

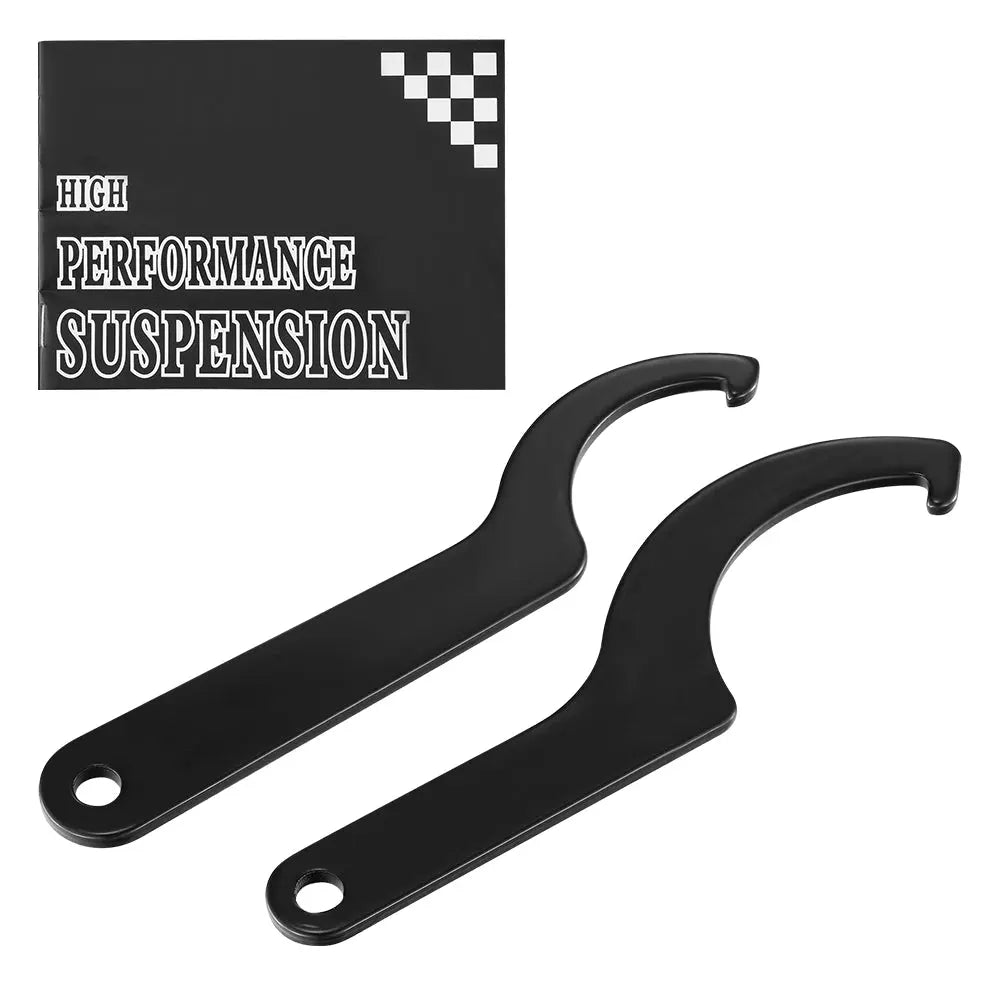

- Height-adjustment tools: Spanner tools support ride-height adjustments.

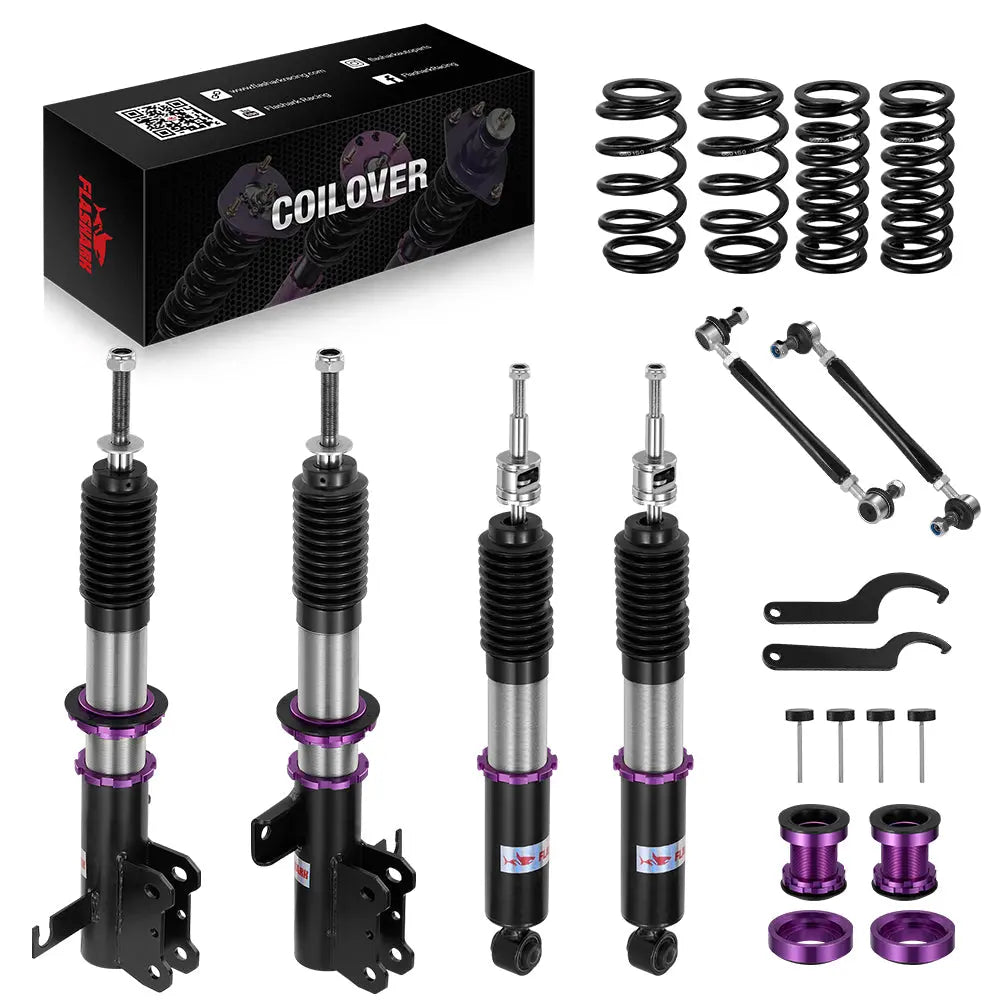

What's Included and Not Included
This front and rear suspension kit includes height-adjustment tools. Confirm the exact component count, rear spring and damper arrangement, and any original parts that must be reused before ordering or installation.
Check Before Ordering
- Match your vehicle's year, model, and engine to the Fitment table. The 2.4L L4 is included for 2013–2014 only.
- Confirm your vehicle's suspension configuration, mounting points, and any original electronic or adaptive damping equipment before ordering.
- Check wheel, tire, brake, and fender clearance at the intended ride height.
- Have the installer set spring preload and ride height using the instructions for this exact kit, then arrange a professional alignment and recheck clearances and fasteners.
