Coilover Shock Absorbers Struts 4PCS for 2006-2009 VW GTI/ 2003-2007 Golf MK5
Restore a more controlled, confident ride while gaining the freedom to set the stance for daily driving or spirited road use. This 4-piece coilover shock absorber and strut kit is designed for 2006-2009 VW GTI models with the 2.0T engine and compatible 2003-2007 Volkswagen Golf MK5 applications. It replaces worn VW shock absorbers with height-adjustable suspension components that help reduce body roll, sharpen steering response, and lower the vehicle by 2 to 4 inches.
Specifications:
Shock Type: Twin tube
Spring Preload: 7-10 mm
Adjustable Height: Yes, lowering 2" to 4"
Surface Materials: Aluminum, Steel
Spring Rate Front: 8kg/mm(448lbs/in)
Spring Rate Rear:5 kg/mm(280 lbs/in)
Spring length Front: 495mm
Spring length Rear: 564mm
Coilover overall length Front: 495mm-592mm
Coilover overall length Rear: 564mm-642mm
Features:
1. Twin-tube structure allows sufficient stroke within the shock absorber.
2. High-tensile performance spring—Sterss tested over 600,000 times, with spring distortion less than 0.04%. Plus, the special surface treatment improves durability and performance.

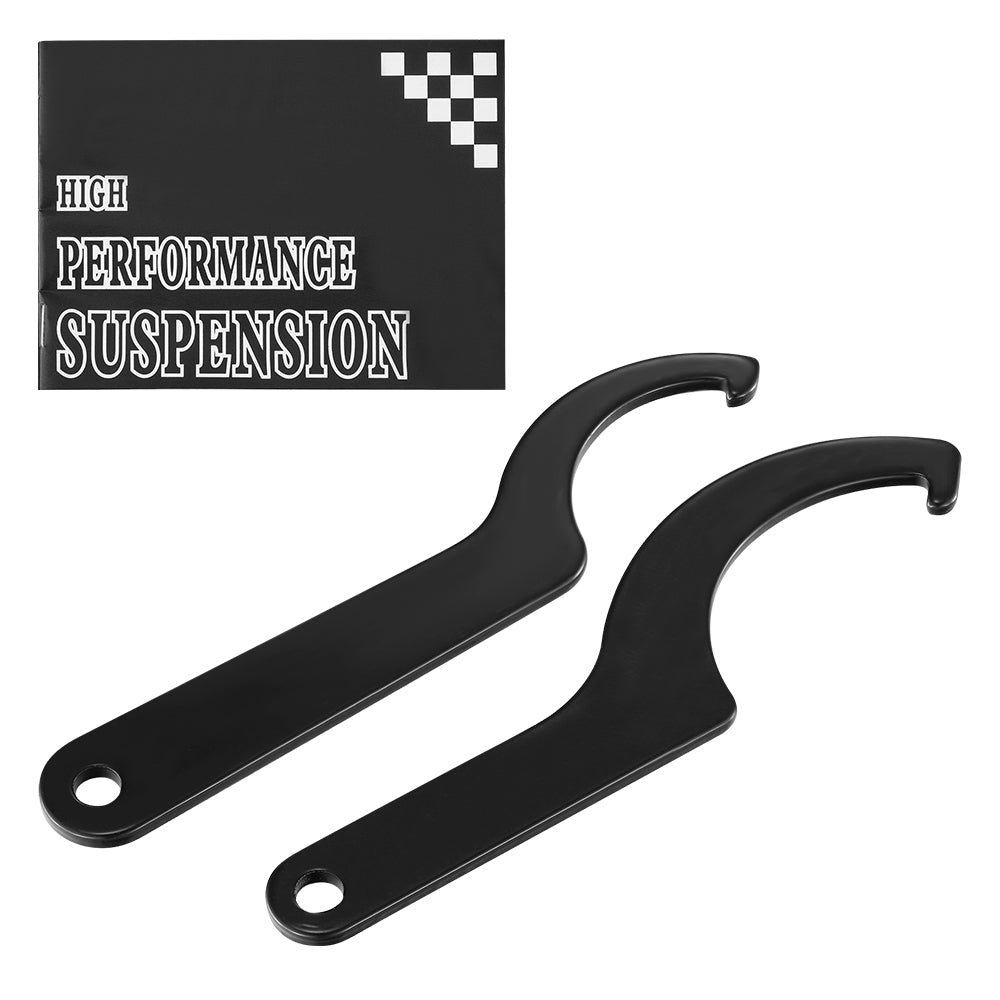

3. Height Adjustment tools included.
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

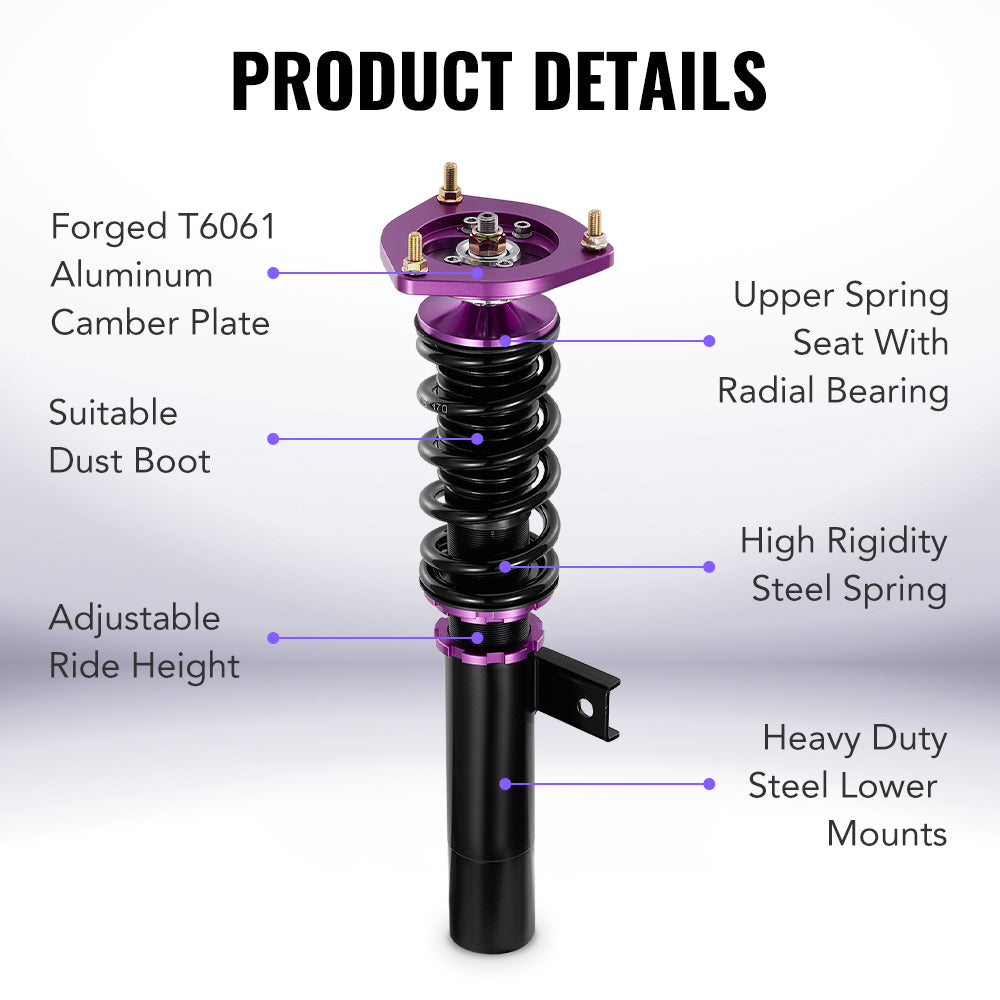

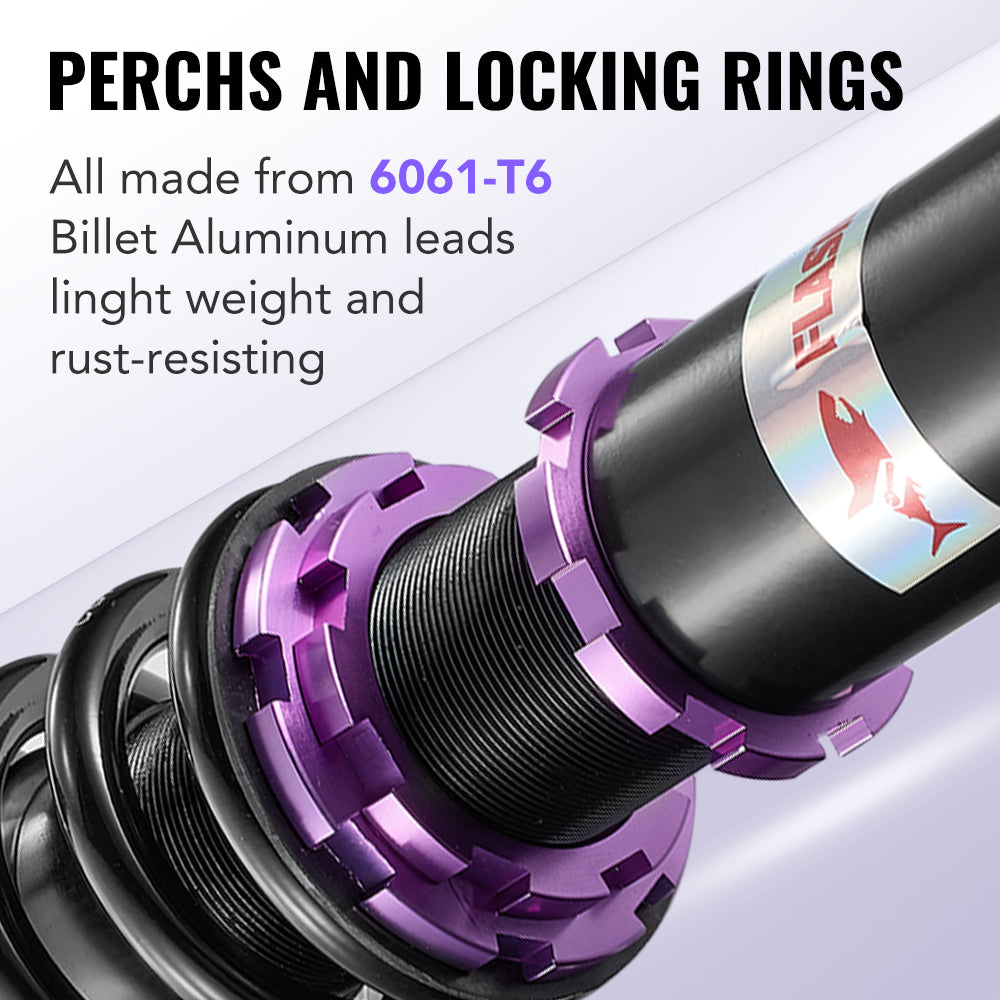

5. Most pieces in our coilover systems, including mounts, collars, and spring perches, are designed from 6061-T6 Billet Aluminum, resulting in lightweight, durable, and rust-resistant components.
6. Separate height adjustment does not affect damper stroke.
7. Full rebuildable.

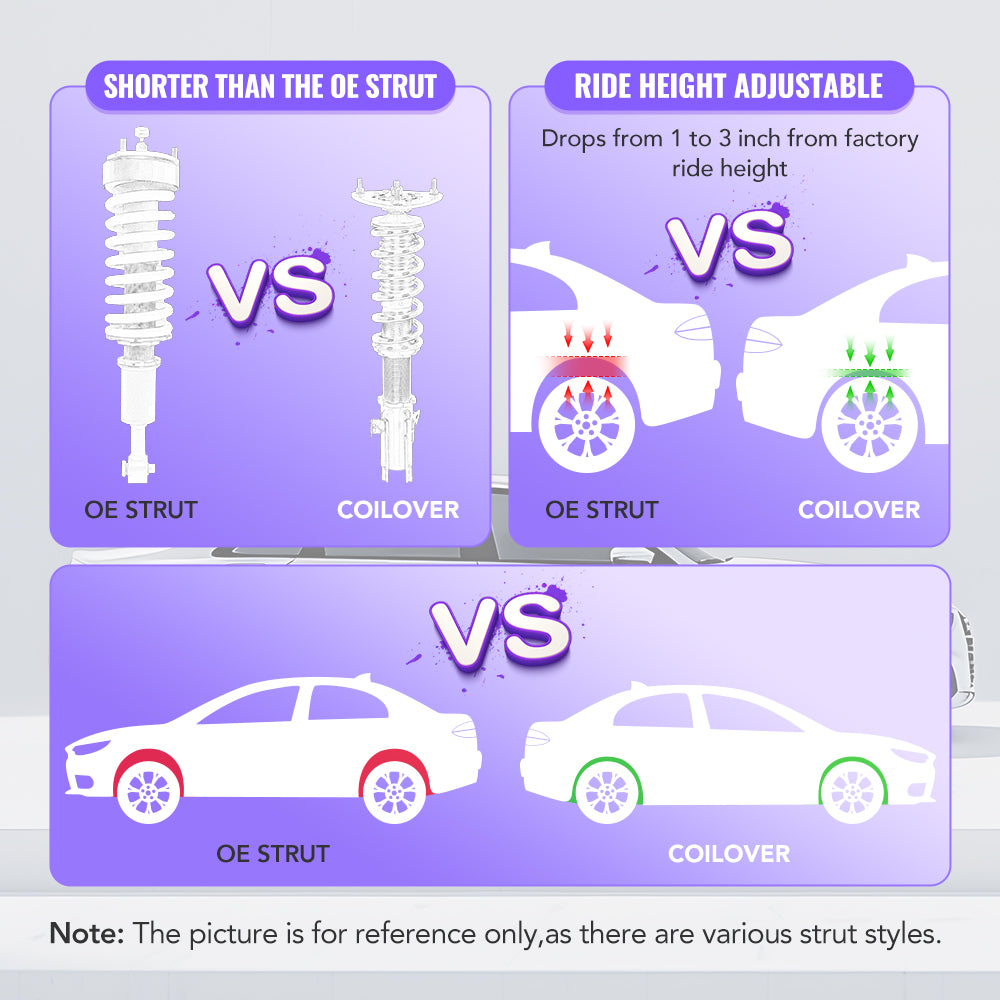

8. Lowered height adjustment from 2" - 4" which allows a lower center of gravity and also adds a more aggressive stance
2006-2009 VW GTI
2003-2007 Golf MK5
VW GTI & Golf MK5 Coilovers FAQ
Q1: Will these coilovers fit my VW GTI or Golf MK5?
A1: These coilovers are designed for 2006-2009 VW GTI and 2003-2007 Golf MK5 models. Before ordering, confirm your vehicle year, model, chassis, and current suspension setup, especially if the car has been modified or previously swapped with non-standard suspension parts.
Q2: What is included in this coilover kit?
A2: This is a 4-piece coilover shock absorber and strut kit for the front and rear suspension. The product page also notes that height adjustment tools are included, which helps make ride height setup easier during installation.
Q3: How much can these VW GTI coilovers lower the car?
A3: These coilovers are height adjustable and allow approximately 2 inches to 4 inches of lowering. That range gives your GTI or Golf MK5 a lower center of gravity and a more aggressive stance while still leaving room to fine-tune clearance for wheels, tires, and road conditions.
Q4: Are these coilovers good for daily driving?
A4: Yes, they are a practical choice for daily-driven VW GTI and Golf MK5 builds that need a lower stance and improved handling without going straight to a harsh track-only setup. The twin-tube shock design, rubber top mounts, and rubber joints help make the ride more forgiving for city streets and normal road use.
Q5: What type of shock design do these coilovers use?
A5: These coilovers use a twin-tube shock structure. A twin-tube design is often preferred for street cars because it can provide enough suspension stroke while keeping the ride more comfortable and predictable for daily driving.
Q6: What are the spring rates on this VW Golf MK5 coilover kit?
A6: The front spring rate is listed as 8 kg/mm, or about 448 lbs/in, and the rear spring rate is listed as 5 kg/mm, or about 280 lbs/in. This setup gives the car a firmer, more controlled feel than worn factory suspension while still staying suitable for street use.
Q7: Will adjusting the ride height reduce shock travel?
A7: The product page notes that the separate height adjustment design does not affect damper stroke. That is important because it lets you adjust the lowered stance without simply compressing the spring and sacrificing usable shock travel.
Q8: What materials are used in these coilovers?
A8: These coilovers use aluminum and steel construction, with key components such as mounts, collars, and spring perches made from 6061-T6 billet aluminum. This helps reduce weight while improving durability and corrosion resistance compared with cheaper basic hardware.
Q9: Do these coilovers come with top mounts?
A9: Yes, the product page lists rubber top mounts as part of the coilover system. Rubber top mounts are a good choice for street use because they help absorb road impact and reduce harshness compared with more aggressive solid or pillowball-style mounts.
Q10: Do I need an alignment after installing these coilovers?
A10: Yes. Any time you install coilovers or significantly change ride height, a professional wheel alignment is strongly recommended. Lowering the car can change toe, camber, and steering feel, so alignment helps protect tire wear, handling, and overall drivability.
Q11: Can I install these coilovers at home?
A11: A skilled DIY installer with proper tools, jack stands, spring and suspension knowledge, and safety experience may be able to install them at home. However, for most owners, professional installation is the safer choice because suspension work affects ride quality, alignment, braking stability, and tire contact with the road.
Q12: Will these coilovers improve handling?
A12: These coilovers can improve handling by lowering the vehicle, reducing body roll, and giving the suspension a firmer, more controlled feel than tired factory shocks and springs. For best results, pair the installation with a proper alignment and inspect related parts such as control arm bushings, sway bar links, and mounts.
Q13: Are these coilovers mainly for stance or performance?
A13: They are designed for both appearance and street performance. The 2-inch to 4-inch lowering range helps create a more aggressive stance, while the firmer spring rates and twin-tube shock design help improve suspension control for a more planted driving feel.
Q14: Are the springs durable?
A14: The product page states that the high-tensile performance springs are stress-tested over 600,000 times, with spring distortion listed at less than 0.04%. The special surface treatment is also intended to improve durability and long-term performance.
Q15: Why choose these Flashark coilovers instead of replacing only the factory struts?
A15: Replacing only the factory struts can restore basic ride quality, but it will not give you the same ride height adjustability or lowered stance. These Flashark coilovers give VW GTI and Golf MK5 owners a complete suspension upgrade with adjustable lowering, matched front and rear components, included adjustment tools, and a more performance-focused setup.
