Product Specifications
2010-2014 VW Golf Jetta Passat 2.0 TDI (CJAA) Cold Air Intake Kit

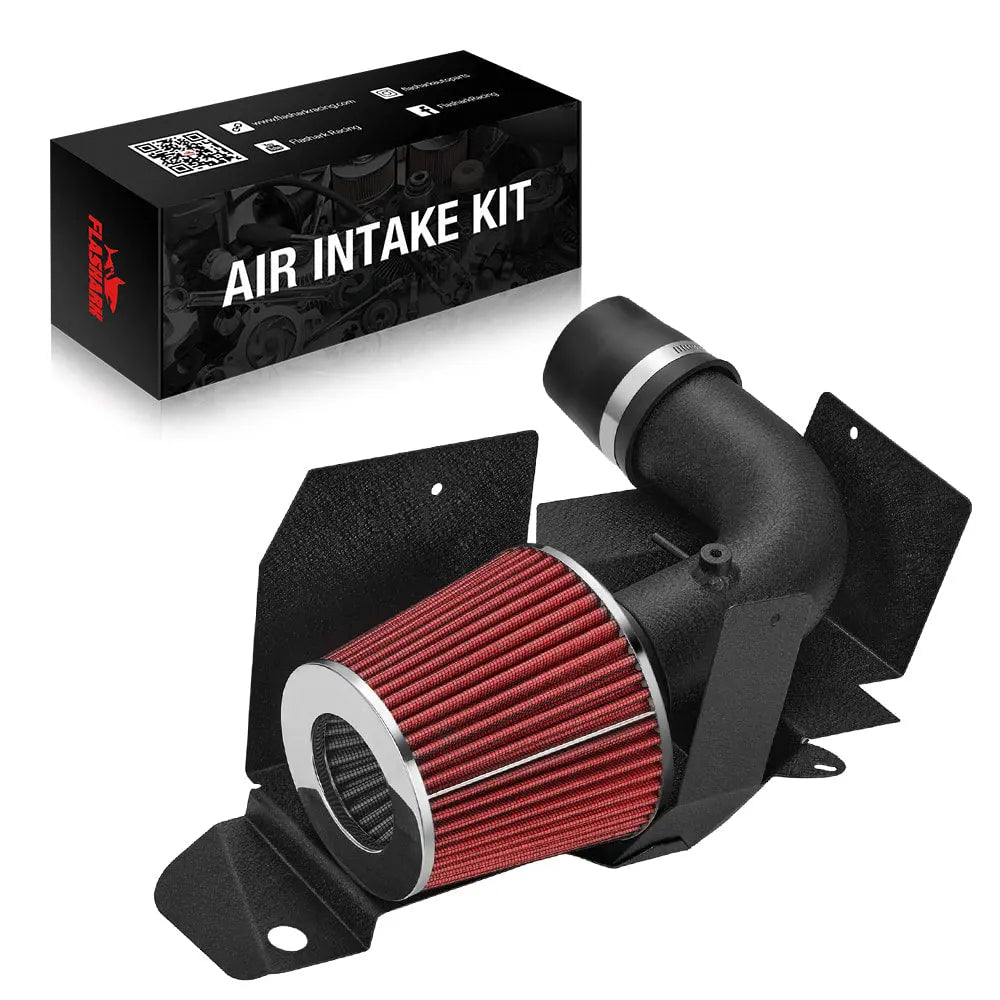

Built specifically for the 2010-2014 VW Golf, 2010-2014 Jetta, 2012-2014 Passat, 2013-2014 Beetle, and 2010-2013 Audi A3 with the 2.0L TDI (CJAA) Common-Rail Diesel, this Flashark Cold Air Intake replaces the factory airbox and intake tube to feed the turbo cooler, denser air from outside the engine bay. The mandrel-bent 2.75-inch T-6061 aluminum tube and dual steel heat shields isolate the dry cone filter from under-hood heat so the TDI breathes cooler charge air on the 1,800-3,000 RPM band. Bolt-on installation uses factory mounting points, so the swap takes about 45 minutes with basic hand tools and no tune.
Specifications
| Spec | Detail |
|---|---|
| Brand | Flashark |
| SKU | FLIS25125 |
| System Type | Cold Air Intake (CAI) |
| Engine Compatibility | 2.0L TDI Common-Rail Diesel (CJAA) |
| Tube Material | T-6061 Aluminum |
| Tube Finish | Black Powder Coated |
| Tube Diameter | 70mm (2.75") |
| Heat Shield | Dual steel plates (two-piece design) |
| Filter Type | Dry, washable, reusable (no oil required) |
| Filter Color | Red conical |
| Silicone Couplers | 1× straight φ70 + 1× reducer φ70→76 |
| Intake Hose | φ6 × 135mm with double-ended connector |
| Mounting Bracket | Steel, included |
| Grommets | 2× φ14 eyelets |
| Clamps | 3× narrow band (59-82mm) + 1× (72-95mm) |
| Tune Required | No — fully compatible with factory CJAA ECU |
| Install Time | About 45 minutes |
| Warranty | 1 Year |

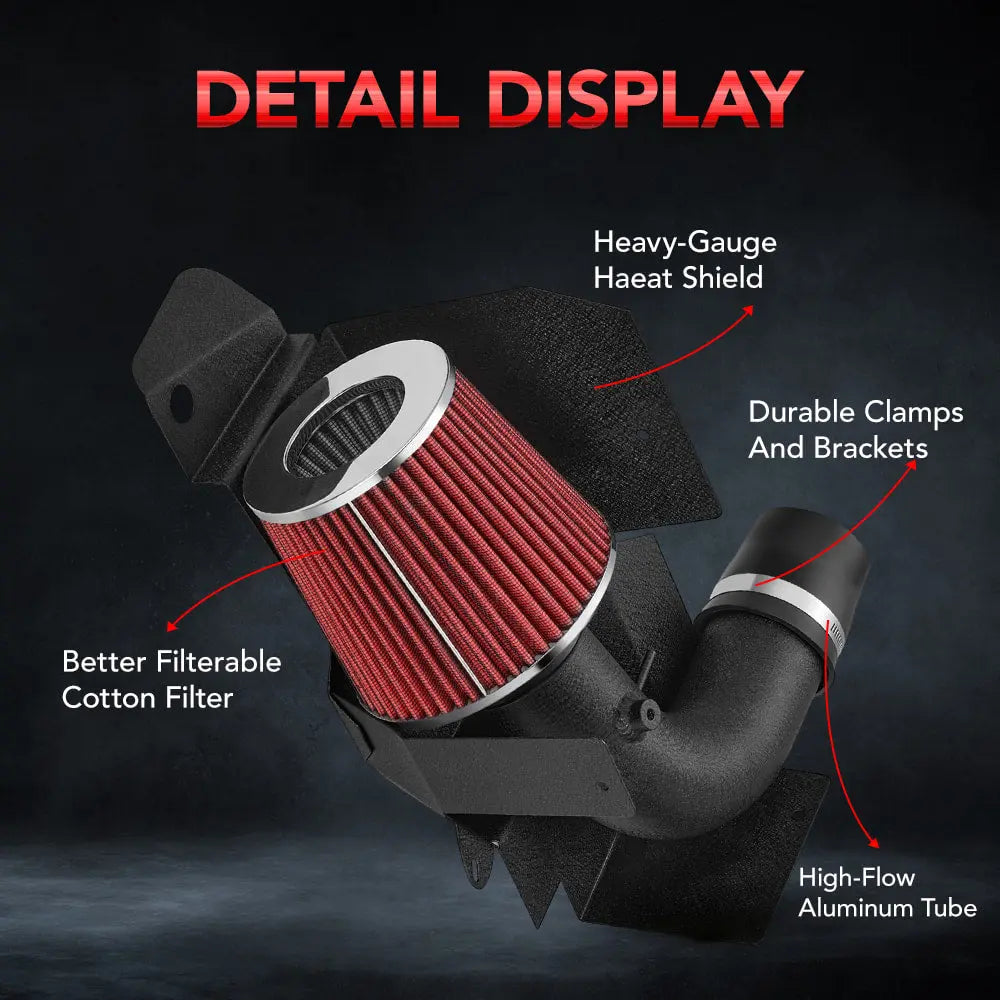

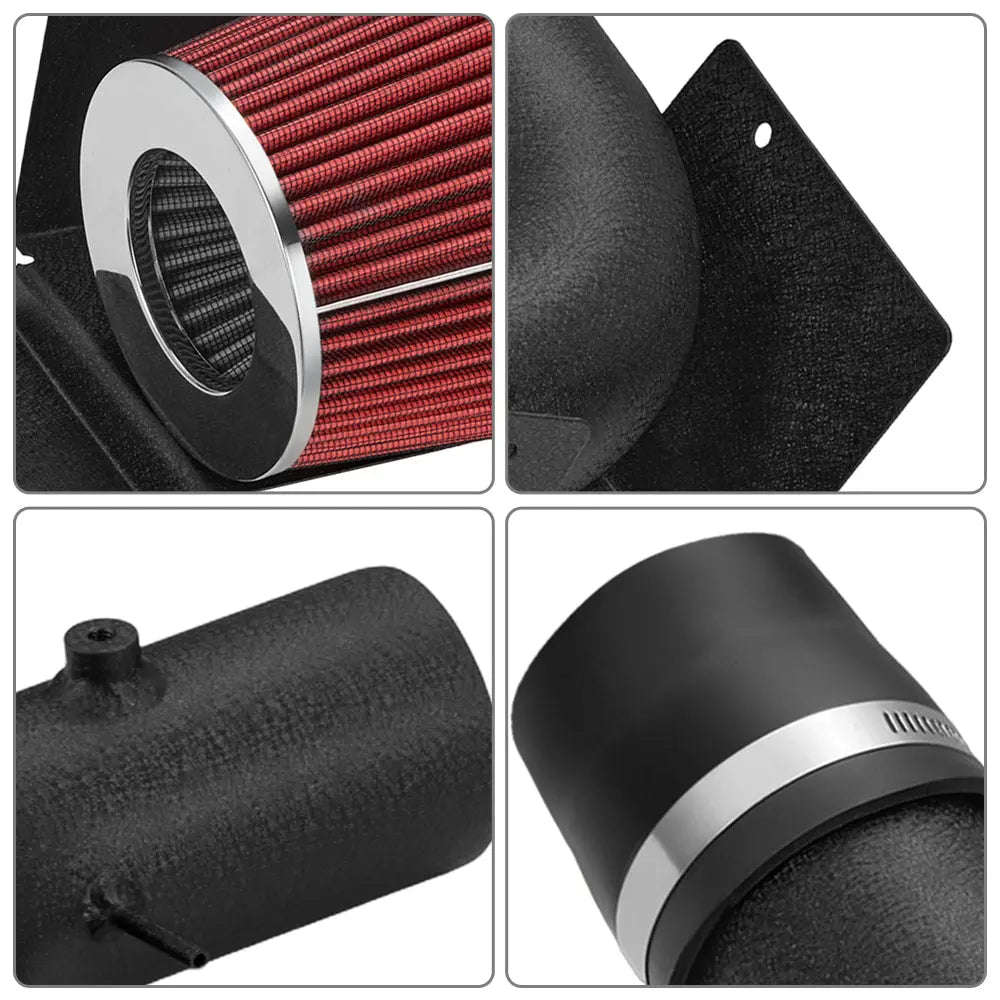

Key Features
- 2.75" (70mm) mandrel-bent T-6061 aluminum intake tube: black powder-coated, smooth interior walls; diameter specifically matched to the 2.0 TDI CJAA airflow profile for optimal velocity
- Dry cone filter (red): washable, reusable, no oil required; 100% safe for the sensitive CJAA MAF sensor; clean every 15,000-20,000 miles
- Dual steel heat shields: two-piece design isolates filter from engine bay heat; routes intake to cold air zone; intake temperature reduction improves combustion density
- Precision MAF calibration: CNC-machined 70mm housing delivers clean laminar airflow; designed to maintain factory MAF calibration on a stock tune
- Straight + reducer silicone couplers: custom φ70 straight coupler + φ70→76 reducer; multi-layer black silicone with stainless clamps for a leak-free seal
- No tune required: plug-and-play with factory CJAA ECU; fuel trims adapt automatically, no VCDS coding needed
- Bolt-on installation: factory mounting points, no cutting or drilling; about 45 minutes with a T25/T30 Torx and basic socket set
Who this kit is for
This Flashark Cold Air Intake replaces the factory airbox and intake tube on the 2010-2014 VW Golf, 2010-2014 VW Jetta, 2012-2014 VW Passat, 2013-2014 VW Beetle, and 2010-2013 Audi A3 TDI with the 2.0L TDI (CJAA) Common-Rail Diesel engine. It is built for owners who want cooler intake charge air, a deeper intake tone under acceleration, a washable dry filter that is safe for the CJAA MAF sensor, and a bolt-on install done in about 45 minutes with hand tools.
✓ For you if… you tow or commute and want sharper throttle response in the 1,800-3,000 RPM band where the TDI turbo lives · you prefer a reusable dry filter over disposable paper · you've confirmed your county and state emissions rules in the Compliance section below · you're doing this as a first bolt-on upgrade on your CJAA.
✗ Not for you if… you drive a 2.0T TSI / TFSI / Golf GTI / GLI / 2.5L I5 / 1.8T gasoline model — this kit is TDI-only · you own a 2015+ EA288 TDI or a 2005.5-2007 BRM / BEW / ALH pump-duse TDI · you drive a Golf R · you need CARB-compliant street-legal status in California or another CARB-adopting state (this SKU carries no EO) · you expect a guaranteed MPG or horsepower number from an intake alone.
Check before ordering
- ① Vehicle fitment: Confirm exact year, model, and the CJAA 2.0L TDI engine code before checkout. The kit fits 2010-2014 VW Golf, 2010-2014 VW Jetta, 2012-2014 VW Passat, 2013-2014 VW Beetle, and 2010-2013 Audi A3 TDI. If your vehicle is not on the Fitment list, message us before ordering.
- ② Intake type: This is a true sealed-box CAI (dual steel heat shields + dry cone filter pulling from outside the engine bay). It is not a short ram / open-element intake — if you want a comparison between sealed CAI and open-element styles, see FAQ Q7.
- ③ Filter care: Dry-media washable filter, no oil required. Clean every 15,000-20,000 miles (more often in severe conditions). For routine replacement of the same dry cone filter on your 2.0 TDI, see VW 2.0 TDI intake parts and filters.
- ④ Sensors: The factory MAF/IAT sensor is reused from your stock airbox (it is a transplant part, not included in the box). The CNC-machined 70mm housing keeps the MAF at the OEM bore so the stock CJAA ECU reads in its design envelope.
- ⑤ Legality: This kit does not carry a CARB Executive Order (EO) number. It is Not legal for sale or use in California and other CARB-adopting states; in those jurisdictions it is intended for off-road / competition use only. Confirm your state and county emissions rules before ordering.
- ⑥ Install space & water: Bolt-on, no cutting or drilling. About 45 minutes with a T25/T30 Torx and basic socket set. The filter mounts in the engine bay; avoid deep water crossings because water ingestion (hydrolock) can cause severe engine damage.

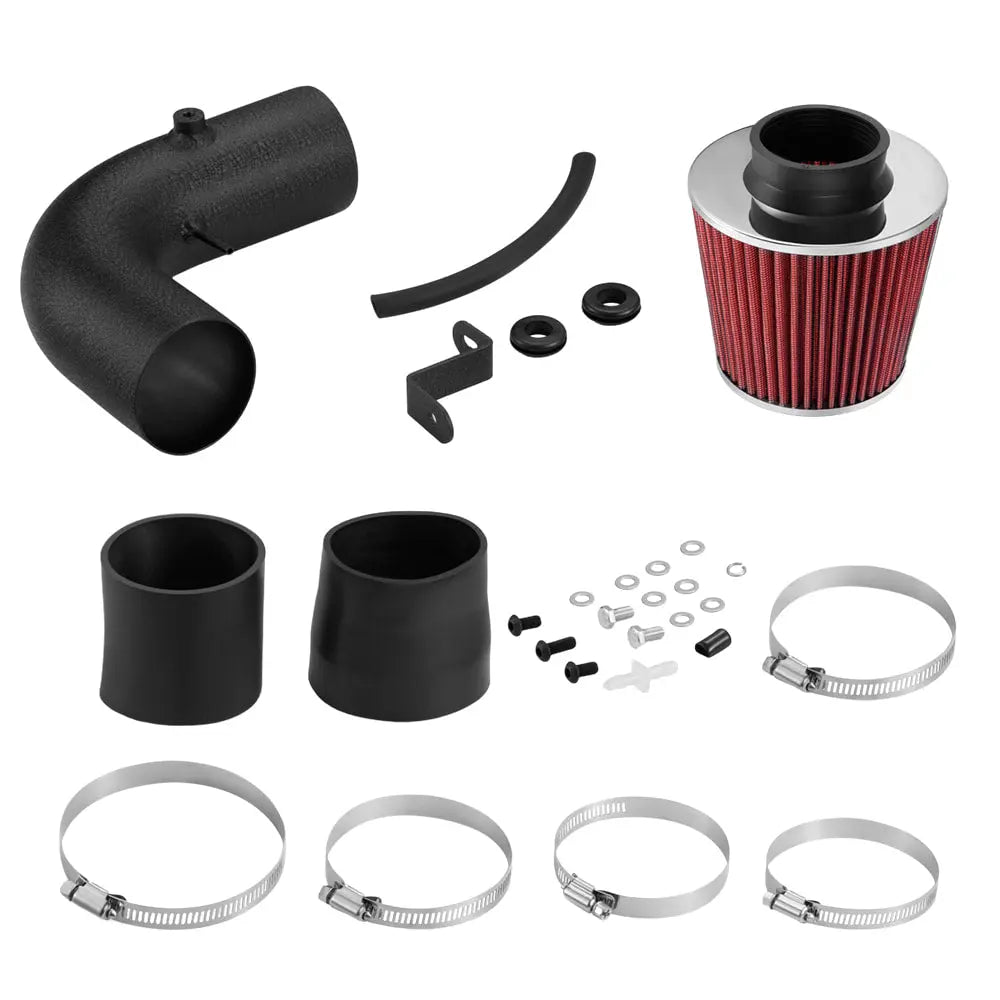

What's in the box

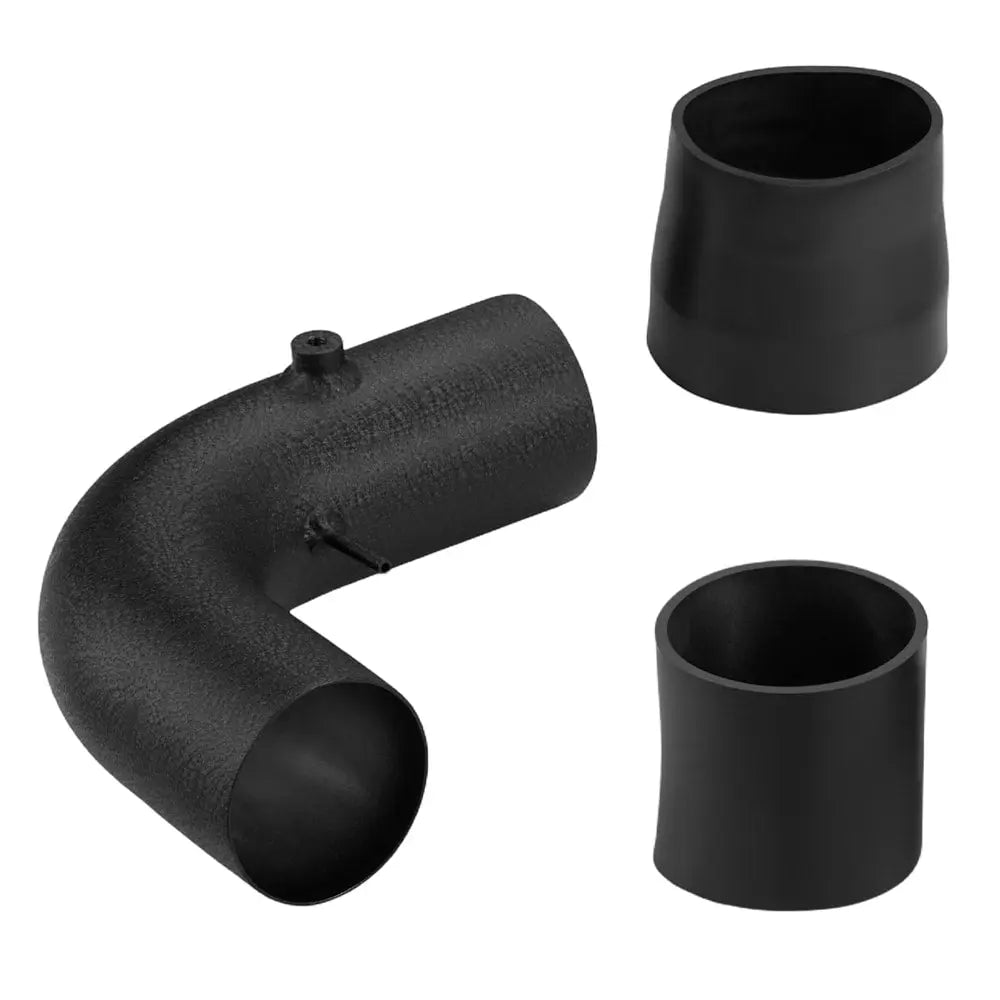

- 1× 2.75" mandrel-bent aluminum intake tube (black powder-coated)

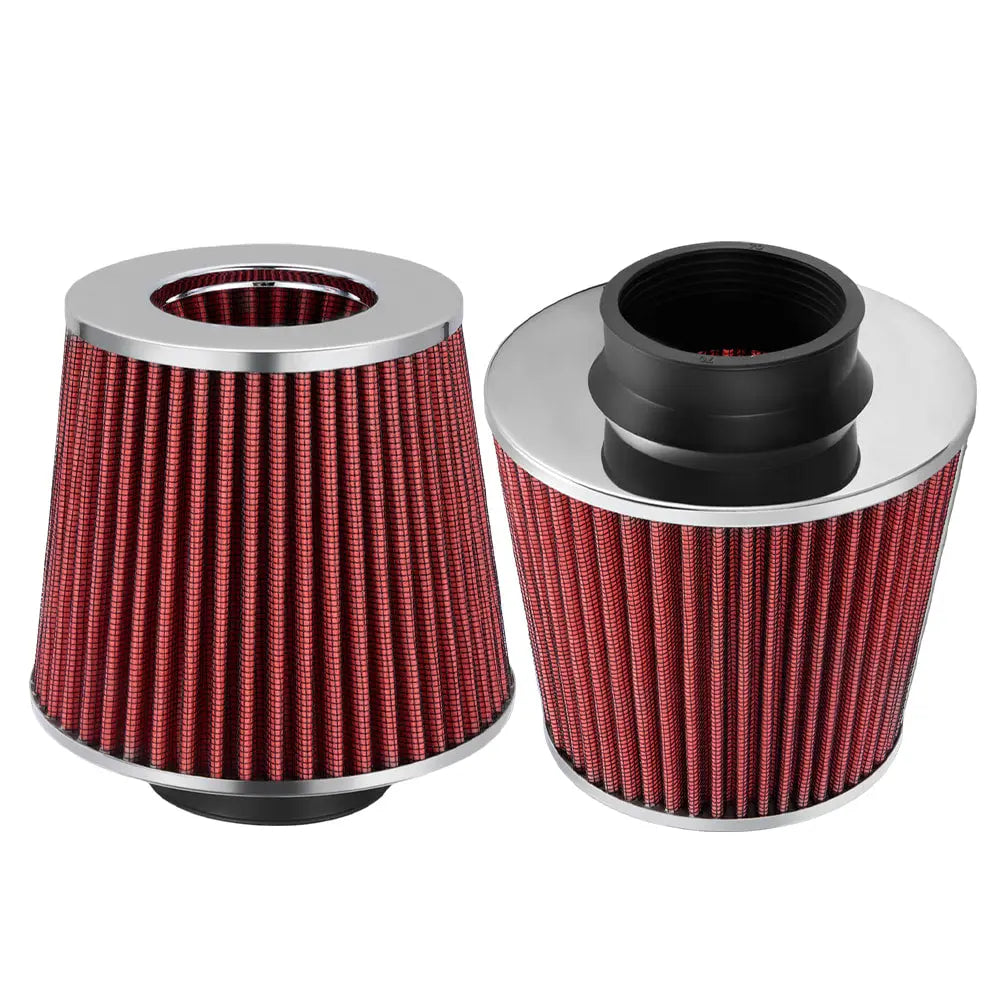

- 1× Dry high-flow cone air filter (red, washable & reusable)
- 2× Steel heat shields (dual-plate design)
- 1× Straight silicone coupler (φ70×φ70)
- 1× Reducer silicone coupler (φ70→φ76)
- 1× Intake hose (φ6 × 135mm) with double-ended connector
- 1× Steel mounting bracket
- 2× Grommets (φ14)

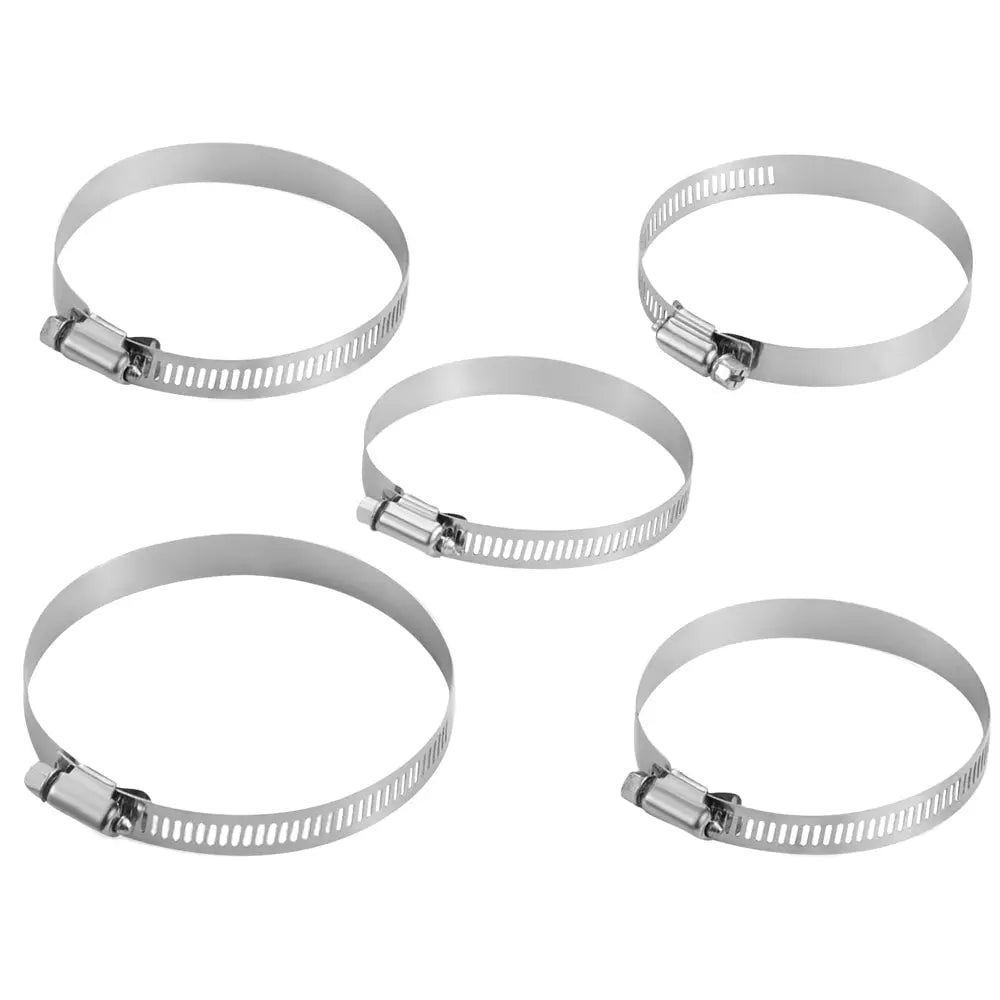

- 3× Narrow band clamps (59-82mm) + 1× clamp (72-95mm)
- 1× Installation hardware kit (all bolts, lock nuts, flat washers, and elastic washer)
