Choose the Right Header for Your D17 Civic
Build a better exhaust foundation for your seventh-generation Civic with a header setup that gives the engine a clearer path out and leaves room for the sound and response you want from the rest of the system.

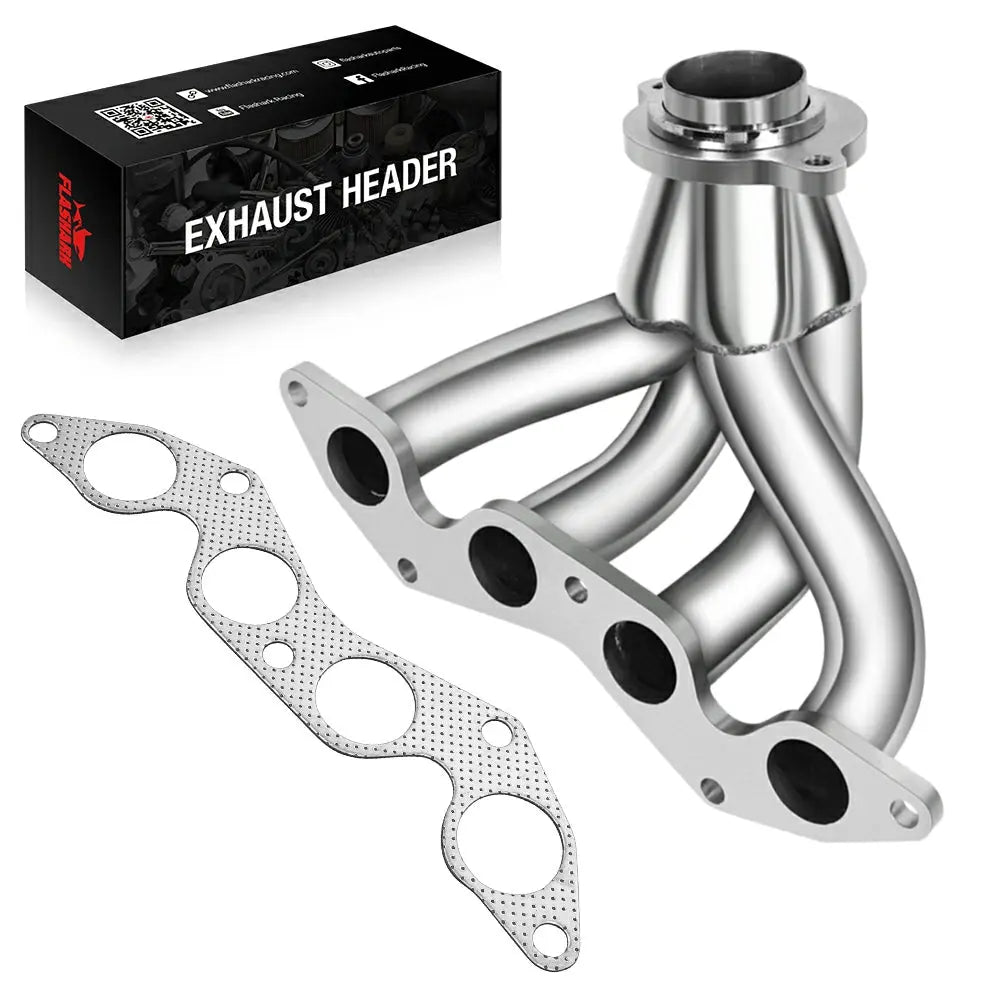

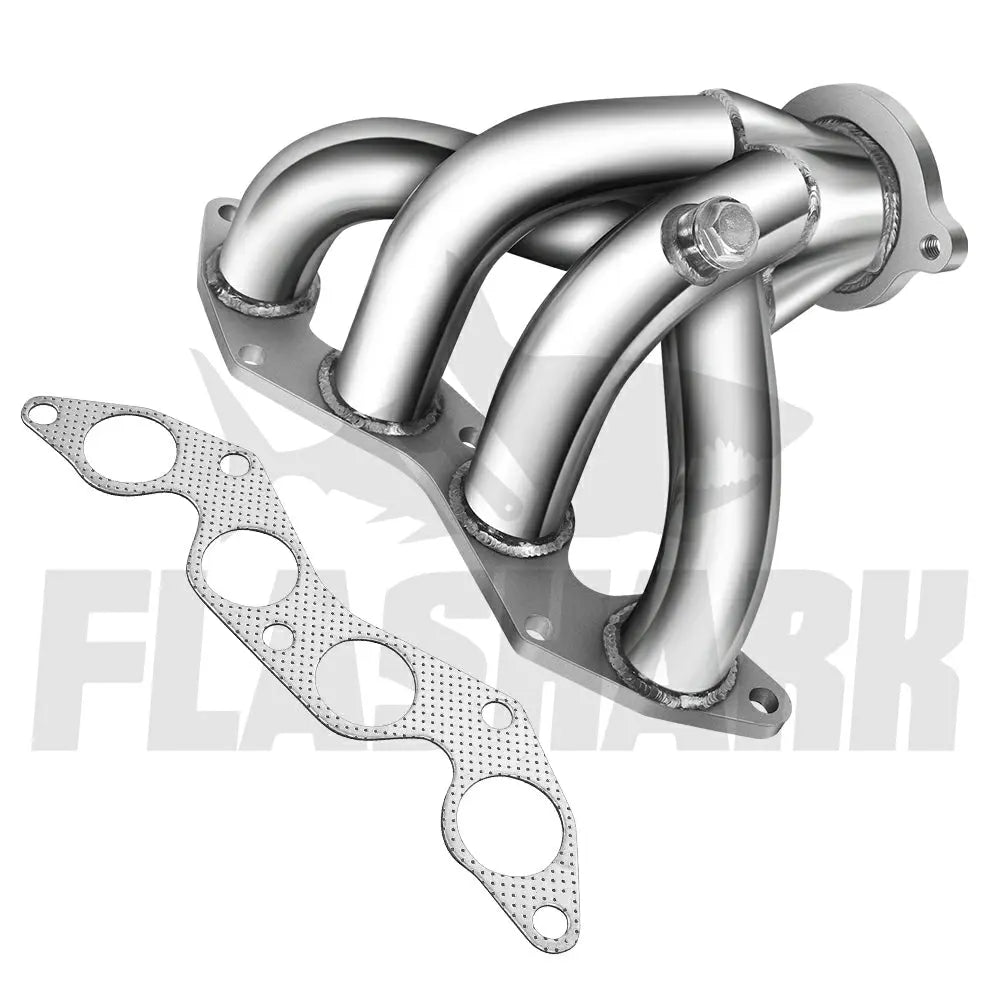

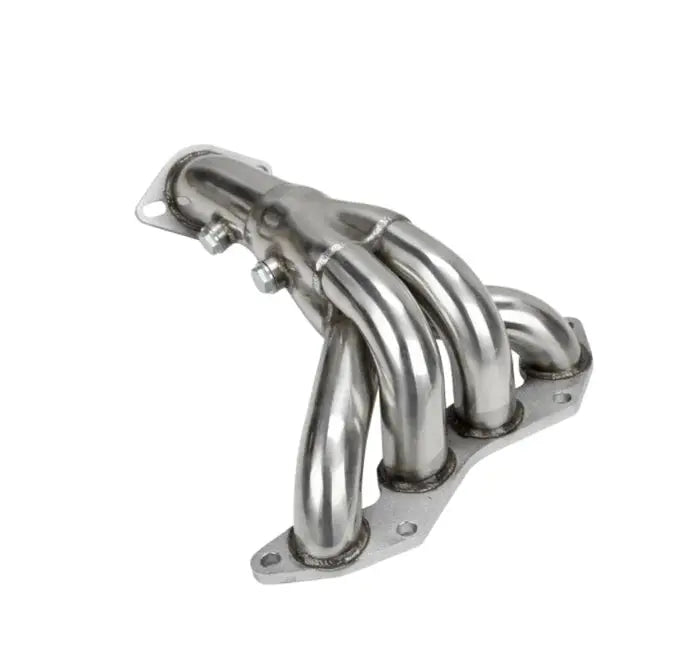

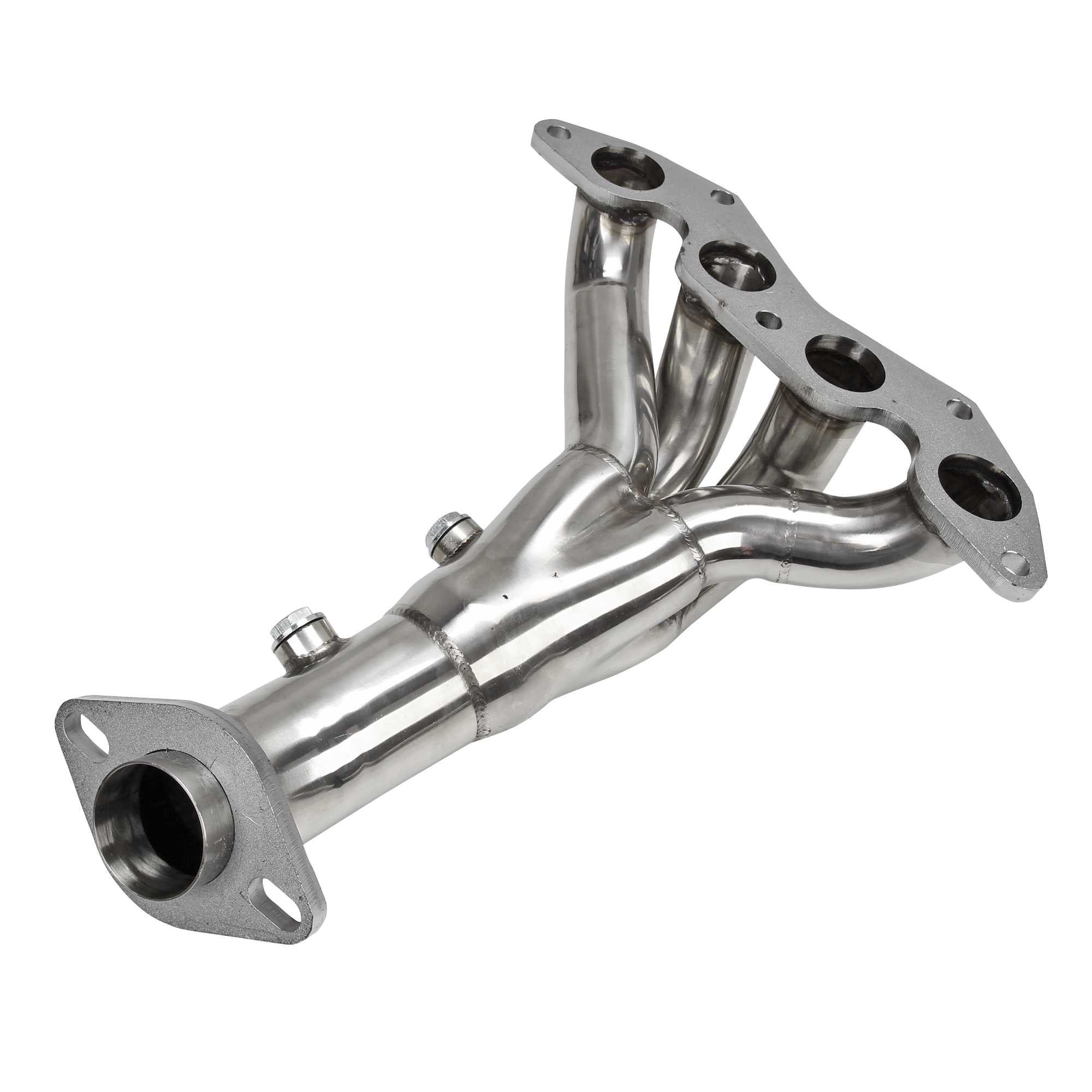

Flashark short- and long-tube exhaust header options are offered for compatible 2001–2005 Honda Civic 1.7L models using the D17A1 or D17A2 engine. Because the factory exhaust layout differs by trim and engine, choose the variant by the engine code and existing exhaust configuration—not by model year alone.
Specifications
| Brand | FLASHARK |
|---|---|
| Product Type | Short Tube Header / Long Tube Header |
| Material | Stainless Steel |
| Surface Finish | Mirror Polish |
| Model Reference | EH28078 (ES08353) |
| O2 Sensor Provision | Threaded O2 sensor port; sensor itself is not stated as included |

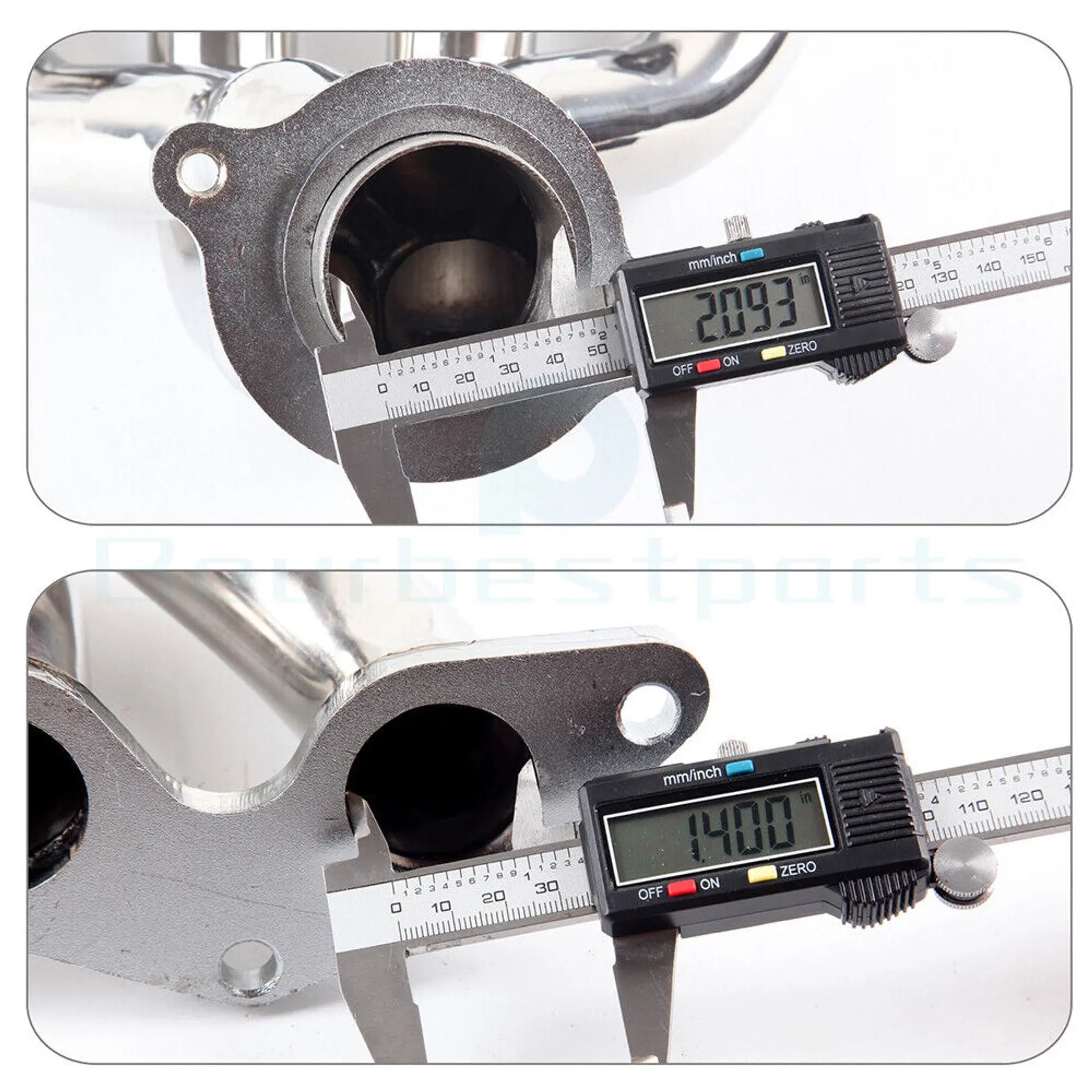

| DX/LX Inlet / Outlet | 1.50 in / 2.00 in |
| EX Inlet / Outlet | 1.50 in / 2.25 in |
| EX Flange / Pipe Wall | 3/8 in flange / 16-gauge piping wall |
| Included Item Confirmed on Page | Metal gasket |
Key Product Details
- Designed for compatible 2001–2005 Honda Civic 1.7L four-cylinder applications
- Separate long-tube and short-tube configurations for the listed D17A1 and D17A2 applications
- Stainless-steel construction with a mirror-polished surface
- TIG-welded construction and CNC-machined flange
- Threaded O2 sensor port

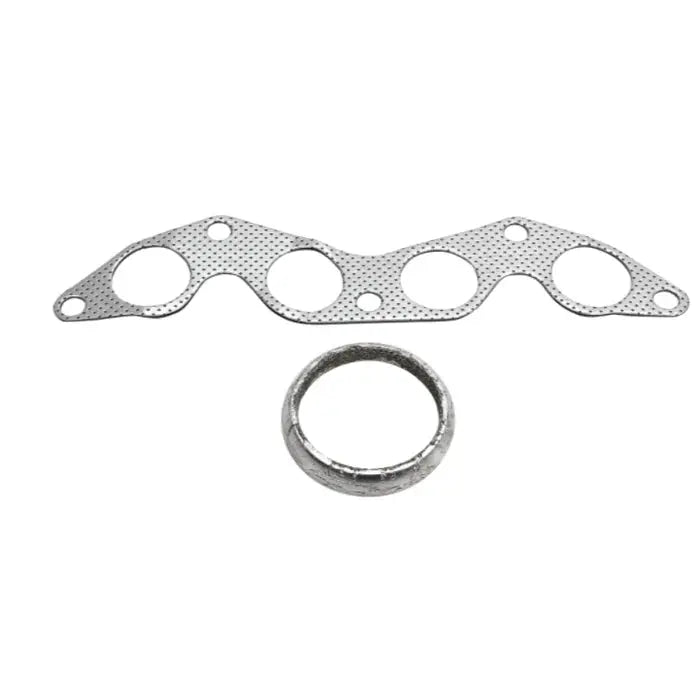

- Metal gasket included

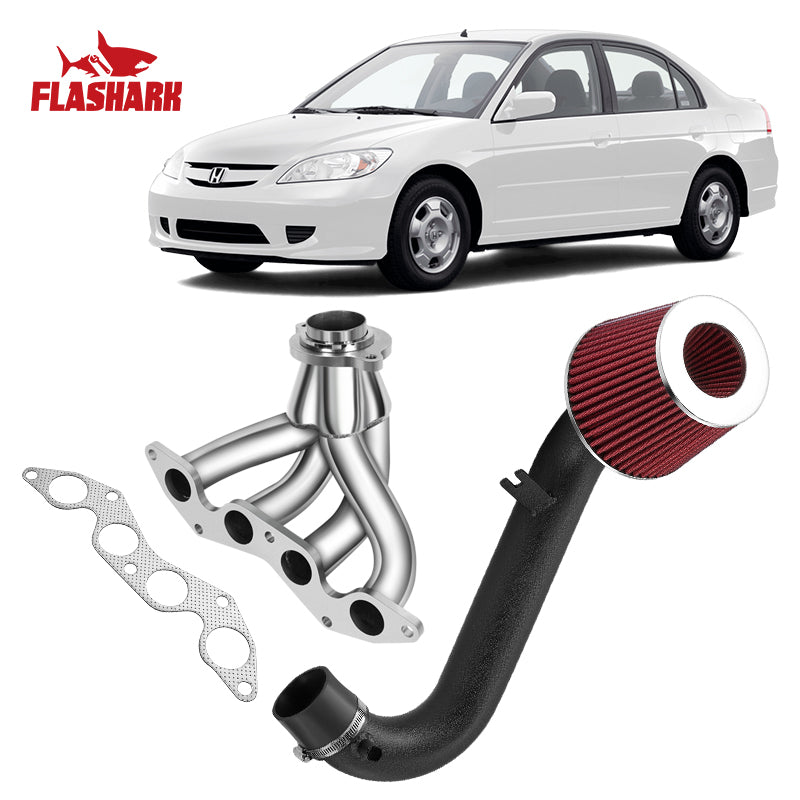

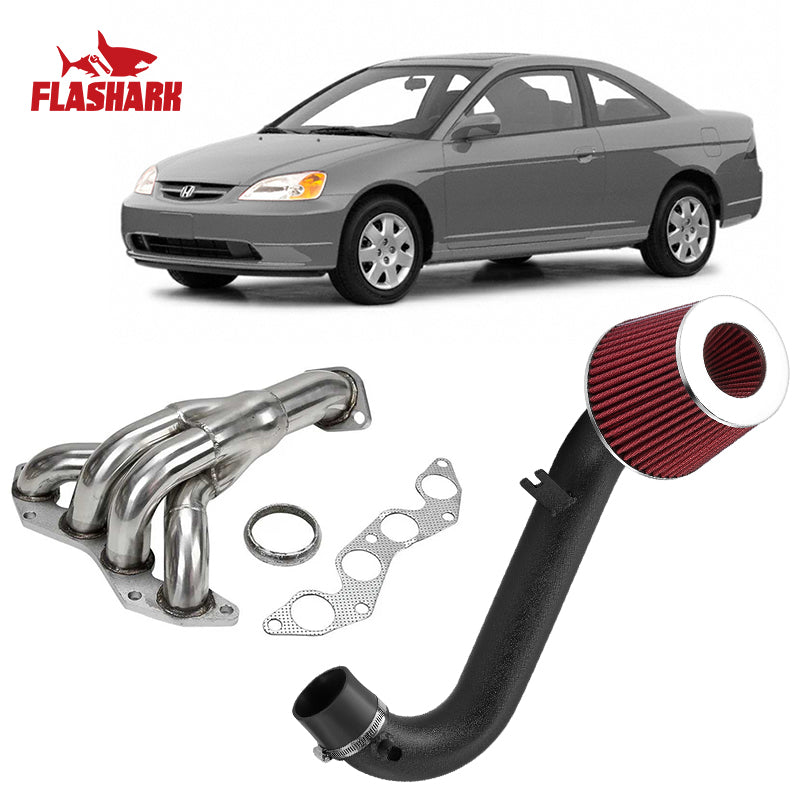

- Header-only and header-plus-air-intake-kit selections available
Short Tube vs. Long Tube: Choose by Layout First
| Option | Listed Application | What to Expect | Main Fitment Check |
|---|---|---|---|
| Short Tube | EX / D17A2 | Compact layout with an emphasis on responsive street driving and easier packaging. | Body style, outlet flange, O2 sensor locations, and the downstream exhaust connection. |
| Long Tube | DX/LX / D17A1 | Longer runner layout intended to support exhaust flow higher in the rev range. | Catalytic-converter arrangement, ground clearance, outlet position, and compatibility with the remaining exhaust. |
How the Header Can Change the Car
A header changes the path exhaust gas takes before it enters the rest of the system. On a compatible, healthy engine, that can sharpen the way the car responds and make the exhaust note more present. The short-tube option is positioned for quicker low-to-midrange response, while the long-tube layout is intended to support flow at higher engine speed.
Do not treat a fixed horsepower number as guaranteed. Actual gains depend on the engine, catalytic-converter configuration, intake and exhaust combination, ECU calibration, fuel, vehicle condition, and test method. A dyno comparison of the exact selected variant would be needed to support a specific horsepower or torque claim.
Sound Compared with the Factory Manifold
Expect the header to make the exhaust character more noticeable, especially under acceleration. Final volume and tone depend heavily on the catalytic converter, resonator, pipe diameter, muffler, exhaust leaks, and whether the car already has an aftermarket cat-back. The header alone cannot guarantee a particular sound level or eliminate rasp.
Installation Notes from a Technician's Point of View
- Work on a fully cooled exhaust system and support the vehicle correctly.
- Compare the new header with the removed assembly before final installation.
- Inspect the cylinder-head sealing surface, studs, nuts, spring bolts, flange faces, and adjoining exhaust sections.
- Install the supplied metal gasket in the correct orientation and follow the vehicle service information for tightening sequence and torque.
- Route O2 sensor wiring away from hot tubing and moving parts; do not twist or stretch the harness.
- Check clearance around the oil pan, subframe, steering components, wiring, hoses, and body before starting the engine.
- After the first heat cycle, inspect for leaks, contact points, loose fasteners, and warning lights.
The catalytic-converter configuration and emissions certification of each variant are not stated in the available product information. Before purchase or installation, confirm whether the selected header changes, relocates, or replaces any emissions-control component and whether that configuration is legal where the vehicle is registered or used. An O2 sensor port alone does not establish emissions compliance or guarantee that a check-engine light will stay off.
Customer Installation Image
Customer vehicles may have different engines, exhaust layouts, supporting parts, and local requirements. Use installation photos as a visual reference, not as proof of fitment for another vehicle.
Fitment & Compatibility
⚠️ CRITICAL FITMENT RULE (MUST READ BEFORE PURCHASE)
✅ Verified Fitment
| Brand | Model | Year Range | Full Compatible Specs |
|---|---|---|---|
| Honda | Civic | 2001-2005 |
|
2001–2005 Honda Civic Header FAQ
Q1: Will this header fit every 2001–2005 Honda Civic?
A1: No. Select the header by engine and factory exhaust layout. The listed long-tube option is for the D17A1 application used in DX/LX models, while the listed short-tube option is for 2-door or 4-door EX models with the D17A2. Engine swaps and earlier exhaust modifications need a separate physical check.
Q2: How do I know whether my Civic has a D17A1 or D17A2?
A2: Check the engine identification stamping and compare it with the vehicle documentation. Do not rely only on the trunk badge or model year, especially on a 20-plus-year-old car that may have had an engine swap.
Q3: Can a D17A2 header be installed on a D17A1 engine?
A3: Do not assume the two applications interchange. Even when the cylinder-head side appears similar, the catalytic-converter position, outlet flange, pipe routing, O2 sensor arrangement, and remaining exhaust can differ. Use the variant specified for the actual engine and exhaust layout.
Q4: Should I choose the short-tube or long-tube header?
A4: Fitment comes first. The short-tube version is listed for EX/D17A2 applications and is positioned toward responsive street use. The long-tube version is listed for DX/LX D17A1 applications and uses a longer runner layout intended to support higher-RPM flow.
Q5: Does the header replace the factory exhaust manifold?
A5: Yes, the header is intended to replace the applicable factory manifold assembly. Before removal, compare the factory catalytic converter, sensors, flanges, and outlet location with the selected variant because those details determine what else may be needed.
Q6: Is a catalytic converter included?
A6: A catalytic converter is not identified in the available package information. Confirm the selected variant's complete configuration before ordering. Do not assume a converter is present from the header shape or product name.
Q7: Will installing the header cause a check-engine light?
A7: It cannot be guaranteed either way. A warning light can be affected by catalytic-converter efficiency, sensor placement, wiring, exhaust leaks, engine condition, and local OBD requirements. Scan and diagnose any code rather than using a spacer or tune simply to hide an emissions fault.
Q8: Does the header include an O2 sensor?
A8: The header is listed with a threaded O2 sensor port. The available product information does not confirm that a replacement sensor is included, so plan to reuse a serviceable compatible sensor or obtain the correct replacement separately.
Q9: Is ECU tuning required after installation?
A9: The requirement depends on the final exhaust and emissions configuration. Start by confirming correct fitment, leak-free installation, normal sensor operation, and any diagnostic codes. Calibration decisions should be based on the complete setup and local emissions rules.
Q10: Will it connect to the factory exhaust or an aftermarket cat-back?
A10: Do not assume every system uses the same connection. The page lists a 2.00-inch outlet for the DX/LX application and a 2.25-inch outlet for the EX application. Compare outlet diameter, flange pattern, angle, and position with the exhaust already on the car; an adapter or fabrication may be needed on a modified system.
Q11: What comes in the package?
A11: The selected header and a metal gasket are identified in the available product information. An air intake is included only when a header-plus-air-intake-kit variant is selected. Confirm fasteners, spring bolts, sensors, adapters, and any other hardware with Flashark before purchase because those items are not listed as included.
Q12: How much horsepower will the header add?
A12: There is no single defensible number for every D17 Civic. Results vary with the header version, engine health, catalytic converter, intake, remaining exhaust, tune, fuel, and dyno method. Treat the header as one part of the system rather than a guaranteed horsepower figure.
Q13: Will the exhaust be louder?
A13: Usually the exhaust note becomes more noticeable under load, but the catalytic converter, resonator, pipe size, muffler, and leaks determine the final volume and tone. A header by itself cannot guarantee a deep sound or prevent rasp.
Q14: Can I install it with standard hand tools?
A14: A well-equipped DIY owner may be able to complete the work, but aged fasteners, broken studs, seized O2 sensors, flange alignment, and unexpected exhaust differences can turn it into a shop job. Use penetrating oil, proper O2 sensor tools, safe vehicle supports, and the Honda service procedure.
Q15: Is this header legal for street use?
A15: Street legality cannot be confirmed from the available product information. It depends on the exact variant, whether emissions equipment is changed, and the rules where the vehicle is registered or operated. Verify product-specific emissions documentation and local requirements before installation.
Q16: Is the stainless-steel header suitable for daily driving?
A16: Stainless steel, TIG-welded construction, and a CNC-machined flange are useful durability features, but service life still depends on weld quality, support, clearance, engine movement, road conditions, and installation. Recheck the system after heat cycling and address leaks or contact points early.
