2017-2020 Hyundai Elantra Sedan (AD) 32-Way Damping Coilover Shock Absorbers Struts | Flashark
Gain better control over ride comfort, cornering response, and vehicle stance instead of settling for a fixed factory-style suspension setup. This Flashark coilover shock absorber and strut kit is designed for 2017-2020 Hyundai Elantra Sedan AD models with compatible factory engine configurations, combining adjustable ride height with 32-way damping control. It provides a complete front and rear suspension upgrade for daily driving, lowered street builds, and more responsive handling.
Specifications:
Shock Type: Mono-Tube
Spring Preload: 7-10 mm
Adjustable Height: Yes, lowering 2" to 4"
Surface Materials: Aluminum, Steel
32-Way Damping Force Adjustment

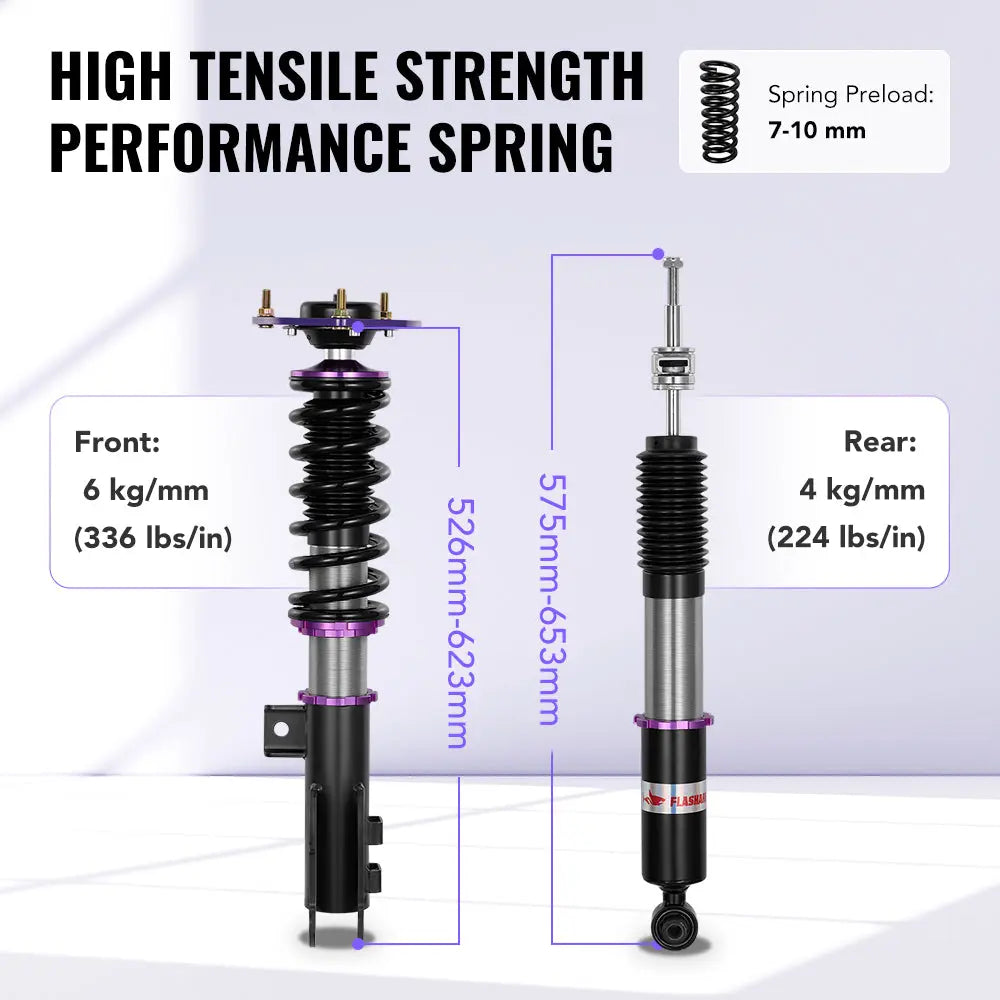

Spring Rate Front: 6 kg/mm (336 lbs/in)
Spring Rate Rear:4 kg/mm(224 lbs/in)
Spring length Front: 200mm
Spring length Rear: 195mm
Coilover overall length Front: 526mm-623mm
Coilover overall length Rear: 575mm-653mm
Features:
1. Twin-tube structure allows sufficient stroke within the shock absorber.
2. High-tensile performance spring—Stress tested over 600,000 times, with spring distortion less than 0.04%. Plus, the special surface treatment improves durability and performance.
3. Height Adjustment tools included.
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

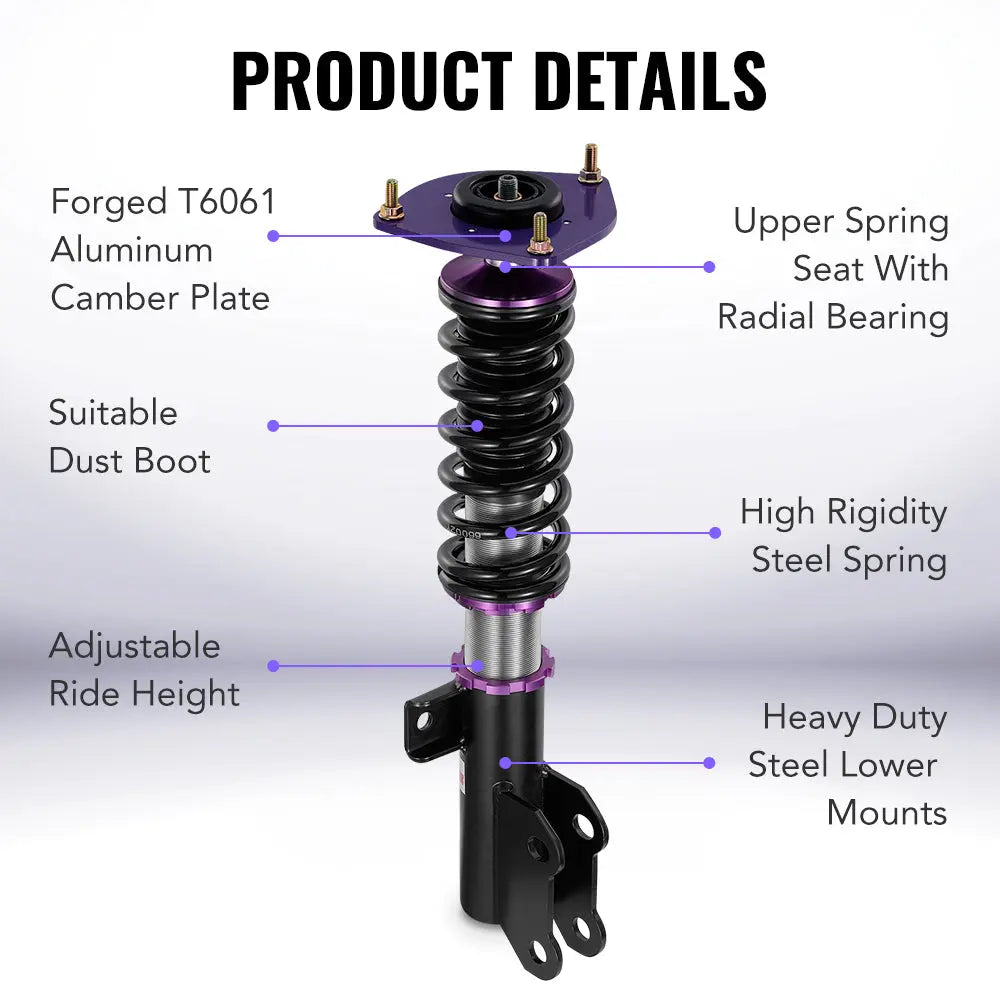

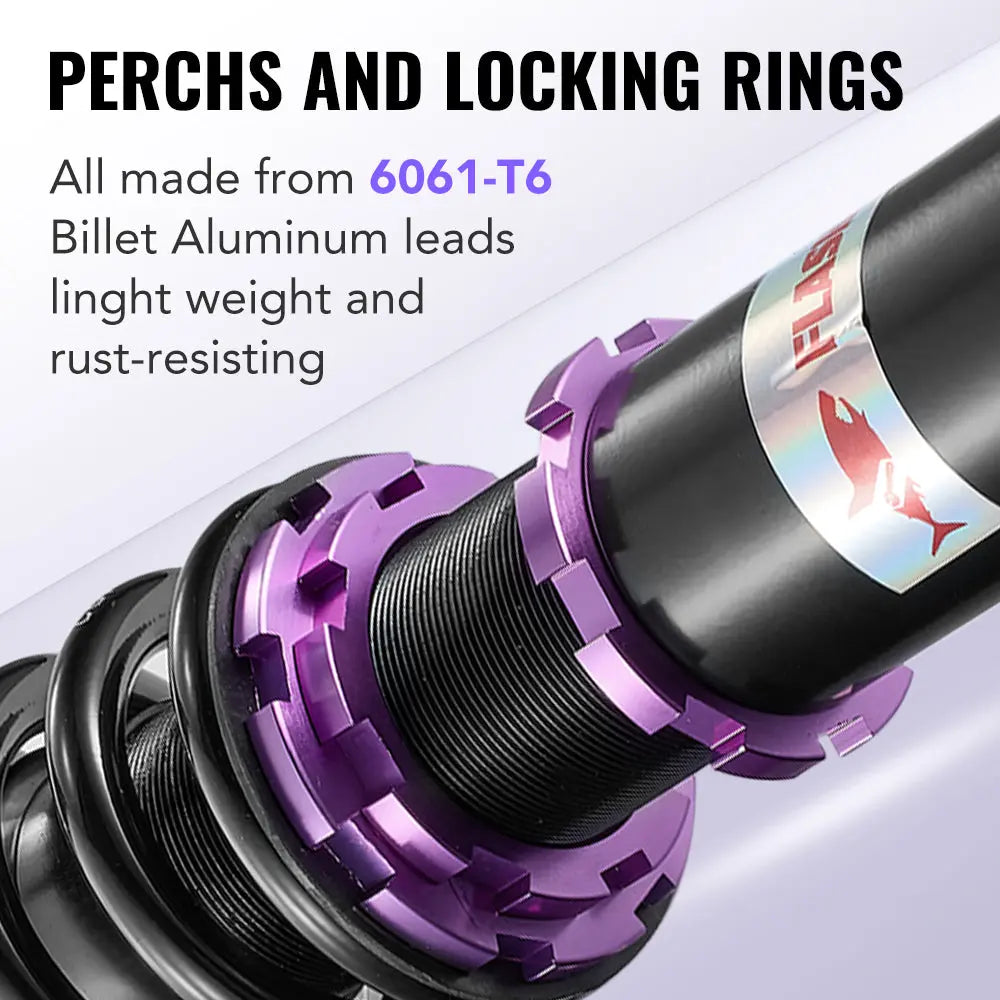

5. Most pieces in our coilover systems, including mounts, collars, and spring perches, are designed from 6061-T6 Billet Aluminum, resulting in lightweight, durable, and rust-resistant components.
6. Separate height adjustment does not affect damper stroke.
7. Full rebuildable.
8. Lowered height adjustment from 2" - 4" which allows a lower center of gravity and also adds a more aggressive stance

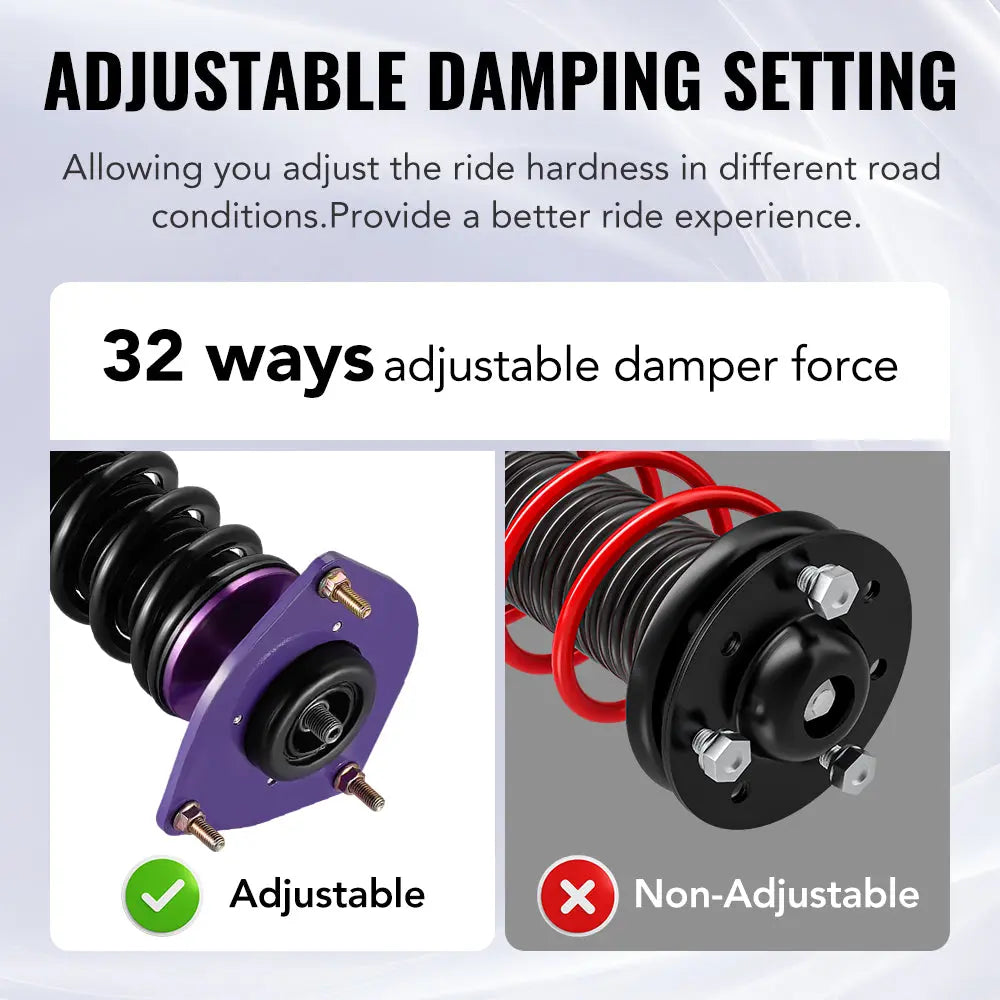

9. A 32 rebound damping adjustment level allows you to dial in your coilover setup perfectly. You will experience better ride quality in all road conditions
2017 2018 2019 2020 Hyundai Elantra Sedan (AD)
Hyundai Elantra AD Coilovers & Shock Absorbers FAQ
Q1: Will these coilovers fit my 2017-2020 Hyundai Elantra Sedan AD?
A1: Yes, this Flashark coilover kit is designed for the 2017, 2018, 2019, and 2020 Hyundai Elantra Sedan AD. Before ordering, confirm your vehicle is the Sedan AD platform and check your current suspension setup, especially if the car has been modified or repaired with non-original parts.
Q2: Will these fit a 2017 Hyundai Elantra?
A2: Yes, the product page lists fitment for the 2017 Hyundai Elantra Sedan AD. If you are searching for 2017 Hyundai Elantra front struts, Hyundai Elantra 2017 shock absorber, or Elantra Sedan AD coilovers, this kit is designed as a full suspension upgrade rather than a single factory-style replacement strut.
Q3: Are these for the Elantra Sedan only, or will they fit the Elantra GT hatchback?
A3: This product page is specifically for the 2017-2020 Hyundai Elantra Sedan AD. Do not assume fitment for the Elantra GT, hatchback, Elantra Sport, or other Hyundai models unless the fitment checker or Flashark support confirms compatibility.
Q4: Are these Hyundai Elantra shock absorbers, struts, or full coilovers?
A4: This is a complete coilover shock absorber and strut kit, not just basic replacement shocks. It upgrades the front and rear suspension together with adjustable ride height, 32-way damping adjustment, matched springs, and included height adjustment tools.
Q5: What comes in this Flashark Hyundai Elantra coilover kit?
A5: This kit is designed as a 4-piece coilover shock absorber and strut setup for the Hyundai Elantra Sedan AD. It includes front and rear coilover components, plus height adjustment tools, so you can lower and fine-tune the suspension during installation.
Q6: How much can these Elantra AD coilovers lower the car?
A6: The product page lists adjustable lowering from about 2 inches to 4 inches. A moderate drop is usually better for daily driving, tire clearance, and driveway clearance, while a more aggressive drop creates a lower stance but may require extra attention to alignment and wheel fitment.
Q7: Do these coilovers have 32-way damping adjustment?
A7: Yes, these Flashark Hyundai Elantra Sedan AD coilovers feature 32-way damping force adjustment. This allows you to tune the ride softer for city driving or firmer for more responsive handling, depending on road conditions, tire setup, and driving style.
Q8: Are these coilovers good for daily driving?
A8: Yes, they can work well for a daily-driven 2017-2020 Hyundai Elantra Sedan AD when installed and adjusted correctly. For street use, avoid setting the car extremely low and start with a softer-to-middle damping setting before making the suspension firmer.
Q9: What spring rates do these Hyundai Elantra coilovers use?
A9: The product page lists a 6 kg/mm front spring rate, or about 336 lbs/in, and a 4 kg/mm rear spring rate, or about 224 lbs/in. This setup is designed to feel firmer and more controlled than worn factory shocks and struts while still staying usable for street driving.
Q10: What shock type is listed for this coilover kit?
A10: The specifications list the shock type as mono-tube. This setup is paired with 32-way damping adjustment, spring preload adjustment, and separate ride height adjustment to help improve suspension response and setup flexibility.
Q11: Do these coilovers use rubber top mounts?
A11: Yes, the product page notes that the kit uses rubber top mounts and rubber joints. This is helpful for street cars because rubber mounting points can absorb harsh impacts and make the ride smoother and more forgiving for city use.
Q12: Will lowering my Elantra cause tire rubbing?
A12: Tire rubbing depends on ride height, wheel width, wheel offset, tire size, camber, and fender clearance. If you lower the car aggressively or run wider wheels, you may need a higher ride height, alignment correction, different tire sizing, or additional fender clearance work.
Q13: Do I need an alignment after installing these coilovers?
A13: Yes. A professional wheel alignment is strongly recommended after installing Hyundai Elantra coilovers or changing ride height. Lowering the car can change camber, toe, steering feel, and tire wear, so alignment is critical for safe handling and long-term tire life.
Q14: Can I install these Hyundai Elantra coilovers myself?
A14: An experienced DIY installer with proper tools may be able to install them, but professional installation is recommended for most buyers. Coilover installation affects ride height, alignment, braking stability, and suspension safety, so the setup should be done carefully.
Q15: Why choose Flashark coilovers instead of basic Elantra replacement struts?
A15: Basic Hyundai Elantra replacement struts mainly restore factory-style ride control, while Flashark coilovers add adjustable lowering, 32-way damping, firmer spring control, rebuildable construction, and a more aggressive stance. If you want your 2017-2020 Hyundai Elantra Sedan AD to sit lower, feel tighter, and handle more confidently, this kit is a stronger upgrade than stock-style shock absorbers and struts.
