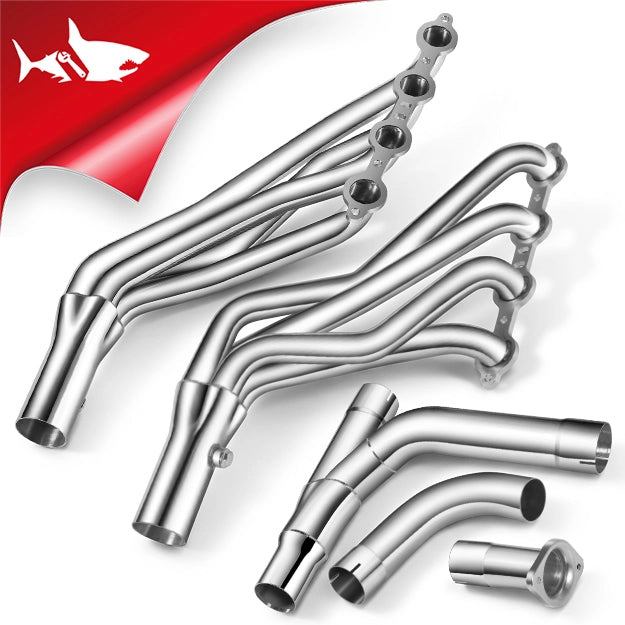

Header for 2002-2006 Chevrolet Avalanche 1500 4.8L/5.3L/6.0L with Optional Cold Air Intake

Q1: What exact vehicle models and engines does this Flashark long tube header kit fit?

A1: This performance kit is specifically engineered for the 2002-2006 Chevrolet Avalanche 1500 equipped with the 2WD (Two-Wheel Drive) drivetrain and Vortec V8 engines, including the 4.8L, 5.3L, and 6.0L configurations. It also serves as an excellent upgrade for classic GMT800 platform trucks sharing identical chassis layouts. Please note it is tailored specifically for 1500 series applications to ensure optimal clearance around steering components and subframes.

Q2: Will this Flashark exhaust header fit a 4WD (4x4) Chevy Avalanche 1500?

A2: No, these long tube headers are meticulously designed and optimized exclusively for 2WD models. The front differential, transfer case, and front driveshaft configuration on a 4WD (4x4) Chevy Avalanche create major clearance constraints that will prevent these specific long tubes from routing properly. Making structural modifications to try and fit them on a 4WD vehicle is not recommended.

Q3: Why should I choose the Header + 4" Cold Air Intake Kit combo package over the header alone?

A3: Opting for the complete Header + 4" Cold Air Intake Kit combo maximizes your volumetric efficiency through a comprehensive "air-in, air-out" upgrade. While the long tube headers drastically minimize exhaust backpressure, the 4-inch mandrel-bent cold air intake replaces your restrictive factory air box to feed massive amounts of fresh, dense oxygen into your engine. Combining both upgrades balances your engine's airflow dynamics, unlocking greater peak horsepower, sharper throttle response, and a more pronounced muscle-truck growl than upgrading the exhaust alone.

Q4: What are the exact inlet, outlet, and piping dimensions of these Chevy Avalanche long tube headers?

A4: Engineered for maximum exhaust gas scavenging, this high-performance setup features an primary inlet size of 1.83 inches and a primary manifold outlet of 2.84 inches. The layout consists of dual 4-into-1 long-tube manifolds that smoothly merge into a highly efficient 3-inch Y-pipe. This precision geometry accelerates exhaust gas velocity, minimizing heat soak and maximizing low-to-mid range torque output.

Q5: Does this header package include a Y-pipe and all required installation hardware?

A5: Yes, when you purchase the Flashark header kit, it comes complete with the matching high-flow performance 3-inch Y-pipe to ensure efficient routing into your remaining exhaust system. Additionally, the box includes all necessary assembly hardware, mounting bolts, and heavy-duty gaskets as shown in the product images to facilitate a straightforward installation process.

Q6: How much horsepower and torque gains can I expect from installing these Avalanche 1500 headers?

A6: Upgrading to the Flashark long tube headers replaces your restrictive, heat-retaining stock cast iron manifolds. By giving each engine cylinder a clear, unrestrictive exhaust pathway, you can expect an instant performance gain of 10 to 15 horsepower along with a noticeable bump in low-end torque. When paired with the optional 4" cold air intake and a proper ECU calibration tune, your real-world gains can increase even further.

Q7: Will I need to modify anything if my Chevy Avalanche is equipped with a 4L80E transmission?

A7: While this kit is designed as a direct-fit bolt-on system for standard factory transmissions, vehicles swapped with or utilizing the larger heavy-duty 4L80E automatic transmission may experience tight clearances around the transmission case. In these specific custom setups, a minor trimming of the transmission bellhousing ears may be required to clear the header tubes perfectly.

Q8: What material is used to construct the Flashark Avalanche 1500 performance headers?

A8: To withstand extreme thermal cycles and off-road driving stresses, these long tube headers are fabricated from high-grade, durable stainless steel (available in premium options such as T-304, T-201, or T-409 based on your selection). The pipes are mandrel-bent for completely smooth, restriction-free internal airflow and feature TIG-welded, CNC-machined flanges that provide an ultra-flat face for an airtight, leak-proof seal against your cylinder head.

Q9: Can these long tube headers be installed on a 2002-2006 Chevy Avalanche 2500 model?

A9: No, this kit will not fit the Avalanche 2500 series. The heavy-duty 2500 chassis features a completely different frame layout, wider track width, and larger suspension configurations inherited from the 3/4-ton truck platform. These differences create severe clearance interference, making this kit strictly compatible with 1500 series light-duty truck frames only.

Q10: Will installing these aftermarket catless long tube headers trigger a Check Engine Light (CEL)?

A10: Yes, because this performance racing header layout replaces your stock primary manifolds and alters factory catalytic converter parameters, your secondary O2 sensors will detect the enhanced exhaust flow and trigger a Check Engine Light (CEL) on your dash. For track use and peak engine performance, we highly recommend utilizing an aftermarket ECU software programmer or custom tune to adjust emissions monitoring and optimize your air-fuel maps.

Q11: How does this exhaust header and cold air intake kit upgrade affect the sound of my truck?

A11: This kit completely redefines the acoustic profile of your Vortec V8. At idle, your Avalanche 1500 will retain a smooth, deep, and authoritative rumble. Under hard acceleration, the unrestricted long tubes and 4-inch cold air intake join forces to unleash a crisp, aggressive American V8 muscle car roar. Thanks to the precise mandrel bends, internal exhaust turbulence is minimized, helping to limit annoying interior cabin drone during long highway cruising.

Q12: Is professional installation recommended for this Avalanche 1500 header and Y-pipe kit?

A12: Yes, professional installation by an experienced car modification engineering technician or professional exhaust shop is highly recommended. While the kit features pre-drilled CNC flanges and direct bolt-on mounting points, working within a tight truck engine bay, routing long tubes around steering columns, and dealing with aged factory manifold bolts requires specialized tools and mechanical experience to ensure a completely leak-free seal.
