2013–2018 Ram 2500/3500 6.7L Cummins DPF Delete Race Pipe
Choose the exhaust configuration that matches your truck and the amount of exhaust system being replaced. These 4-inch and 5-inch DPF delete race-pipe options are listed for selected 2013–2018 Ram 2500 and Ram 3500 pickups equipped with the 6.7L Cummins diesel engine.
This product replaces applicable sections of the factory diesel exhaust aftertreatment system. It is not an EGR delete kit, CCV reroute kit, electronic tuner, or complete multi-system delete package.
Vehicle Fitment
| Model Years | 2013, 2014, 2015, 2016, 2017 and 2018 |
|---|---|
| Make and Models | Ram 2500 and Ram 3500 pickups |
| Engine | 6.7L Cummins diesel |
| Listed Cab and Bed Configurations | Crew Cab Short Bed, Crew Cab Long Bed and Mega Cab |
| Excluded Configurations | Regular Cab & Chassis commercial-style trucks and trucks equipped with air-ride suspension |
- Listed fitments only.
- Match the selected SKU to the truck’s factory exhaust and emissions layout.
- Suspension changes and other exhaust modifications can affect alignment and installation.
- Shorter wheelbase or bed/cab configurations may require cutting.
Available Configurations
| SKU | Configuration | Pipe Diameter |
|---|---|---|

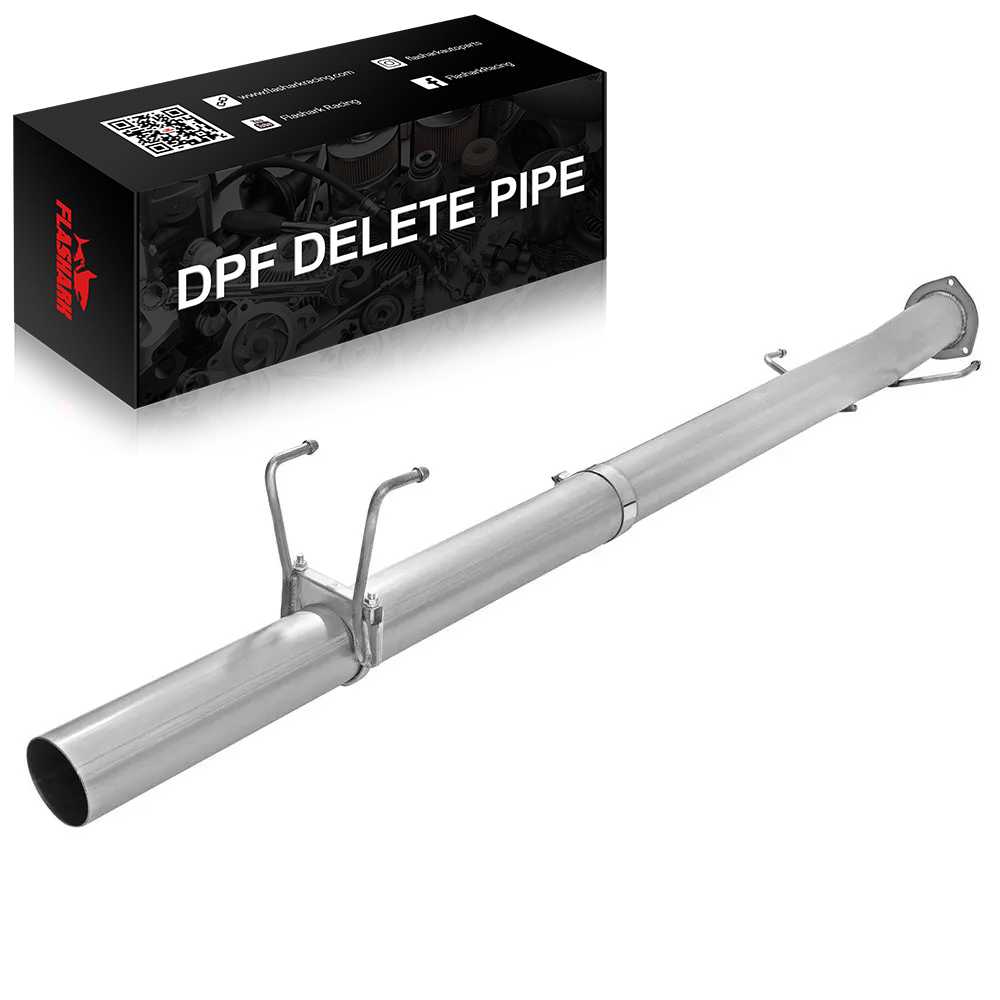

| FLES08101 | DPF race pipe | 4 inch |

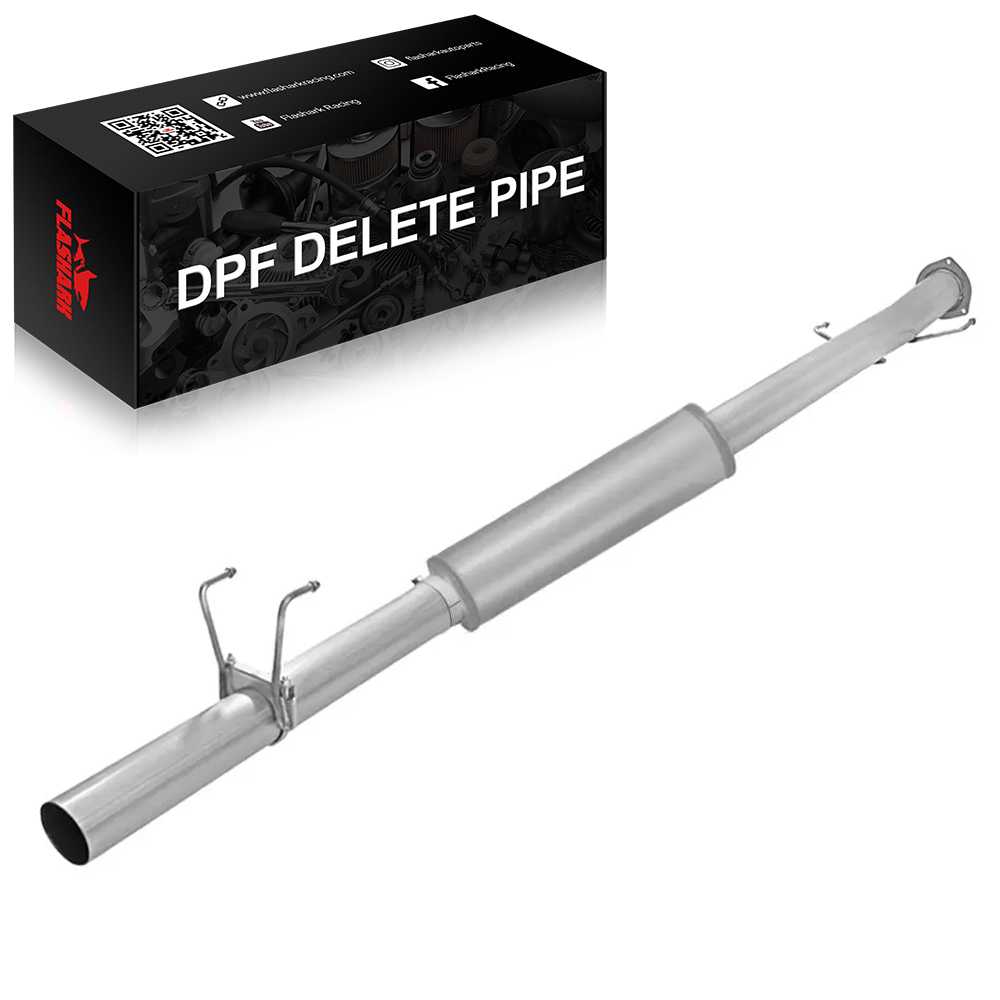

| FLES08112 | DPF race pipe with muffler | 4 inch |

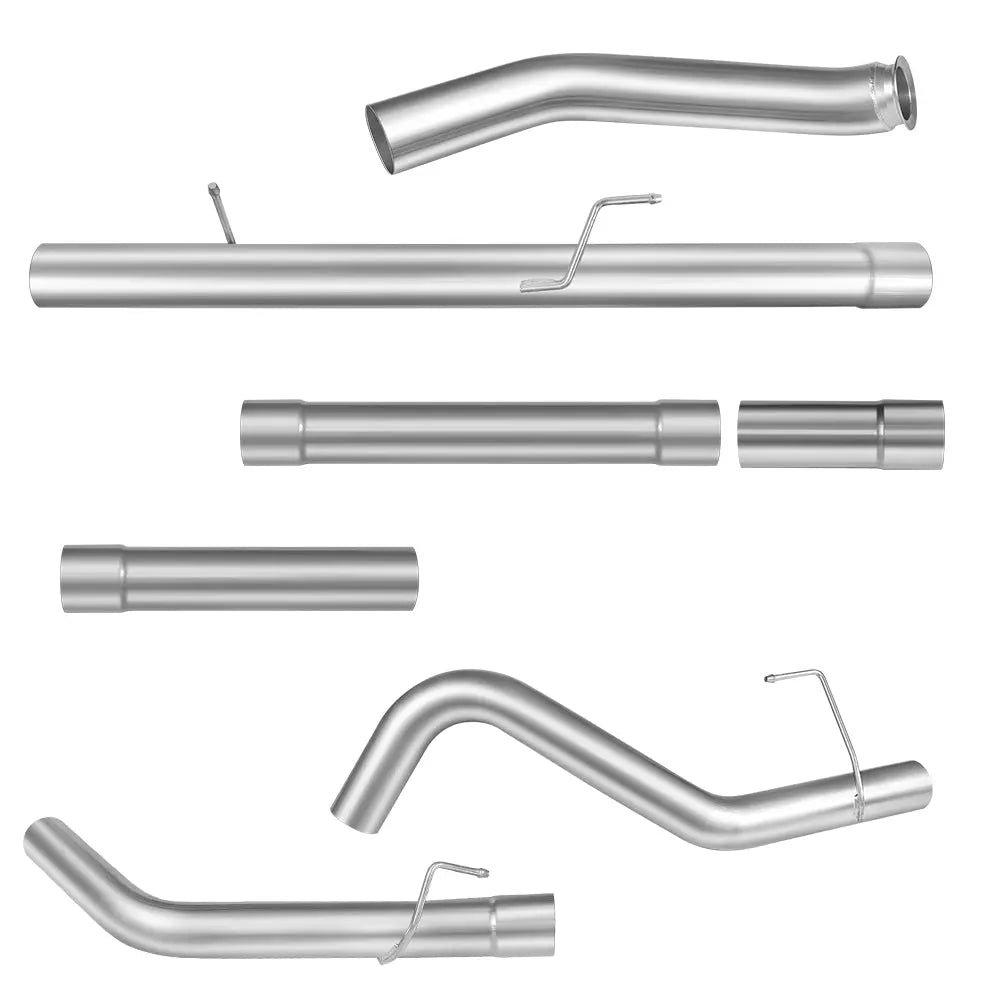

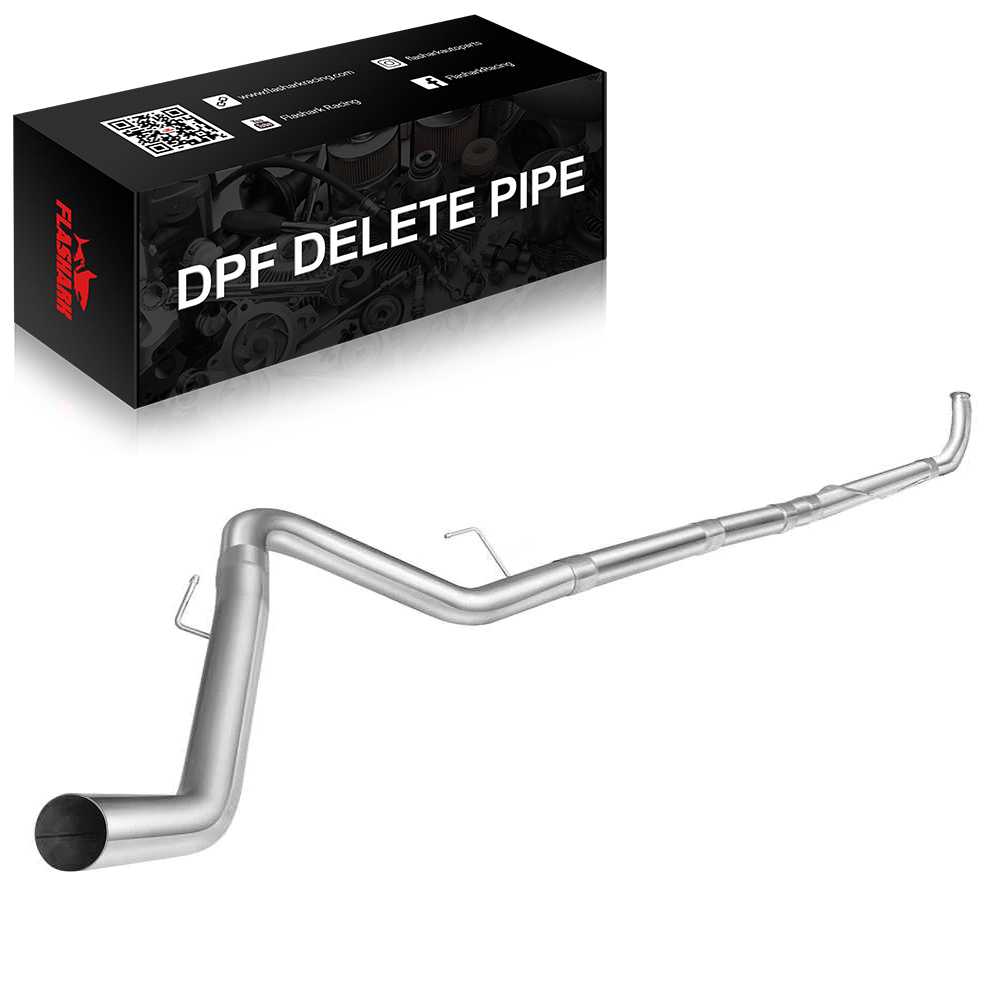

| FLES08065 | Turbo-back exhaust | 4 inch |

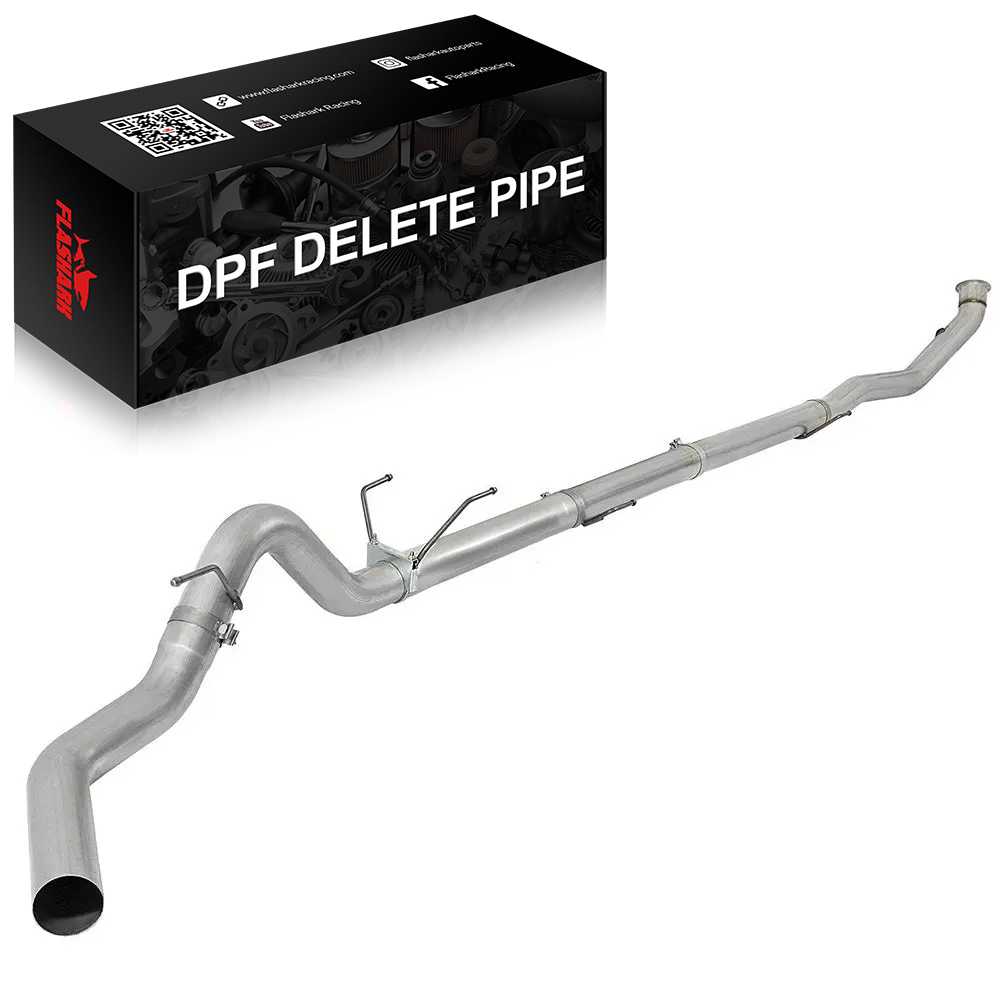

| FLES08109 | Turbo-back exhaust | 5 inch |
Components and exhaust coverage differ between the race-pipe, muffler-equipped and turbo-back configurations. Select the required configuration before ordering.
Specifications
| Product Type | DPF delete race-pipe and turbo-back exhaust configurations |
|---|---|
| Material | SUS409 stainless steel |
| Material Thickness | 2 mm |
| Available Diameters | 4 inch and 5 inch, depending on the selected configuration |
| Available Styles | Race pipe, race pipe with muffler and turbo-back exhaust |
| Tuning | Compatible DPF-delete calibration required; tuner and calibration are not included |
Key Features
- Configuration-specific exhaust options: Select a 4-inch race pipe, 4-inch race pipe with muffler, 4-inch turbo-back exhaust or 5-inch turbo-back exhaust.
- SUS409 stainless-steel construction: The exhaust tubing is made from 2 mm SUS409 stainless steel for use in a diesel exhaust environment.
- Factory exhaust routing: FLES08101 installs between the flanged downpipe connection and the inlet of the tailpipe assembly.
- Factory hanger location: The FLES08101 clamp and hanger assembly uses the applicable OEM rubber hanger location.
- Configuration-specific components: Pipe count, exhaust coverage and muffler content depend on the selected SKU.
What This DPF Delete Pipe Changes
The diesel particulate filter is part of the factory exhaust aftertreatment and regeneration system. Installing a DPF delete race pipe replaces the applicable emissions-related exhaust section with a straight-through pipe assembly.
For FLES08101, installation involves removing the factory DPF/SCR exhaust section, disconnecting the related sensors and DEF injector connections, and installing the replacement pipe sections between the existing downpipe and tailpipe assembly.
This mechanical change affects the factory sensors, diagnostic monitoring and regeneration strategy. It does not block the EGR system or reroute crankcase ventilation.
What Is Included

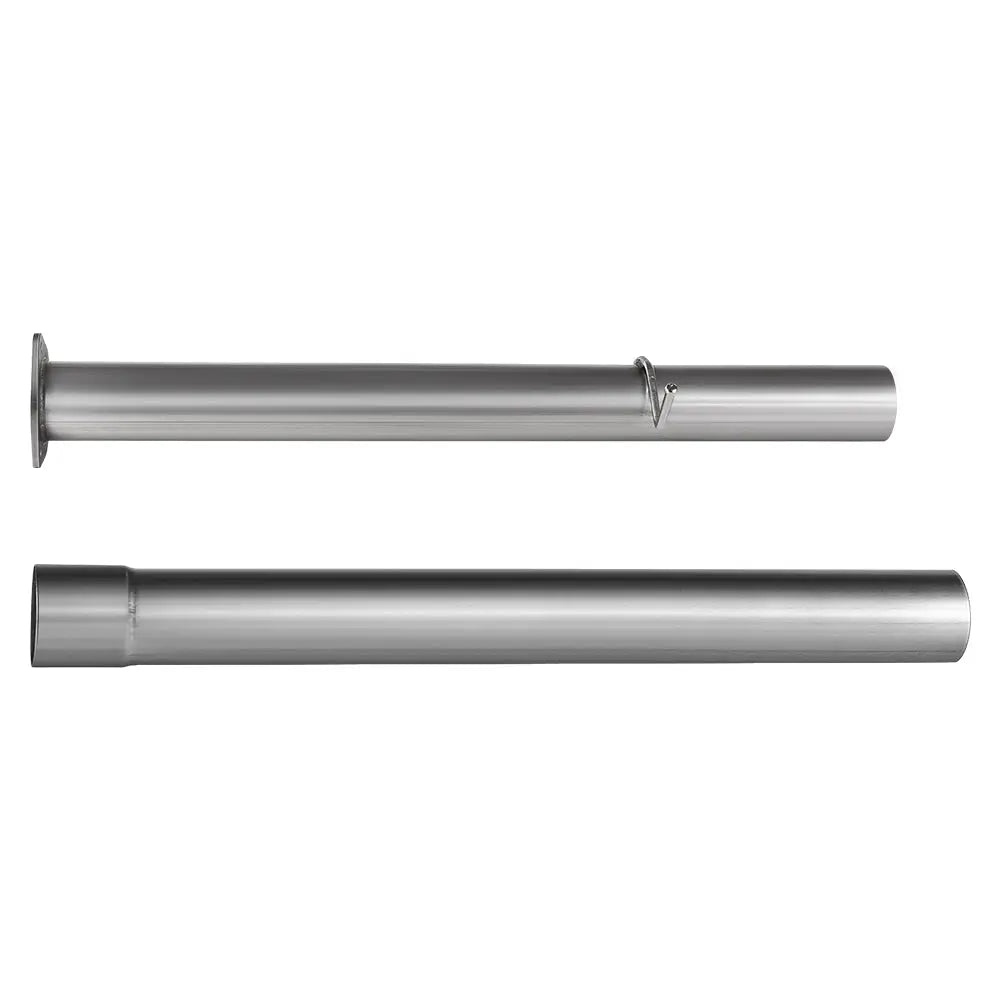

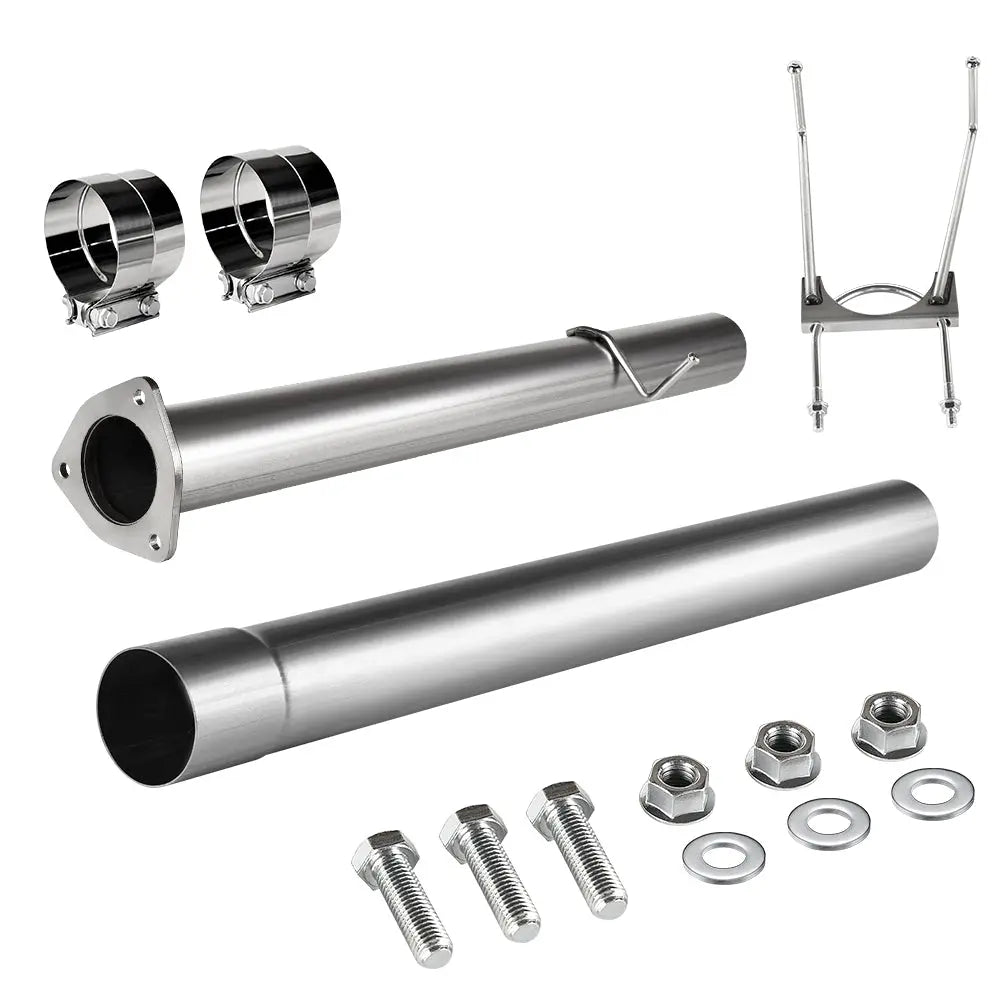

FLES08101 — 4-Inch DPF Race Pipe
- Pipe section 51413
- Pipe section 51414
- SS70 clamp and hanger assembly
Package contents vary by selected configuration. Components differ between FLES08101, FLES08112, FLES08065 and FLES08109.
Tune and Additional Requirements
A compatible DPF-delete calibration is required when the factory aftertreatment hardware and related sensor connections are removed. A tuner, tune file and programming service are not included with this exhaust product.
Operating the truck without the required compatible calibration can result in a check-engine light, diagnostic trouble codes, interrupted regeneration logic, reduced-power operation or limp mode. Results depend on the vehicle calibration, selected exhaust configuration, sensor layout and installation quality; warning-free operation cannot be guaranteed.
A separately sold Mini Maxx V2 tuner is available. Match tuner compatibility to the vehicle model year and calibration before purchase.
Installation Notes
- Allow the exhaust system to cool completely before removal.
- Support the vehicle safely and use appropriate protective equipment.
- Remove the associated sensors and DEF injector connections before removing the factory DPF/SCR exhaust section.
- Some factory hardware and OEM rubber hanger locations are reused.
- Shorter wheelbase or bed/cab configurations may require cutting.
- Suspension lifts and other vehicle modifications can require exhaust alignment adjustments.
- Position clamps before joining the pipe sections.
- Adjust pipe routing and clearance before evenly tightening the connections from front to rear.
- Check all joints, clamps, hangers and clearances for exhaust leaks or contact before operating the truck.
- Professional installation is recommended.
View the online installation guide
Download the FLES08101 installation instructions
Who This Product Is For
- Owners of a listed 2013–2018 Ram 2500 or Ram 3500 pickup with the 6.7L Cummins diesel engine.
- Buyers who have matched the selected SKU to the truck’s original exhaust layout.
- Vehicles prepared for compatible calibration and the associated exhaust installation work.
- Owners who understand that the product changes the factory emissions and regeneration system.
Who Should Not Buy This Product
- Owners who need to retain the factory-certified emissions configuration.
- Regular Cab & Chassis commercial-style trucks.
- Trucks equipped with air-ride suspension.
- Vehicles outside the listed 2013–2018 Ram 2500/3500 6.7L Cummins fitment.
- Buyers without a compatible tuning and calibration solution.
- Buyers seeking an EGR delete kit, CCV reroute kit, tuner or complete multi-system delete package in this product.
- Anyone expecting guaranteed freedom from warning lights, diagnostic codes, reduced-power operation or emissions-inspection issues.
Related Components
An EGR delete kit for listed 2013–2018 Ram 6.7L Cummins applications is sold separately. The EGR kit changes a different factory system and is not included with this DPF delete exhaust product.
Emissions and Road-Use Notice
This product removes or replaces emissions-related exhaust components and changes the vehicle’s original emissions-control configuration. Removing or rendering required emissions equipment inoperative may violate federal, state or local law.
Race-use labeling does not establish legal use for a particular vehicle or location. This product is not represented as street legal, emissions compliant or inspection ready. Check all laws and vehicle-use requirements that apply to you before purchase or installation.
Emissions-system modifications can affect inspection eligibility, registration, manufacturer warranty and insurance coverage.
Shipping & Returns
Free U.S. Shipping: Orders are typically processed within 1–2 business days and delivered within 7–9 business days. Additional charges may apply to remote areas.
30-Day Returns: Unopened and unused items in their original packaging may be returned within 30 days of receipt. Return shipping is covered for verified quality issues.
Worry-Free Delivery: Optional protection against eligible loss, theft, delay, or transit damage is available at checkout.
2013–2018 Ram 6.7L Cummins DPF Delete Pipe FAQs
Q1: What factory system does this product change?
A1: It replaces applicable sections of the factory diesel exhaust aftertreatment system with a race-pipe or turbo-back exhaust configuration.
Q2: Is this an EGR delete kit or CCV reroute kit?
A2: No. It is DPF-related exhaust hardware. It does not block the EGR system or reroute crankcase ventilation.
Q3: Which vehicles are included in the listed fitment?
A3: The listed fitment covers 2013–2018 Ram 2500 and Ram 3500 pickups with the 6.7L Cummins diesel engine in Crew Cab Short Bed, Crew Cab Long Bed and Mega Cab configurations.
Q4: Which trucks are excluded?
A4: Regular Cab & Chassis commercial-style trucks and trucks equipped with air-ride suspension are excluded.
Q5: What is the difference between the four configurations?
A5: FLES08101 is a 4-inch race pipe, FLES08112 is a 4-inch race pipe with muffler, FLES08065 is a 4-inch turbo-back exhaust and FLES08109 is a 5-inch turbo-back exhaust.
Q6: What is included with FLES08101?
A6: FLES08101 includes pipe sections 51413 and 51414 plus the SS70 clamp and hanger assembly.
Q7: Are the package contents identical for every SKU?
A7: No. Components and exhaust coverage differ between the race-pipe, muffler-equipped and turbo-back configurations. Select the required SKU before ordering.
Q8: Does the product include a tuner or tune file?
A8: No. A tuner, tune file and programming service are not included with the exhaust hardware.
Q9: Is compatible tuning required?
A9: Yes. Removing the factory aftertreatment hardware and related sensor connections requires a compatible DPF-delete calibration.
Q10: Can the truck show a check-engine light or enter limp mode?
A10: Yes. An incompatible or missing calibration can cause diagnostic trouble codes, interrupted regeneration logic, reduced-power operation or limp mode. Warning-free operation cannot be guaranteed.
Q11: Can installation require cutting?
A11: Cutting may be required on shorter wheelbase or bed/cab configurations. Existing suspension and exhaust modifications can also affect alignment.
Q12: Is professional installation recommended?
A12: Yes. Installation involves removing emissions-related exhaust hardware, disconnecting sensors and DEF injector connections, aligning pipe sections and checking all joints for leaks and clearance.
Q13: Is this product street legal or emissions compliant?
A13: It is not represented as street legal, emissions compliant or inspection ready. Removing or rendering required emissions equipment inoperative may violate federal, state or local law.
Q14: Can this modification affect warranty, registration or insurance?
A14: Yes. Changes to the original emissions-control system can affect inspection eligibility, registration, manufacturer warranty and insurance coverage.
Q15: Who should not buy this product?
A15: It is not suitable for owners who need to retain the factory emissions configuration, have an excluded vehicle, lack compatible tuning or require a guarantee of road legality or emissions-test eligibility.
