The 1996-1998 Civic EX, HX, Si, and EX-R arrived with Honda's D16Y7/D16Y8 engines — but the factory airbox was designed for fuel economy, not performance. The multi-chamber plastic intake tract, restrictive paper filter, and noise-tuned resonator box choke the D-series engine before air even reaches the throttle body. On an engine that already works hard to make power above 4,000 RPM, that restriction results in a lazy throttle tip-in and a VTEC crossover that never sounds as aggressive as it should.
The FLASHARK Cold Air Intake Kit replaces the entire factory airbox and intake tract with a mandrel-bent 6061 aluminum tube, a dry high-flow cone filter, and a black powder-coated steel heat shield. On a near-stock D16Y7 or D16Y8 engine, expect 5-10 wheel horsepower — with the most noticeable gains in the 3,000-6,000 RPM mid-range where the D-series does its real work. No ECU tune required; the factory MAP-based system adapts automatically.
Installation is a true bolt-on — 45 minutes with basic hand tools, no cutting or drilling. Beyond the numbers, the intake transforms the driving experience: sharper throttle response at every RPM and, on D16Y8-equipped trims (EX/Si/EX-R), an unmistakable VTEC crossover growl that the factory resonator spent years trying to silence. Compatible with both manual and automatic transmissions, coupe and sedan.
Key Features

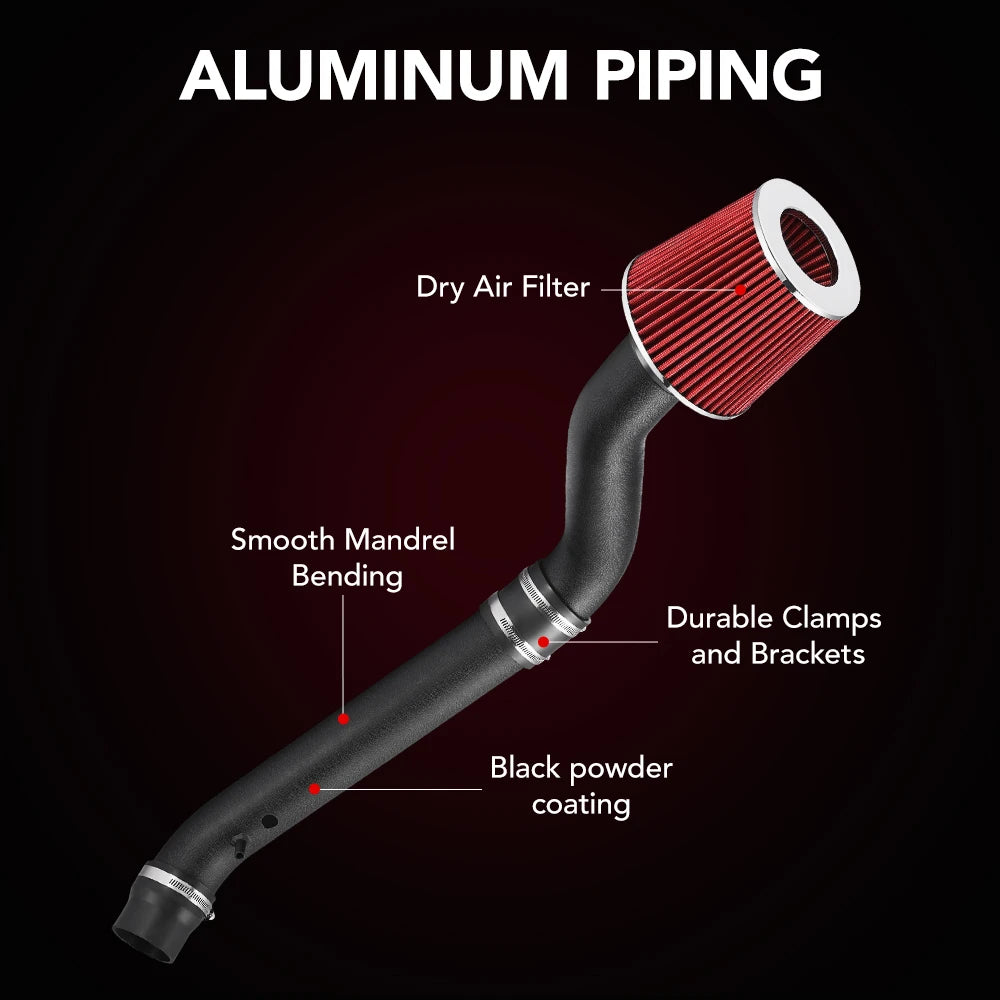

Mandrel-Bent Aluminum Intake Tube — 6061 aluminum with a black powder-coated finish and a smooth internal surface for maximum airflow velocity. Corrosion-resistant and built to outlast the car.
High-Flow Dry Cone Filter — Red cotton gauze media, no oil required. Captures 95%+ of airborne particles without the MAF contamination risk of oiled filters. Fully washable and reusable.
Black Powder-Coated Steel Heat Shield — Shields the filter from exhaust manifold and radiator heat, keeping intake air cooler and denser for more consistent power.
True Bolt-On Installation — Uses factory mounting points and all OEM sensor provisions. No cutting, drilling, or permanent modifications. ~45 minutes with basic hand tools.
MAP Sensor Compatible — Designed for the EK Civic's speed-density (MAP) fuel system. No MAF recalibration needed — the factory ECU adapts automatically via fuel trim learning.
Aggressive Induction Sound — Deep intake growl under throttle, with an unmistakable VTEC crossover roar on D16Y8-equipped trims (EX/Si).
Specifications
Brand: FLASHARK
SKU: FLIS25011
Material: 6061 Aluminum tubing
Tubing Finish: Black powder-coated
Tube Diameter: 3.0" (76mm)
Filter Type: Dry
Filter Media: Cotton gauze
Filter Style: Cone
Filter Color: Red
Installation: Bolt-on, ~45 minutes
Warranty: 1 Year
Package Includes
2x Black powder-coated 6061 aluminum mandrel-bent intake tube
1x Red dry cotton gauze cone air filter
1x Silicone coupler
5x Stainless steel hose clamps
1x Vacuum hose and fittings
1x Mounting bracket and hardware kit
1996-1998 Honda Civic EX / HX / Si / EXR Cold Air Intake FAQ
Q1: What Honda Civic models does this cold air intake fit?
A1: This cold air intake kit is designed for 1996, 1997, and 1998 Honda Civic models including EX, HX, Si, and EXR trims. It is intended for D-series and compatible engine configurations in the EK chassis. Always confirm your engine bay layout before ordering.
Q2: Will this intake fit a 1998 Honda Civic EX or HX?
A2: Yes, it is compatible with 1998 Honda Civic EX and HX models as long as the vehicle retains its factory-style intake and throttle body setup. It is a direct bolt-on upgrade without cutting or permanent modification.
Q3: Does this cold air intake fit a Civic Si or EXR?
A3: Yes, this intake is compatible with 1996–1998 Civic Si and EXR models. However, always verify engine configuration, as some Si/EXR variants may have slight regional differences in intake routing.
Q4: Do I need a tune after installing this Civic cold air intake?
A4: No ECU tune is required. The factory ECU can automatically adjust air-fuel ratios for a bolt-on intake. However, a tune may improve throttle response and overall performance if combined with other modifications.
Q5: How much horsepower does a cold air intake add to a 1996-1998 Civic?
A5: On a mostly stock D-series engine, expected gains are typically 5–10 horsepower depending on supporting mods and airflow conditions. The most noticeable improvement is throttle response and intake sound rather than peak horsepower.
Q6: Will this intake improve fuel economy?
A6: Fuel economy improvement is not guaranteed. While smoother airflow can improve efficiency in some driving conditions, aggressive driving due to increased throttle response may offset any MPG gains.
Q7: Will this cold air intake cause a check engine light?
A7: A properly installed intake should not trigger a check engine light. CEL issues usually come from loose clamps, incorrect sensor connection, or vacuum leaks after installation.
Q8: Is this a true cold air intake or short ram intake?
A8: This kit is designed as a cold air intake system that routes airflow away from engine heat as much as possible. Proper installation and positioning are important to minimize heat soak and maximize performance.
Q9: Does this intake work with automatic and manual transmission Civics?
A9: Yes, it is compatible with both automatic and manual transmission models as long as the engine and intake layout match the 1996–1998 Civic EX/HX/Si/EXR configuration.
Q10: Will this intake make my Civic louder?
A10: Yes. You will notice a deeper intake tone and stronger induction sound during acceleration. This is one of the most noticeable benefits of upgrading from the factory airbox.
Q11: Is installation difficult for this Civic intake kit?
A11: Installation is considered beginner-friendly and usually takes 30–60 minutes using basic hand tools. No cutting or permanent modification is required.
Q12: Does this intake require MAP or MAF sensor tuning?
A12: Honda Civics in this generation typically use a MAP-based system, so there is no MAF sensor recalibration required. The ECU adapts automatically to airflow changes from bolt-on intake upgrades.
Q13: Can this intake be used in rain or wet conditions?
A13: Yes, normal rain driving is safe. However, avoid deep water or flooding conditions to reduce the risk of water ingestion into the intake system.
Q14: Is the air filter reusable and washable?
A14: Yes, the included high-flow filter is reusable and washable. Regular cleaning helps maintain airflow performance and engine efficiency over time.
Q15: What should I check after installing the intake?
A15: After installation, check all clamps, couplers, and mounting points to ensure there are no air leaks. Also confirm the intake is securely positioned away from heat sources and moving engine components.
| Years | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 1996-1998 | Honda | Civic | EX | 1.6L SOHC D16Y8 (VTEC) |
| 1996-1998 | Honda | Civic | HX | 1.6L SOHC D16Y7 (non-VTEC) |
| 1996-1998 | Honda | Civic | Si | 1.6L SOHC D16Y8 (VTEC) |
| 1996-1998 | Honda | Civic | EX-R | 1.6L SOHC D16Y8 (VTEC) |
Transmission: Compatible with both manual and automatic.
Q: Which Civic trims does this intake fit?
A: This kit is designed for the 1996-1998 Honda Civic EX, HX, Si, and EX-R (Canadian market) with the 1.6L SOHC D-series engine. It fits both D16Y8 (VTEC — EX/Si/EX-R) and D16Y7 (non-VTEC — HX) variants, as they share the same intake manifold bolt pattern and throttle body position. It is compatible with both coupe and sedan body styles, and both manual and automatic transmissions.
Q: Will this fit a Civic CX, DX, or LX?
A: Not guaranteed. The CX/DX/LX trims use a D16Y7 with different intake manifold routing and sensor placement compared to the EX/HX/Si intake layout. Some owners have installed this kit on DX/LX models, but may require adjustments to the vacuum line routing and mounting bracket. We recommend verifying your specific intake manifold layout before ordering. If you're unsure, contact service@flasharkracing.com with a photo of your engine bay.
Q: How much horsepower will I gain?
A: On a near-stock D16Y7 or D16Y8 engine, expect 5-10 wheel horsepower. The most noticeable improvement is not peak HP, but mid-range throttle response — the engine pulls harder from 3,000 RPM to redline, and the VTEC crossover (on D16Y8-equipped trims) feels more aggressive. Gains may be higher when paired with an aftermarket header and exhaust.
Q: Will this make my VTEC louder?
A: Yes — this is one of the most noticeable changes after installation. On D16Y8-equipped trims (EX/Si/EX-R), the intake growl deepens noticeably at the VTEC engagement point (~5,200 RPM), giving you that aggressive crossover bark that the factory airbox silences. Non-VTEC D16Y7 trims (HX) will still get a deeper induction tone under throttle, but without the VTEC-specific character.
Q: Do I need a tune after installing this intake?
A: No. The 1996-1998 Civic uses a speed-density (MAP) fuel management system that automatically compensates for airflow changes through adaptive fuel trim learning. The factory ECU will adjust within normal driving parameters. If you plan to add more significant mods (header, cam, etc.), a tune can optimize — but it's not required for this intake alone.
Q: Is this a true cold air intake or a short ram?
A: This is designed as a cold air intake. The filter is positioned low in the engine bay, away from the exhaust manifold, and the included heat shield blocks radiant heat from the engine block and radiator. Together, these reduce intake air temperatures compared to factory airboxes and short-ram intakes that position the filter directly above the transmission.
Q: Will the check engine light come on after installation?
A: Not if installed correctly. A CEL after intake installation is almost always caused by a loose hose clamp, a vacuum leak, or a sensor connector that wasn't fully seated. Double-check all couplers, vacuum lines, and the MAP sensor connector before starting the engine. If a CEL does appear, use an OBD2 scanner to identify the code — common culprits include P0171 (lean) due to a vacuum leak.
Q: Is this filter oiled or dry? Why does it matter?
A: This kit uses a dry cotton gauze filter — no oil required. This matters because the EK Civic uses a MAP sensor that, while less oil-sensitive than a hot-wire MAF, can still accumulate residue from over-oiled filters. A dry filter eliminates that risk entirely while still providing 95%+ filtration efficiency. It's fully washable with soap and water and reusable for the life of the vehicle.
Q: How difficult is the installation?
A: Beginner-friendly — this is an ideal first mod. You'll need a Phillips screwdriver, a 10mm socket and ratchet, and a flathead screwdriver. The entire process takes about 45 minutes: remove the factory airbox and intake tube, mount the heat shield to the factory bracket points, attach the intake tube with the silicone coupler, connect the vacuum lines and MAP sensor, and secure the filter. No cutting, drilling, or permanent modifications.
Q: Is it safe to drive in the rain?
A: Normal rain driving is safe. The filter sits behind the front bumper but is shielded by the inner fender liner and the heat shield enclosure. However, avoid driving through deep standing water or flooded roads — if the filter becomes submerged, the engine can ingest water (hydrolock), which causes catastrophic engine damage. This is true for any cold air intake, not specific to this kit.
Q: Will this intake pass emissions testing?
A: This intake is designed for off-road and performance use. It may not be CARB-certified and may not pass visual inspection in states with strict emissions requirements (California, New York, etc.). Check your local regulations before purchasing. For California residents: this product is NOT CARB certified (EO# not available). The factory airbox and all emissions equipment must be reinstalled for smog testing.
Q: How often should I clean the filter?
A: Inspect the filter every 15,000 miles or once a year, whichever comes first. In dusty conditions, check more frequently. Cleaning is simple: remove the filter, rinse from the inside out with low-pressure water, let air-dry completely (do not use compressed air), and reinstall. A dedicated dry filter cleaning kit is recommended but not required — mild soap and water work fine. Never oil this filter.
