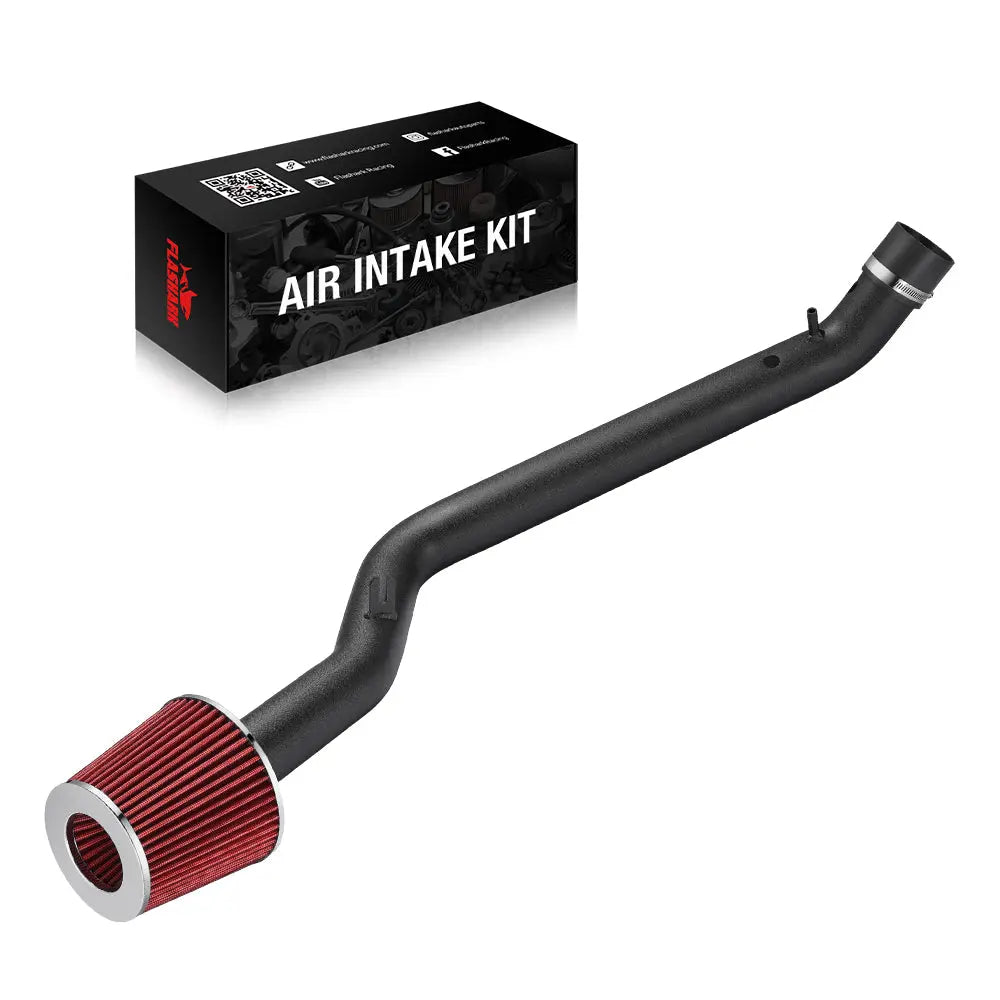

Cold Air Intake Kit for 1996-2000 Honda Civic EX / EX-R Coupe & Sedan 1.6L SOHC VTEC

Key Features

• True Cold Air Routing: The intake tube routes the dry filter into the fender well cavity, drawing cooler, denser air from outside the engine bay instead of the hot underhood air the sealed factory airbox inhales.

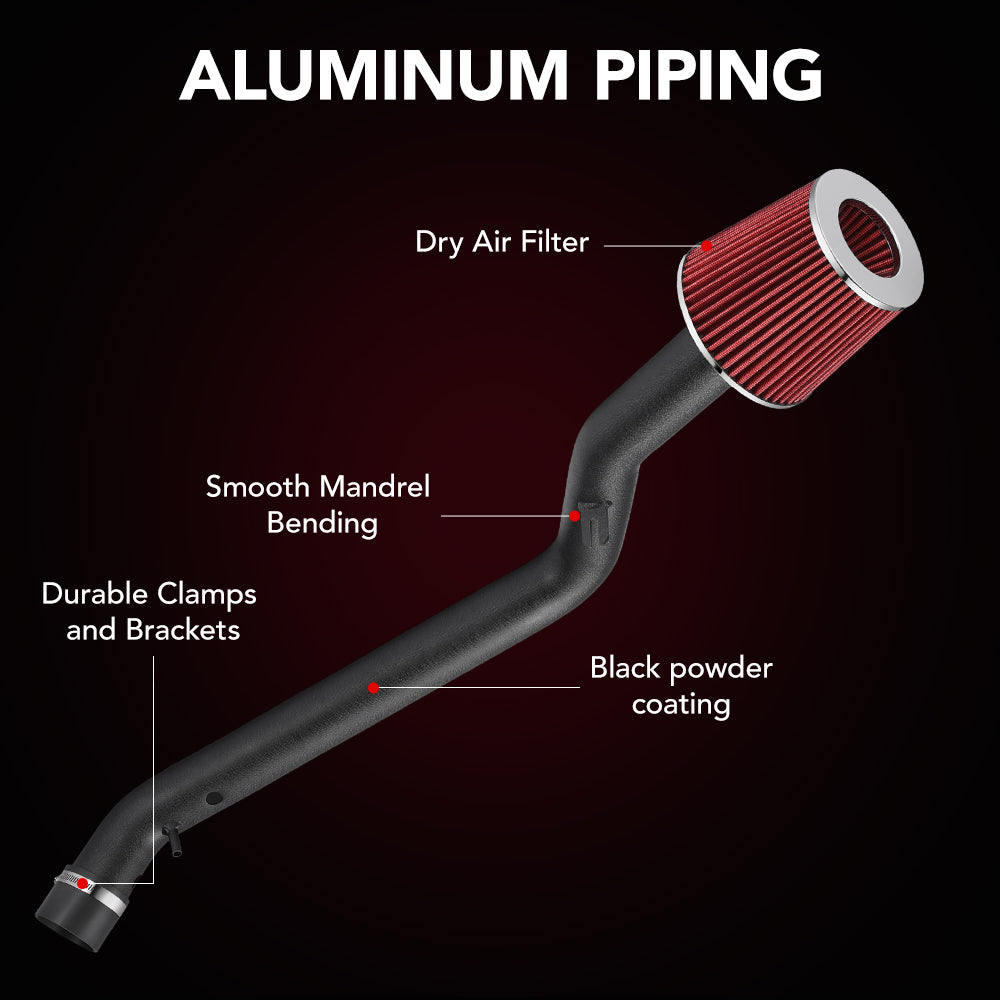

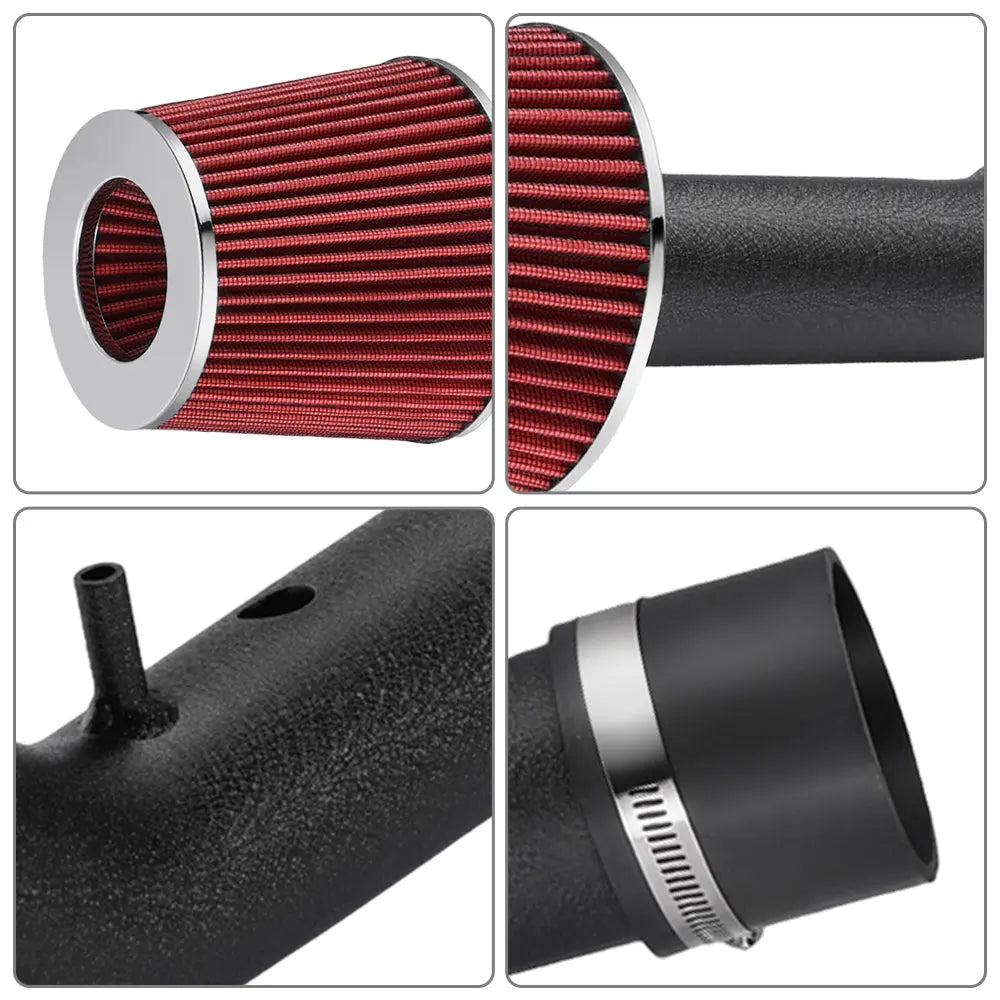

• 63 mm Mandrel-Bent Aluminum Tube: Single-piece construction with integrated sensor mount and heat-resistant matte black finish; smooth internal bore delivers uninterrupted airflow versus the factory-ribbed rubber path.

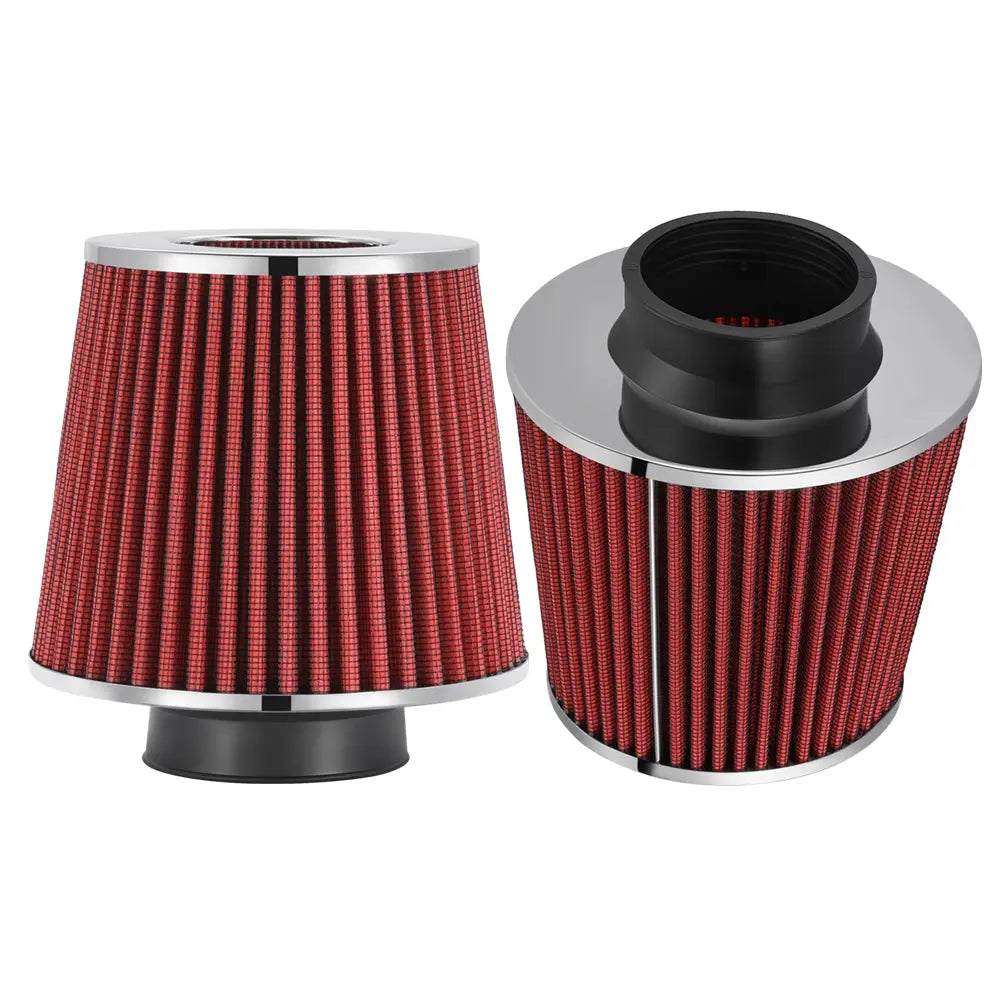

• Dry Cotton Cone Filter: Red cotton-gauze media in a washable, reusable element with no oiling required — no risk of over-oiling the IAT sensor, no recurring consumable cost.
• Factory IAT and MAP Sensor Retention: Designed to keep the D16Y8's IAT and MAP sensor locations and bore so the stock ECU reads intake temperature and manifold pressure within its correction range.
• Complete Bolt-On Hardware Kit: Silicone coupler (63 → 65 mm), two reinforced PCV breather hoses (D15-d9 × 330 mm and D15-d7 × 390 mm), two stainless clamps, aluminum bracket with M6 rubber vibration damper, washer, lock nut, and 2 grommets — everything shown is everything shipped.
• True Bolt-On Installation on EJ8 Coupe and Sedan: Uses all factory mounting points on both the EK Coupe and Sedan (EJ8 chassis); the stock airbox can be reinstalled at any time without permanent modification.
• Open-Element Cold Air Sound: Routing the filter into the fender amplifies the intake resonance — above 4,500 RPM at VTEC engagement the D16Y8 produces a deep, aggressive induction growl; at idle and cruise the note stays subtle.
• Typical Intake-Only Output Range for D16Y8: Approximately 3-8 wheel horsepower on a stock tune; the more noticeable change is sharper throttle response and stronger mid-range pull from 3,500-6,000 RPM. Actual results vary with engine condition, supporting modifications, ambient temperature, and calibration.

Who This Kit Is For

Built for the 1996-2000 Honda Civic EX and EX-R Coupe and Sedan with the 1.6L SOHC VTEC (D16Y8) engine. This kit replaces the sealed factory airbox and ribbed rubber intake tube with a fender-fed open-element cold air intake for owners who want a sharper throttle response, a deeper VTEC induction note, and a reusable dry filter — all without an ECU flash on a stock tune.

✓ A good match if you… drive a 1996-2000 Civic EX or EX-R Coupe/Sedan with the D16Y8 and want a first bolt-on intake upgrade · prefer a washable, oil-free filter over disposable paper elements · want a more audible VTEC induction note above 4,500 RPM · are not in a CARB-adopting state, or are willing to confirm local emissions rules before installation.

✗ Not a match if you… have a Civic DX, LX, CX, or HX (different D-series engine and intake manifold) · have a 1999-2000 Civic Si (B16A2 DOHC VTEC, different intake routing) · expect a guaranteed horsepower number on a single dyno pull · expect a measurable fuel-economy gain (intake air is swappable; economy is dominated by driving habits) · live in California or a CARB-adopting state and need a CARB EO for street use (this SKU does not carry an EO — see Compliance Notice below) · regularly drive through deep standing water without a filter relocation (the filter sits lower than a sealed airbox — see Check Before Ordering).

Looking for a different Civic platform or a short ram option? Browse the full Flashark air intake system lineup for related applications.

Check Before Ordering

1. Vehicle Compatibility: This kit is engineered for the D16Y8 1.6L SOHC VTEC only. Civic DX, LX, CX (D16Y7 non-VTEC), HX (D16Y5 VTEC-E), and 1999-2000 Civic Si (B16A2) use different intake manifolds and throttle body positions and are not compatible. Confirm your engine code from the emissions underhood label or the valve cover stamp before ordering. For other chassis or engine codes, browse the broader Flashark air intake kit lineup.
2. Intake Form Factor: This is an open-element cold air intake that routes the dry filter into the fender well. If you want the simplest install and the loudest intake note without fender routing, see our Honda Civic short ram and cold air intake collection for alternative configurations.
3. Filter Care: The red cotton-gauze element is dry-type and never requires oiling. Clean only with a cotton-gauze filter cleaner per the included instructions; avoid compressed air on the petal blower, which can damage the media. No oiling is needed for the D16Y8 since it uses manifold absolute pressure rather than a hot-wire MAF.
4. Sensors and Throttle Bore: The tube retains the factory IAT and MAP sensor positions and the OEM throttle body bore. No MAF spacer, adapter, or aftermarket sensor is needed.
5. Legal Status: This SKU does not carry a CARB Executive Order. It is not legal for sale or use in California and other CARB-adopting states for emissions-controlled vehicles. See the Compliance Notice below for the full disclosure.
6. Install Space and Water Crossings: Because the filter sits in the fender well (lower than the factory sealed airbox), avoid deep standing water. Normal rain and wet-road driving are fine; deep water crossings can ingest water and cause hydrolock and severe engine damage. If you regularly ford water, plan a filter relocation or a high-mount setup before installation.

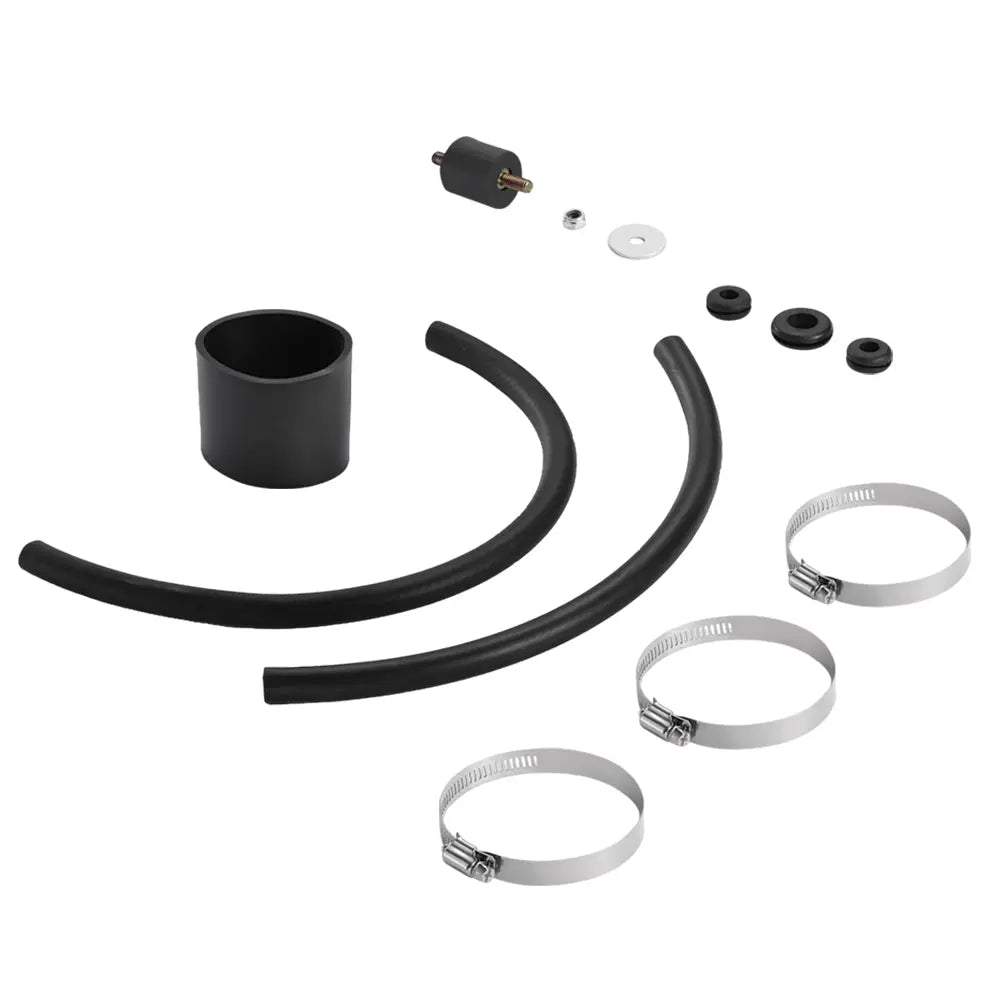

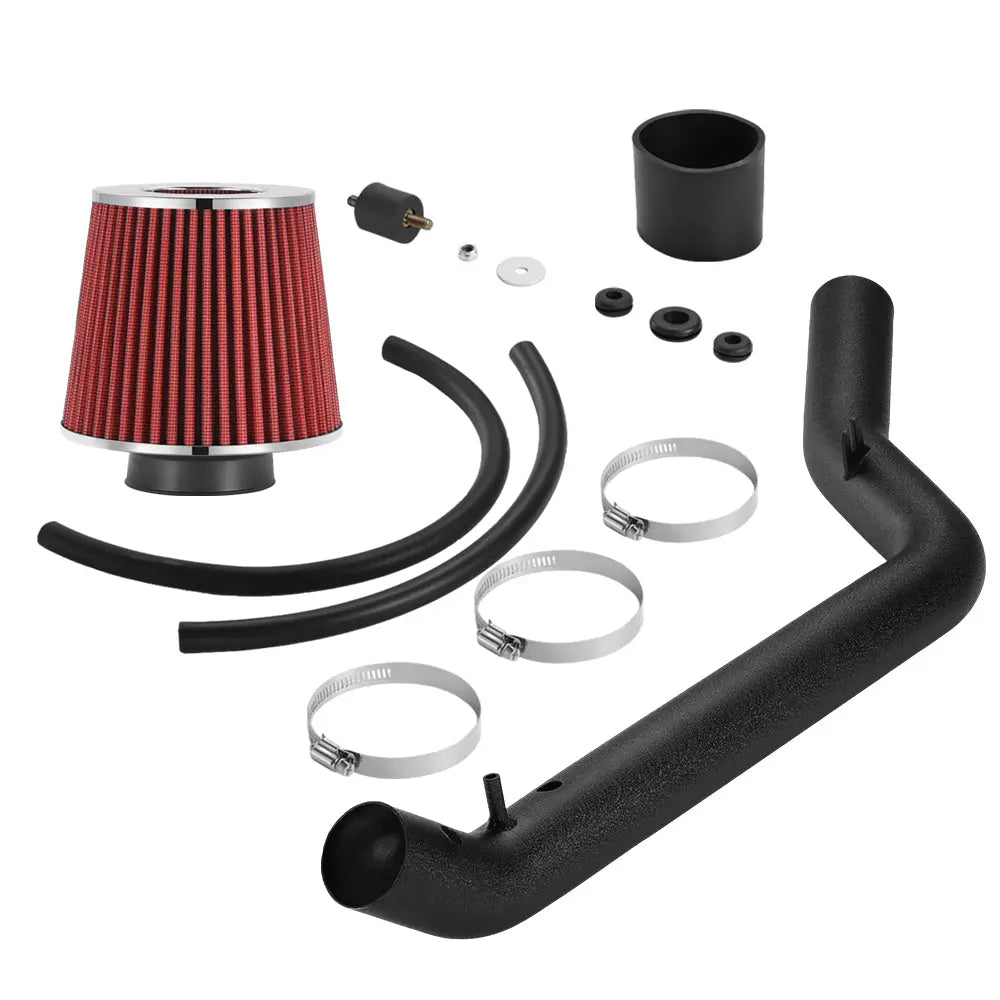

What's in the Box

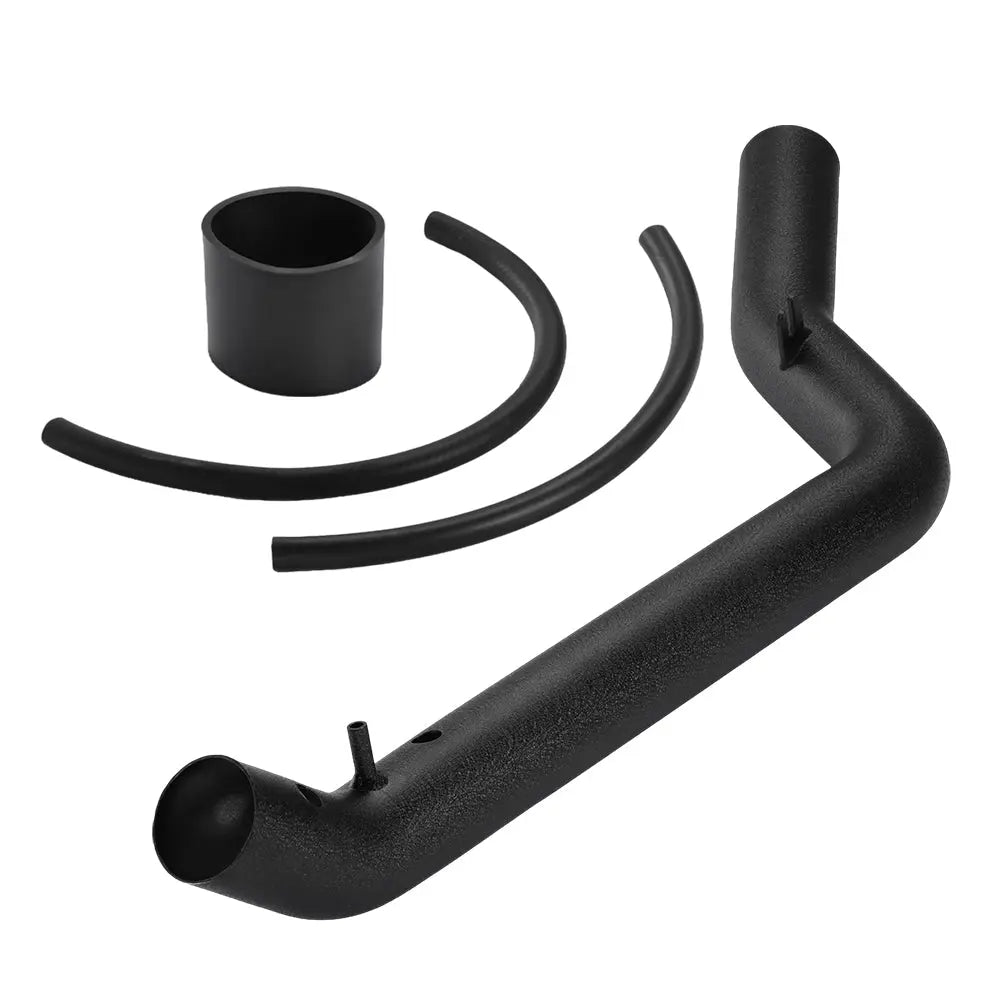

• 1 × 63 mm mandrel-bent aluminum intake tube (matte black powder coat)
• 1 × Red conical dry cotton gauze air filter (63 mm inlet)
• 1 × Straight silicone coupler sleeve (63 → 65 mm)
• 2 × Reinforced breather / vent hoses (D15-d9 × 330 mm and D15-d7 × 390 mm)
• 2 × Stainless steel hose clamps
• 1 × Aluminum mounting bracket
• 1 × M6 rubber vibration damper
• 1 × M6 washer and lock nut
• 2 × Rubber eyelets / grommets

All hardware required for a bolt-on installation is included. The factory IAT and MAP sensors are reused from the stock intake; no additional sensors are shipped.

Replacement filter media and cleaning supplies are available for this kit — see the Honda air intake replacement filters and accessories collection.
