Ford gave the S197 Mustang GT a respectable 300 horsepower from its 4.6L 3-valve V8 — then they buried that engine's voice behind an airbox that sounds like a vacuum cleaner. The factory intake prioritizes cabin quiet over breathing, with a maze of resonator chambers that choke throttle response and mute the one sound every Mustang owner actually wants to hear: eight cylinders pulling hard.

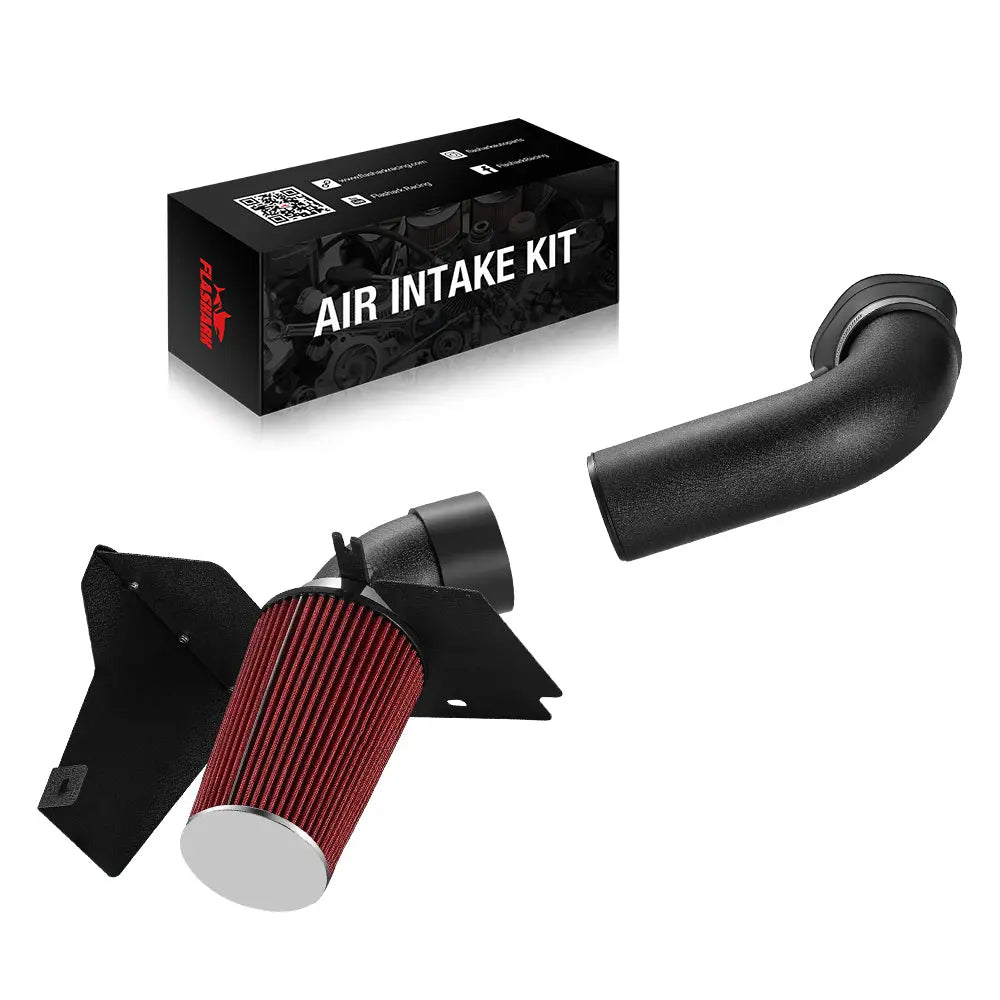

This cold air intake replaces the restrictive upper intake with mandrel-bent black powder-coated aluminum tubing and a high-flow dry cone filter, while retaining the factory lower cold air ducting. The 3V Modular V8 finally gets the airflow it deserves — throttle response sharpens noticeably, the induction note deepens into a muscular growl that builds from 3,000 RPM to redline, and you pick up an honest 5-10 wheel horsepower. That's not 21-30 HP, as some inflated percentage claims suggest — it's what a well-designed intake actually delivers on a naturally aspirated 4.6L that's already decently optimized from the factory.
Installation is a direct bolt-on with no cutting, drilling, or permanent modifications. All hardware, couplers, and clamps are included. Expect 45-90 minutes with basic hand tools, and the kit is fully reversible. Whether you're daily-driving your GT, wringing out a Bullitt on back roads, or just tired of your V8 sounding like a household appliance, this intake gives the 3V the voice and response it deserved from the factory.

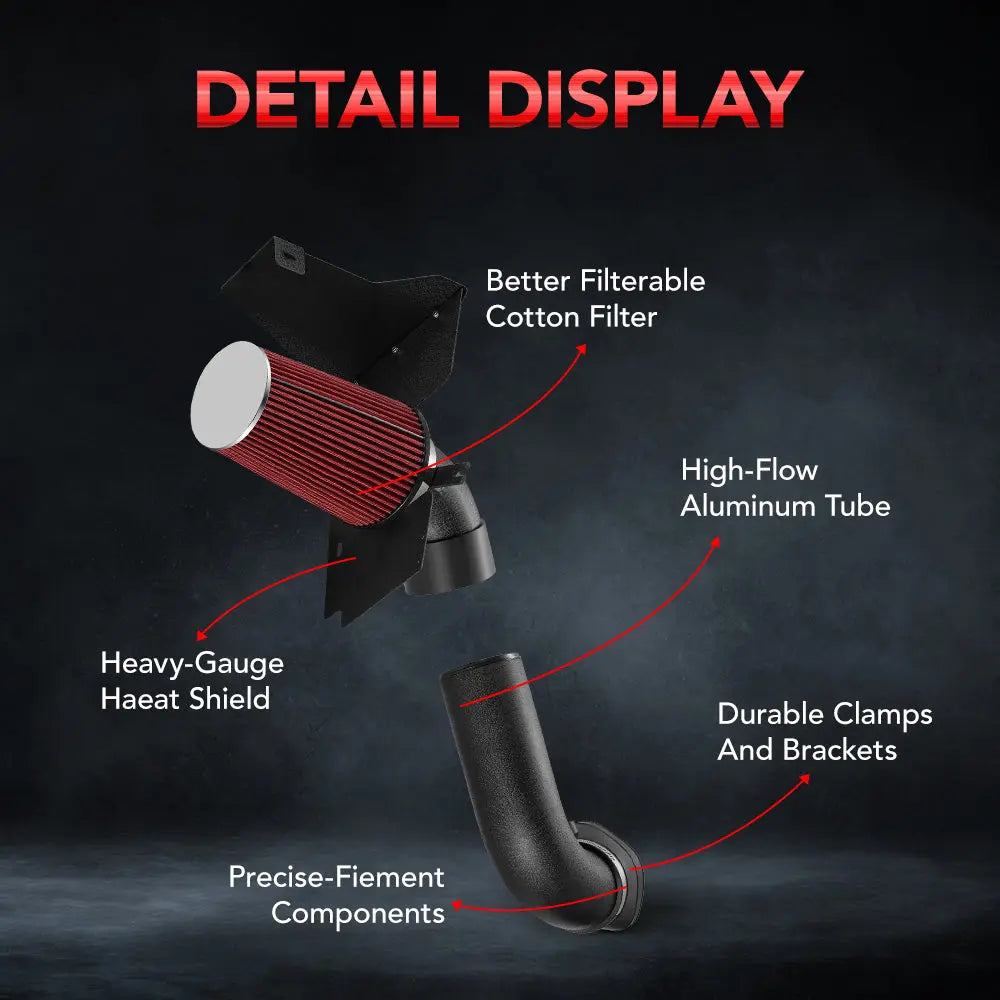

Key Features

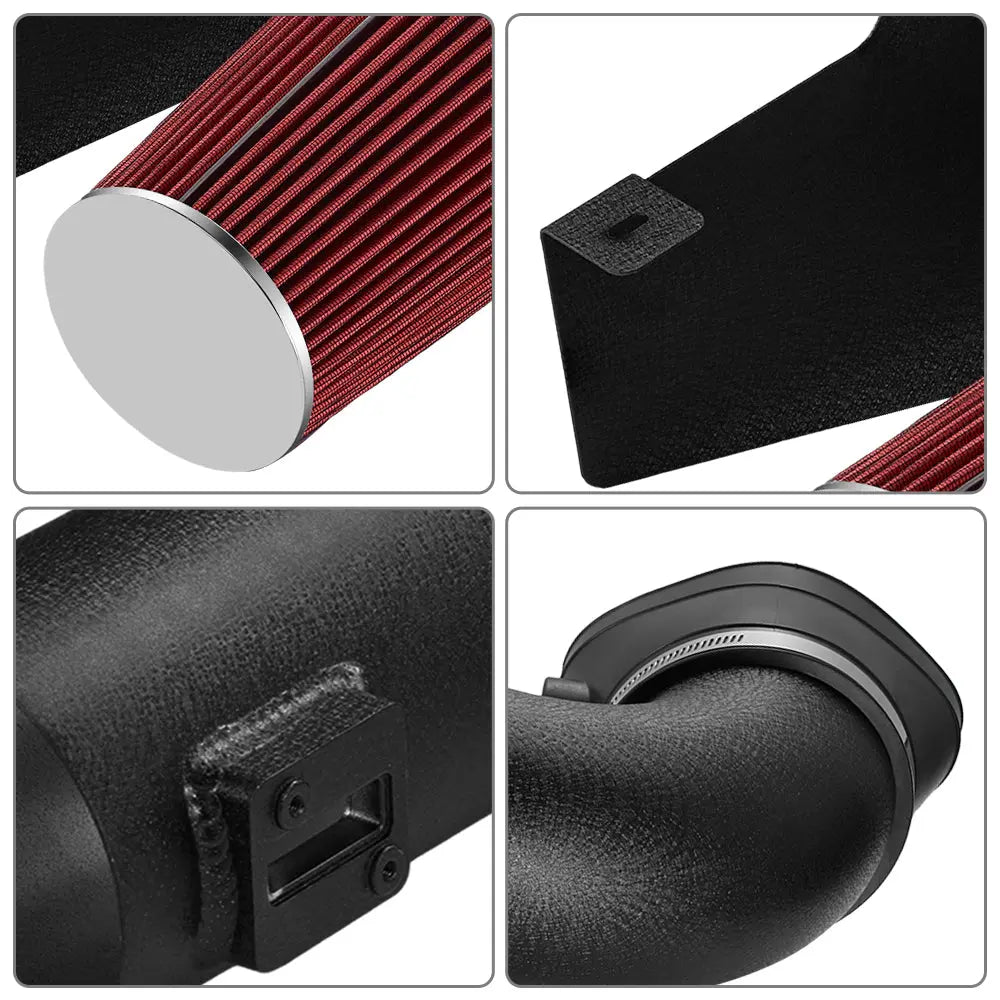

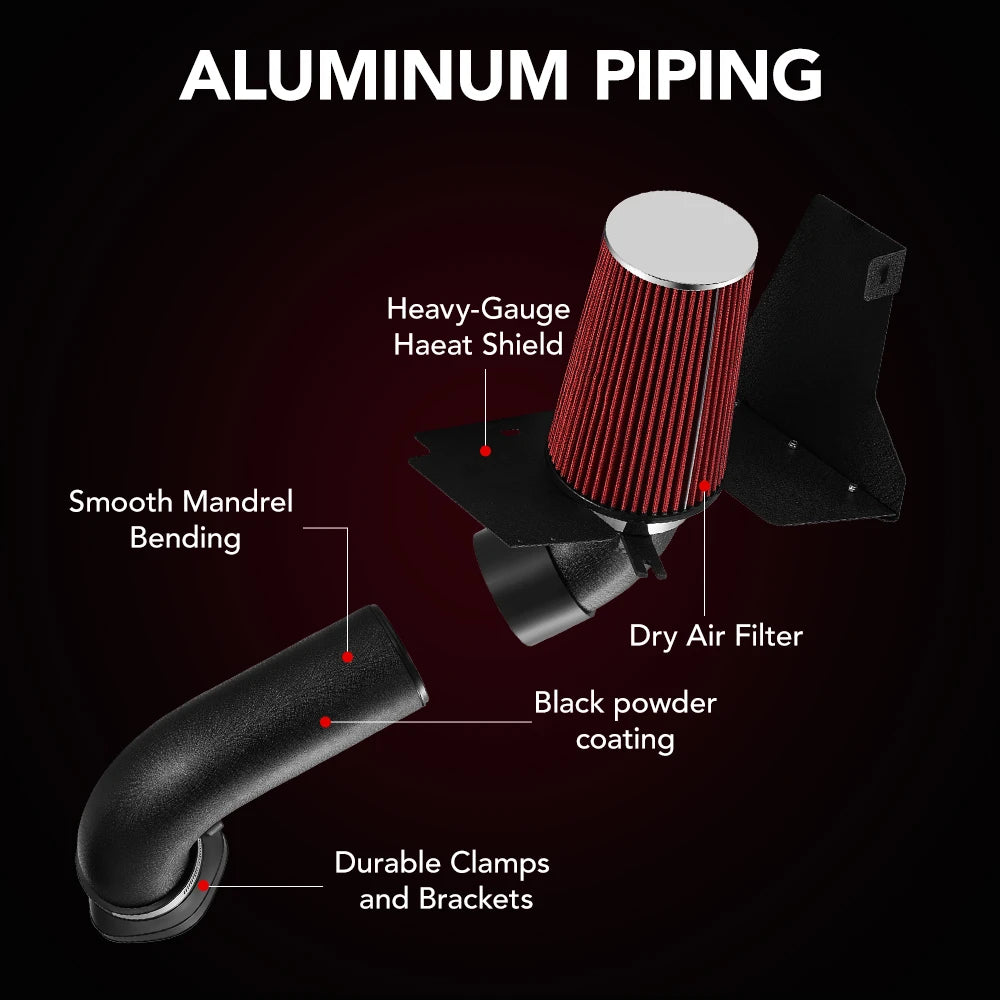

Black powder-coated aluminum intake tube — mandrel-bent for smooth airflow; corrosion-resistant finish handles under-hood heat without discoloring
High-flow dry cone filter — no oil required, washable and reusable; clean every 15,000-20,000 miles

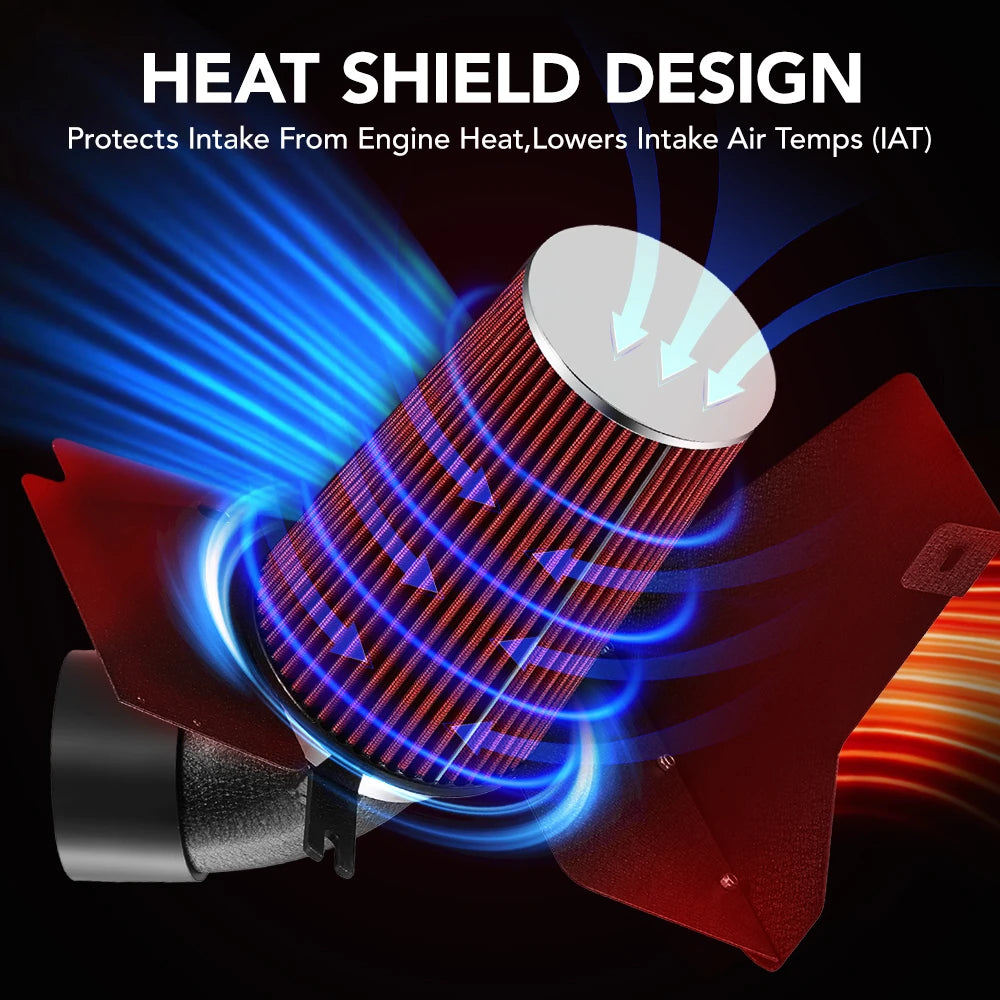

Heat shield included — reduces heat soak from the radiator and engine block at idle and low speed
Retains factory lower cold air intake box — pulls cooler air from the fender well, not hot engine bay air
Improved throttle response — most noticeable in the 2,500-4,500 RPM range where the 3V does its real-world work
Deeper intake sound — the 3V's induction note transforms from muted vacuum to muscular growl at 3,000+ RPM
Direct bolt-on installation — no cutting, drilling, or permanent modifications; fully reversible
Compatible with factory MAF and IAT sensors — retains OEM sensor positions for proper air-fuel metering
Complete hardware kit included — couplers, clamps, brackets, vacuum line, and mounting hardware
Specifications
Intake Type: Cold Air Intake
Pipe Material: Aluminum
Pipe Diameter: Φ89mm (3.5-inch)
Filter Type: Dry high-flow cone filter
Heat Shield: Yes — powder-coated steel
Engine: 4.6L Modular 3V SOHC V8 (Naturally Aspirated)
Installation Time: 45-90 minutes

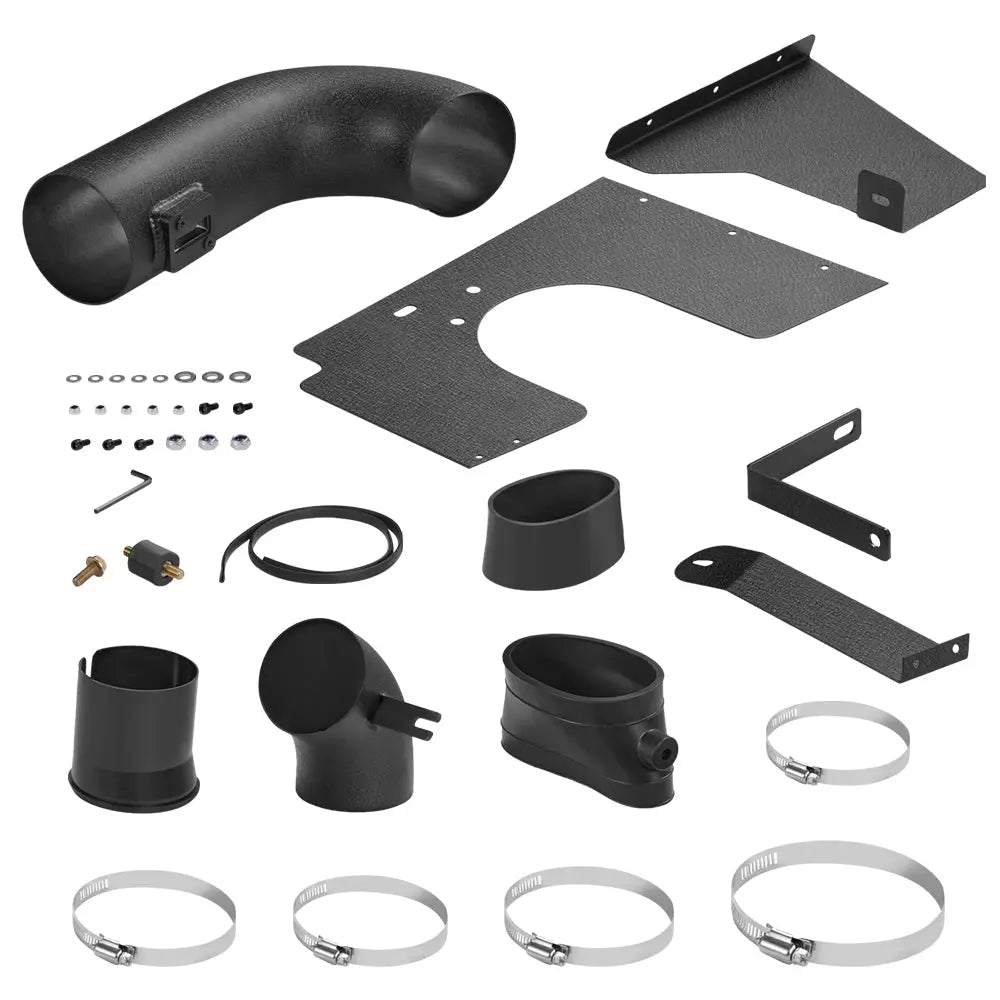

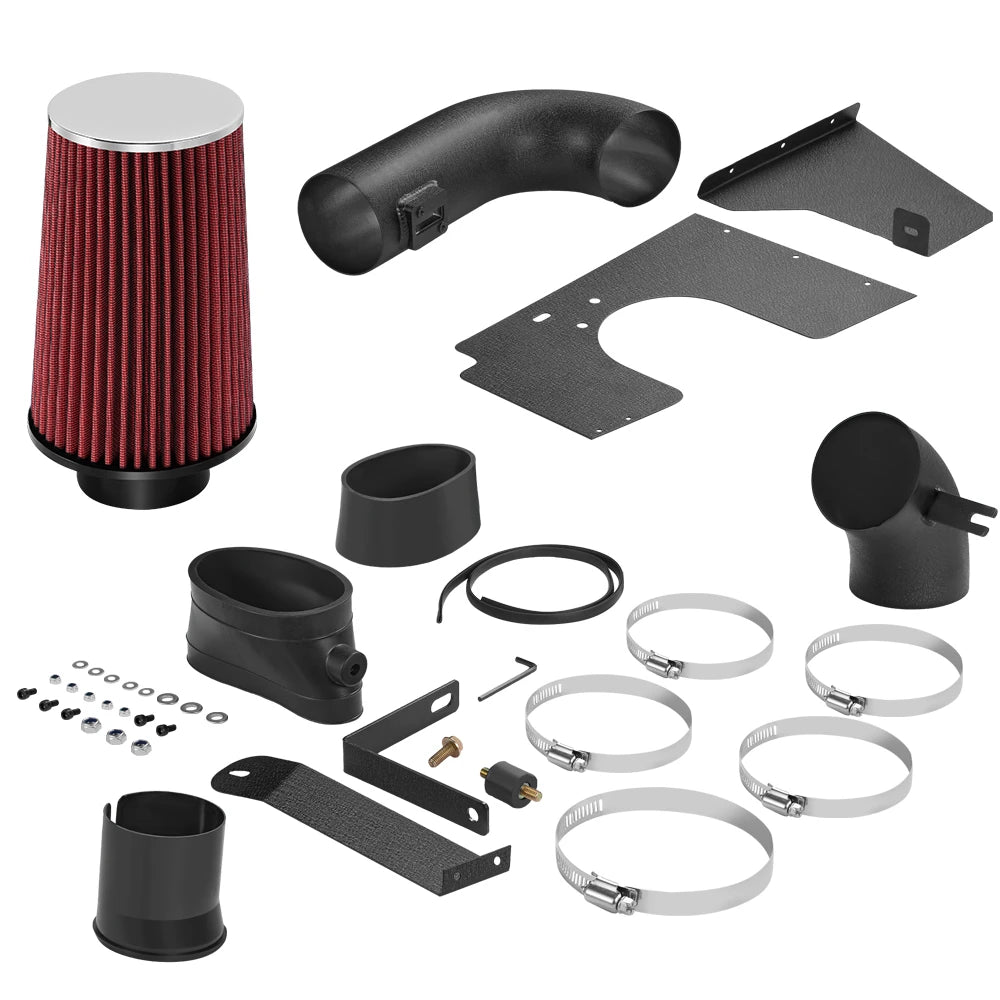

Package Includes

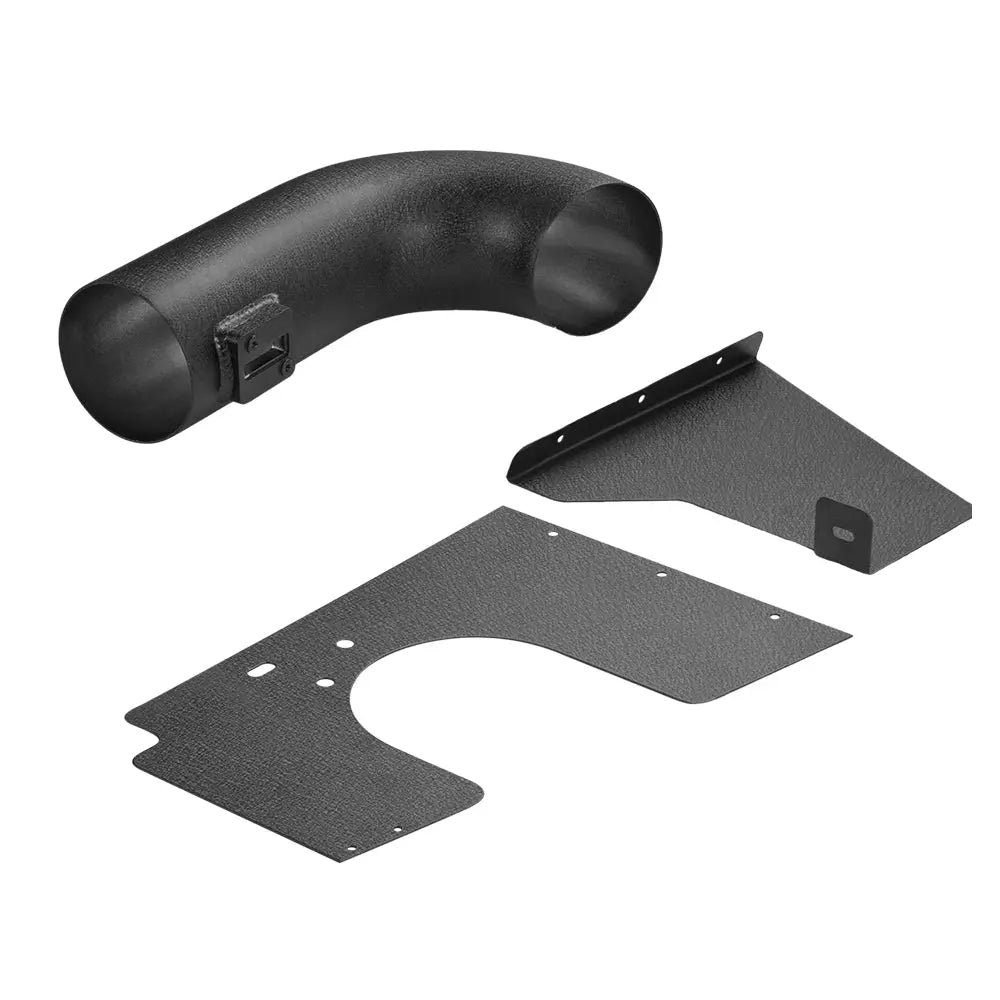

2 × Black powder-coated aluminum intake tube

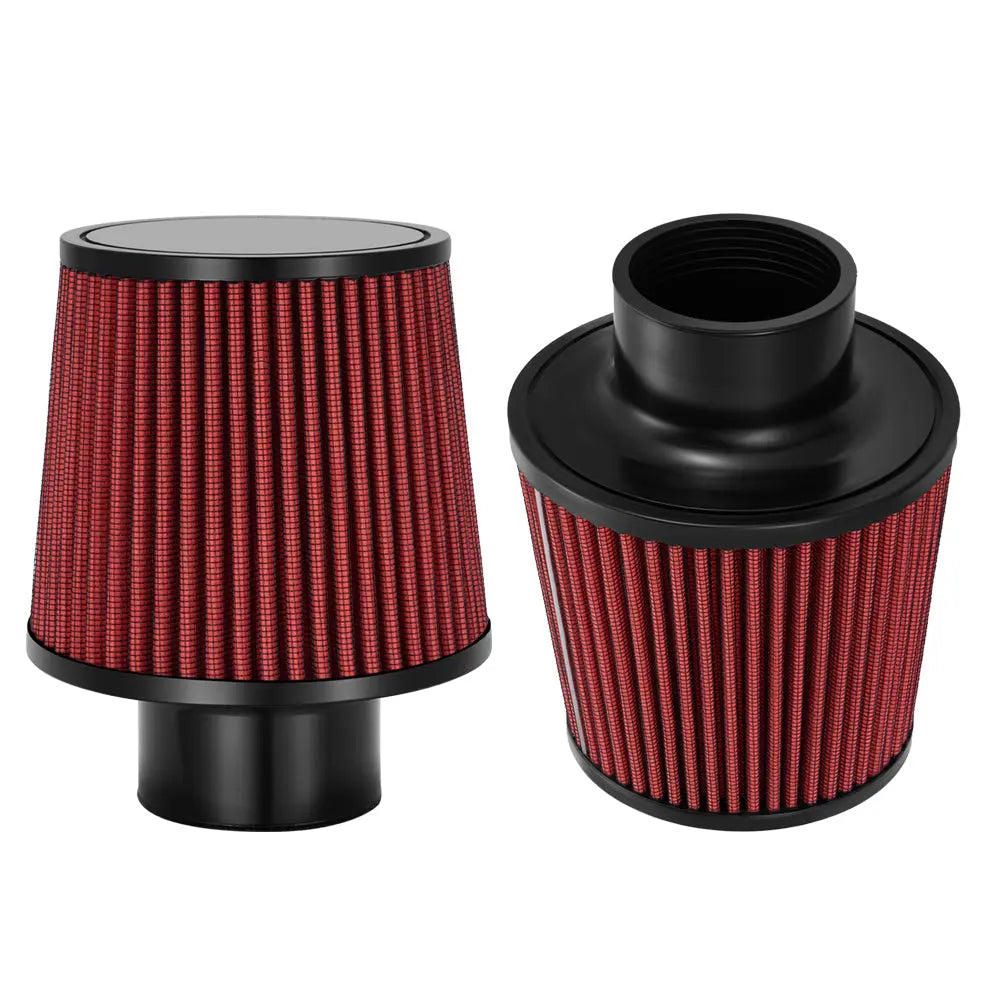

1 × High-flow dry cone air filter
1 × Powder-coated steel heat shield

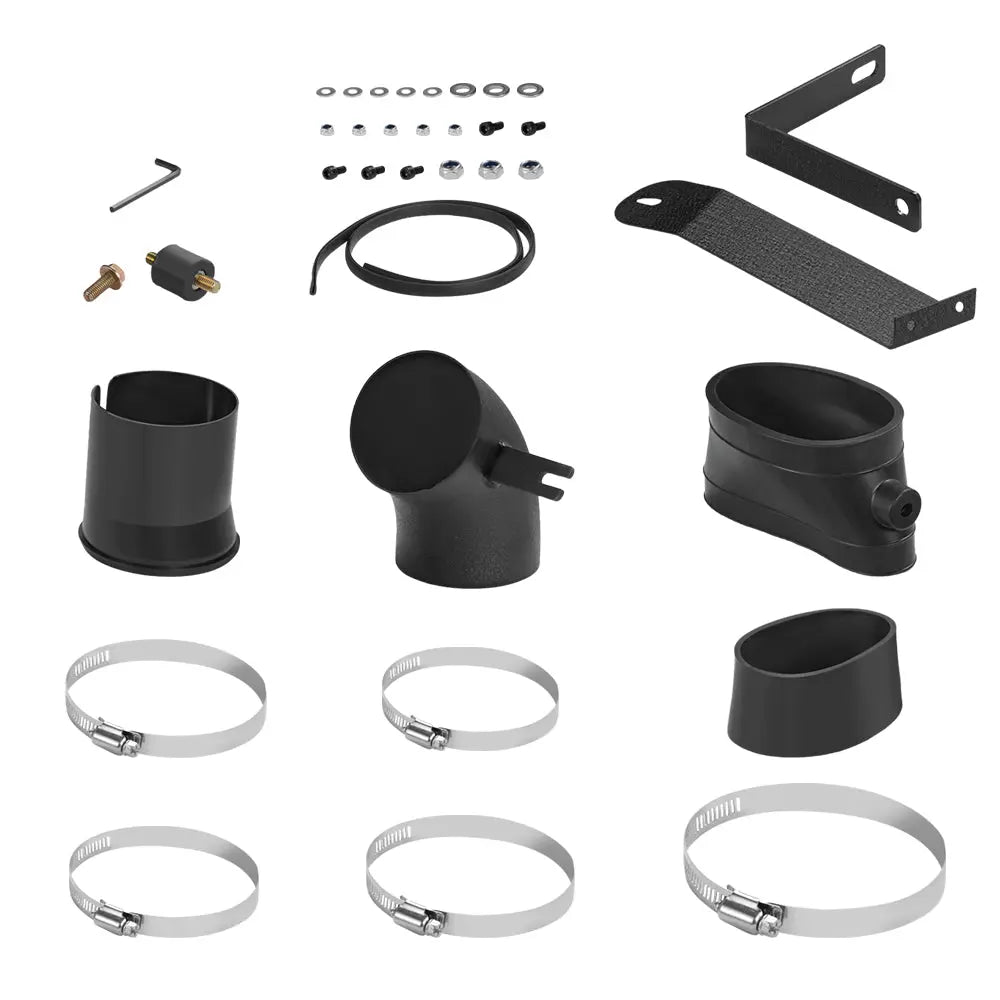

3 × Silicone couplers
5 × Stainless steel clamps
1 × Mounting bracket with hardware
1 × Installation instruction sheet
| Years | Make | Model | Engine |
|---|---|---|---|
| 2005 | Ford | Mustang GT | 4.6L V8 SOHC 3V |
| 2006 | Ford | Mustang GT | 4.6L V8 SOHC 3V |
| 2007 | Ford | Mustang GT | 4.6L V8 SOHC 3V |
| 2008 | Ford | Mustang GT / Bullitt | 4.6L V8 SOHC 3V |
| 2009 | Ford | Mustang GT / Bullitt | 4.6L V8 SOHC 3V |
Q1: Which Mustang models does this intake fit?
A: This intake is designed for 2006-2009 Ford Mustang GT models and 2008-2009 Mustang Bullitt editions — all equipped with the naturally aspirated 4.6L 3-valve SOHC V8. The product fitment database also lists the 2005 Mustang GT (same engine, first year of S197 platform), but the intake engineering targets 2006-2009 specifically. 2005 owners should compare their factory MAF housing, throttle body connection, and breather hose routing against the product photos before ordering, or contact us for confirmation.
Q2: Will this fit a 4.0L V6 Mustang or Shelby GT500?
A: No — and this is the most common mis-order for S197 Mustang intake products. The 4.0L V6 uses a completely different intake path, pipe diameter, throttle body connection, and MAF housing. The Shelby GT500 uses a supercharged 5.4L with an entirely different intake system designed for forced induction. This intake is specifically engineered for the naturally aspirated 4.6L 3V V8 only. If your Mustang has a V6 or a supercharger, this is not the right product.
Q3: Will this fit a 2010 Mustang GT 4.6L or a 2011+ 5.0L Coyote?
A: No. The 2010 Mustang GT uses the same 4.6L 3V engine but received a mid-cycle exterior and under-hood refresh that may affect intake routing — we recommend verifying fitment before ordering for 2010 models. The 2011+ Mustang GT uses the 5.0L Coyote V8, which is a completely different engine platform (DOHC 4V, different throttle body, different MAF, different intake manifold). It requires its own specific intake kit.
Q4: How much horsepower will I gain on my 4.6L 3V?
A: Expect an honest 5-10 WHP gain. Be skeptical of claims in the 21-30 HP range (7-10% of 300 hp) — those numbers require supporting mods like long-tube headers, a custom tune, and ideal conditions. The 4.6L 3V's factory intake is actually decent for airflow volume at wide-open throttle; its real limitation is the resonator chambers and baffles that create turbulence and delay throttle response. What you'll notice most isn't a huge dyno number — it's a sharper tip-in from 2,500-4,500 RPM where the 3V does its real-world work, and an intake sound that finally matches the displacement.
Q5: Does this intake require a tune?
A: No tune is required for a stock 4.6L 3V. The factory ECU will adapt fuel trims to the increased airflow within its closed-loop learning range, and the kit retains the factory MAF housing position for proper sensor calibration. However, if you've also installed long-tube headers, an aftermarket throttle body, or removed the catalytic converters, a custom tune (via SCT or HP Tuners) is strongly recommended. A tune can also optimize air-fuel ratio and ignition timing to extract the full benefit of the intake.
Q6: How does this intake change the sound of my Mustang GT?
A: Significantly — and this is what most 4.6L 3V owners buy the intake for. Ford engineered the factory airbox with multiple resonator chambers specifically to mute induction noise, making the 3V sound subdued and appliance-like at all RPMs. Replacing that with an open-element cone filter and smooth tubing transforms the intake note: at light throttle, it's only slightly louder, but at 3,000+ RPM under acceleration, the engine develops a deep, muscular induction growl that finally sounds like a V8. This is intake sound (heard from the engine bay), not exhaust sound — it won't change your cat-back or axle-back exhaust note. The effect is most dramatic with the windows down or from outside the car.
Q7: Is this a true cold air intake or a short ram?
A: It's a hybrid design. The kit replaces the restrictive upper intake section with an open-element filter behind a heat shield, but it retains the factory lower cold air intake box that draws air from the fender well — not from the hot engine bay. This means it draws cooler air than a bare short-ram intake would, but it's not a fully sealed cold-air box like some premium systems. The heat shield helps mitigate radiant heat from the radiator and engine block at idle and low speed. At highway speeds, the engine bay airflow keeps intake temperatures close to ambient.
Q8: Will this intake trigger a check engine light?
A: No — when properly installed, this intake will not trigger a CEL. The 4.6L 3V's ECU is tolerant of moderate intake changes as long as the MAF sensor reads correctly. Common causes of a CEL after installation: (1) MAF sensor installed backward or not fully seated in the adapter plate, (2) vacuum or breather hose not connected or leaking, (3) coupler clamp not tight enough, causing an unmetered air leak after the MAF. If a CEL appears, codes P0171/P0174 (system lean) almost always point to a post-MAF air leak — double-check every connection before suspecting the intake itself.
Q9: Will this intake improve my fuel economy?
A: In theory, reduced intake restriction can improve combustion efficiency by 0.5-1 MPG under steady highway cruising. In practice, the improved intake sound encourages heavier throttle use, which cancels out any efficiency gain. The 4.6L 3V already gets reasonable highway mileage (22-25 MPG) thanks to tall gearing; don't expect this intake to meaningfully change your fuel costs. Buy it for the throttle response and sound, not for the gas pump.
Q10: How do I clean and maintain the air filter?

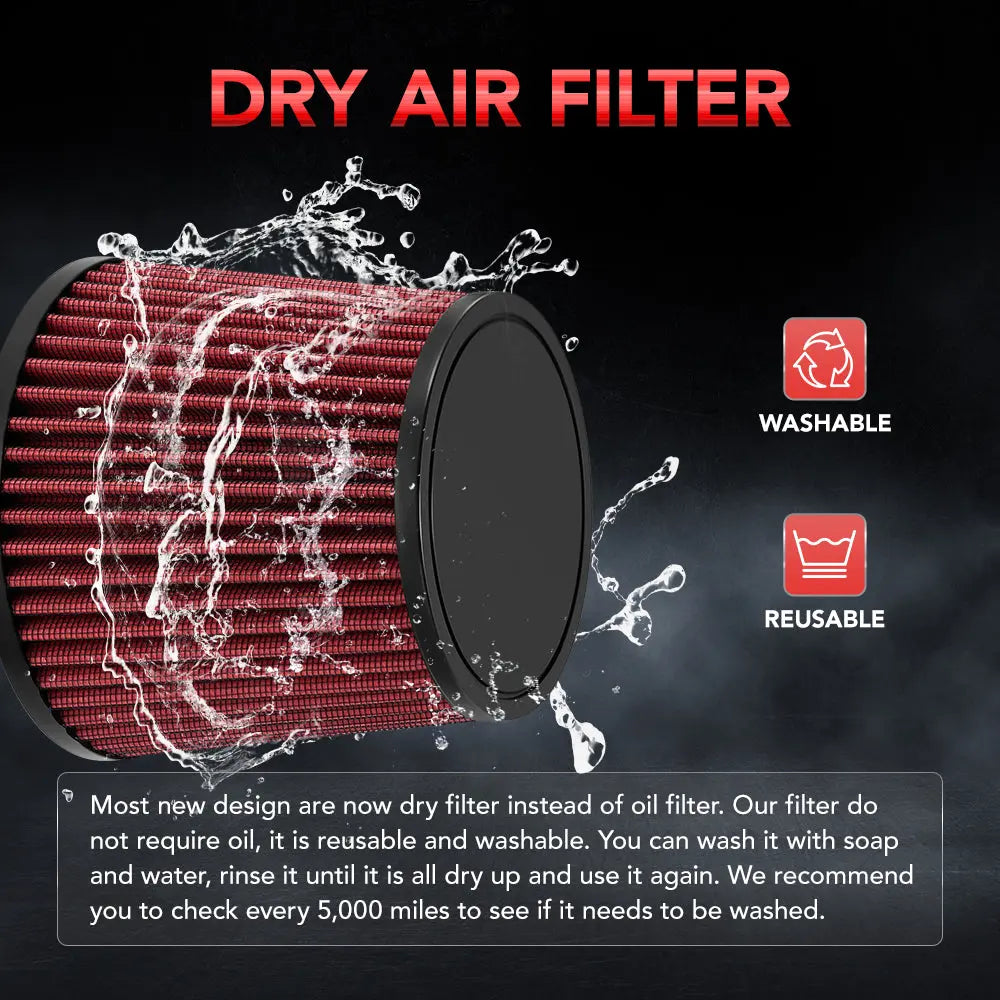

A: This kit uses a dry synthetic filter — no oiling required. Clean it every 15,000-20,000 miles under normal driving, or more frequently (every 10,000 miles) if you drive on dusty roads or in dry, sandy conditions. To clean: remove the filter from the intake tube, tap out loose debris, then use low-pressure compressed air (under 30 PSI) blown from the inside out. Do NOT apply filter oil to this dry filter — the 4.6L 3V's MAF sensor is sensitive to oil contamination, which can foul the sensor element and cause lean codes or drivability issues. If the filter is excessively dirty or damaged, replace it.
Q11: How difficult is installation on a 2006-2009 Mustang GT?
A: Installation is straightforward and takes 45-90 minutes with basic hand tools (socket set, flathead and Phillips screwdrivers, pliers). No cutting, drilling, or permanent modifications are required. The most time-consuming step is removing the factory intake resonator assembly from the fender well — it's a large plastic box that requires some maneuvering past the coolant reservoir and other engine bay components. The intake tube bolts to the existing throttle body and MAF mounting points, the heat shield attaches to factory bolt locations, and the filter clamps onto the tube. Full step-by-step instructions with photos are included.
Q12: What should I check after installing the intake?
A: After installation, verify: (1) all couplers are fully seated and clamps are tight — check with the engine running by feeling for air leaks at each joint, (2) MAF sensor is oriented correctly (arrow points in airflow direction) and the electrical connector is fully clicked in, (3) breather/vacuum hose is connected and not kinked, (4) the intake tube does not contact the hood, radiator hoses, belts, pulleys, or wiring harness — check with the hood closed by looking for rub marks after a short drive, (5) the filter is securely clamped and not touching the heat shield or body panels. Re-torque all clamps after 50-100 miles of driving as the couplers settle.
