Product Specifications
2013–2019 Toyota Yaris XP130/XP150 1.5L Coilovers
Adjust ride height and rebound damping to set up your 2013–2019 Toyota Yaris XP130/XP150 with a 1.5L L4 engine for the stance and response you want. These Yaris coilovers pair front and rear suspension components with adjustable spring perches and damping controls.
Specifications
| SKU | FLOS08971FL |
|---|---|
| Damping adjustment | 32 rebound settings |
| Approximate lowering range | 2–4 in. |

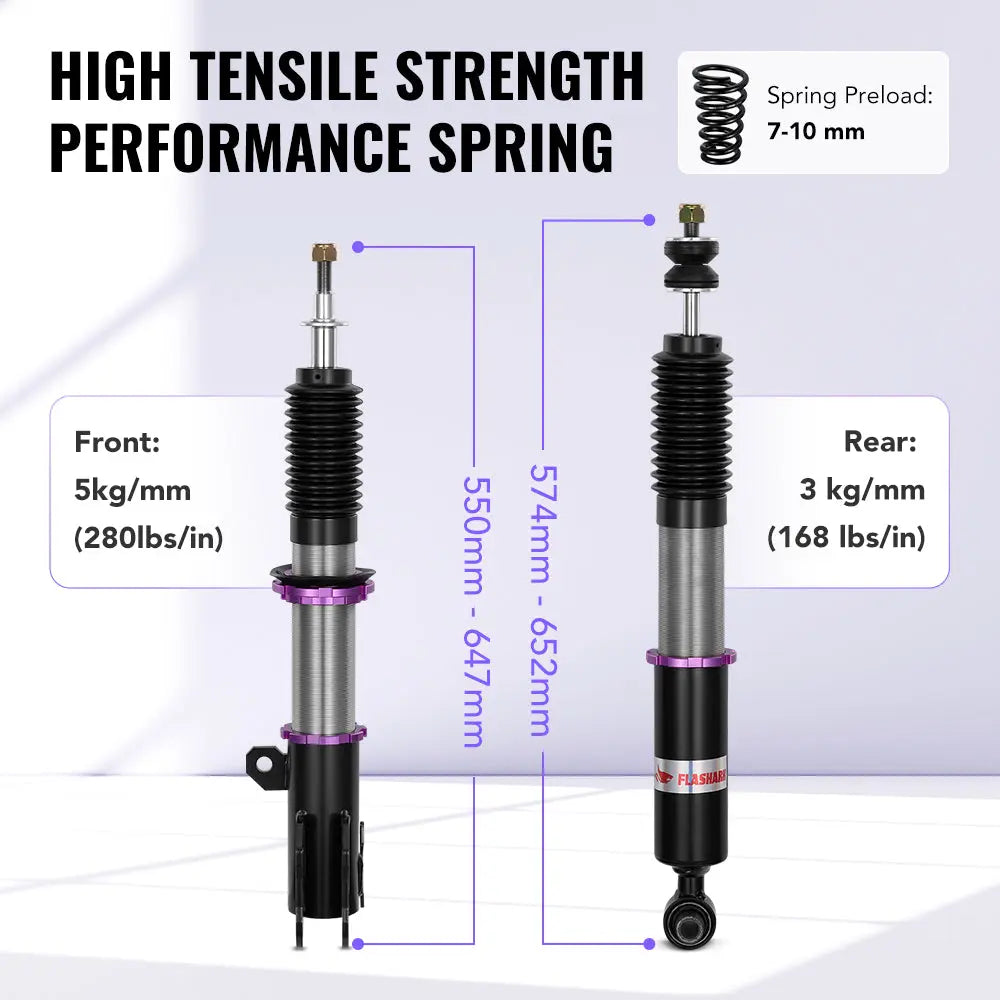

| Front spring rate | 5 kg/mm (about 280 lb/in.) |
| Rear spring rate | 3 kg/mm (about 168 lb/in.) |
| Front / rear spring length | 200 mm / 193 mm |
| Front / rear assembly length | 550–647 mm / 574–652 mm |
| Spring preload range | 7–10 mm; follow the applicable installation instructions for setup |
Key Features

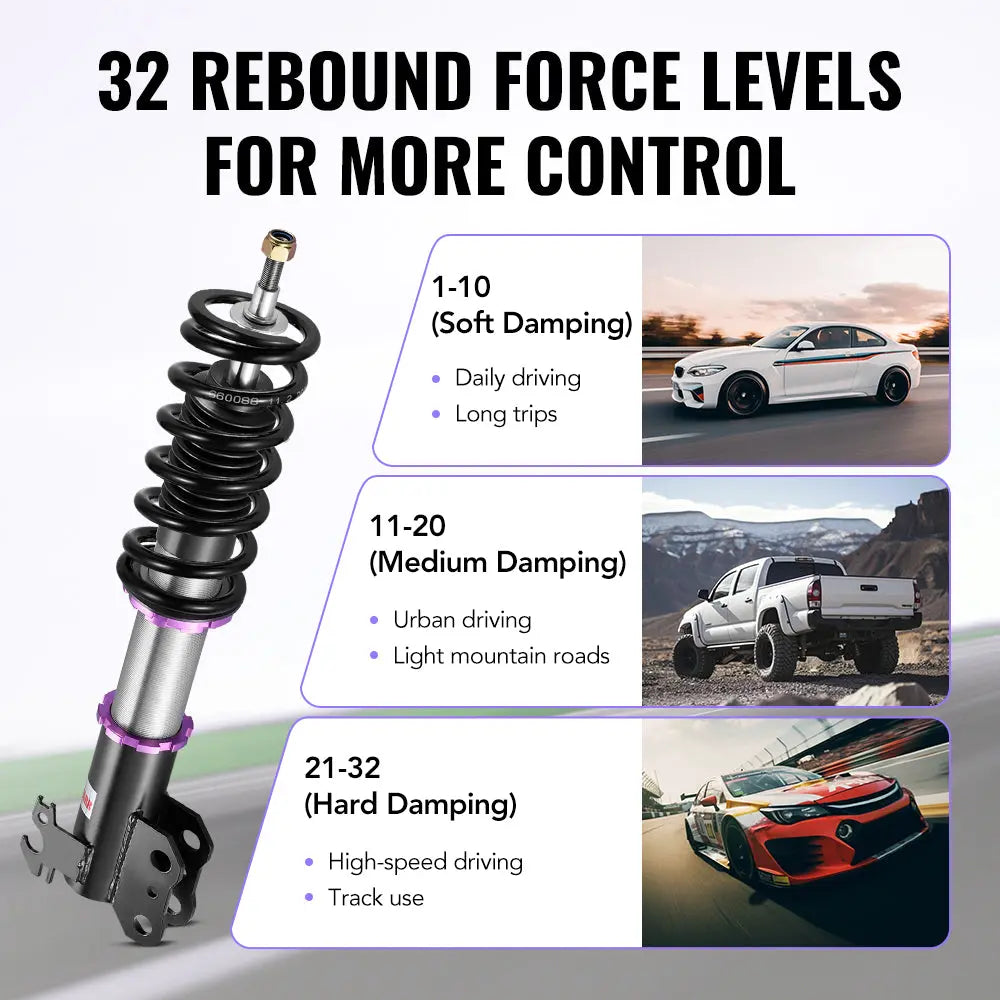

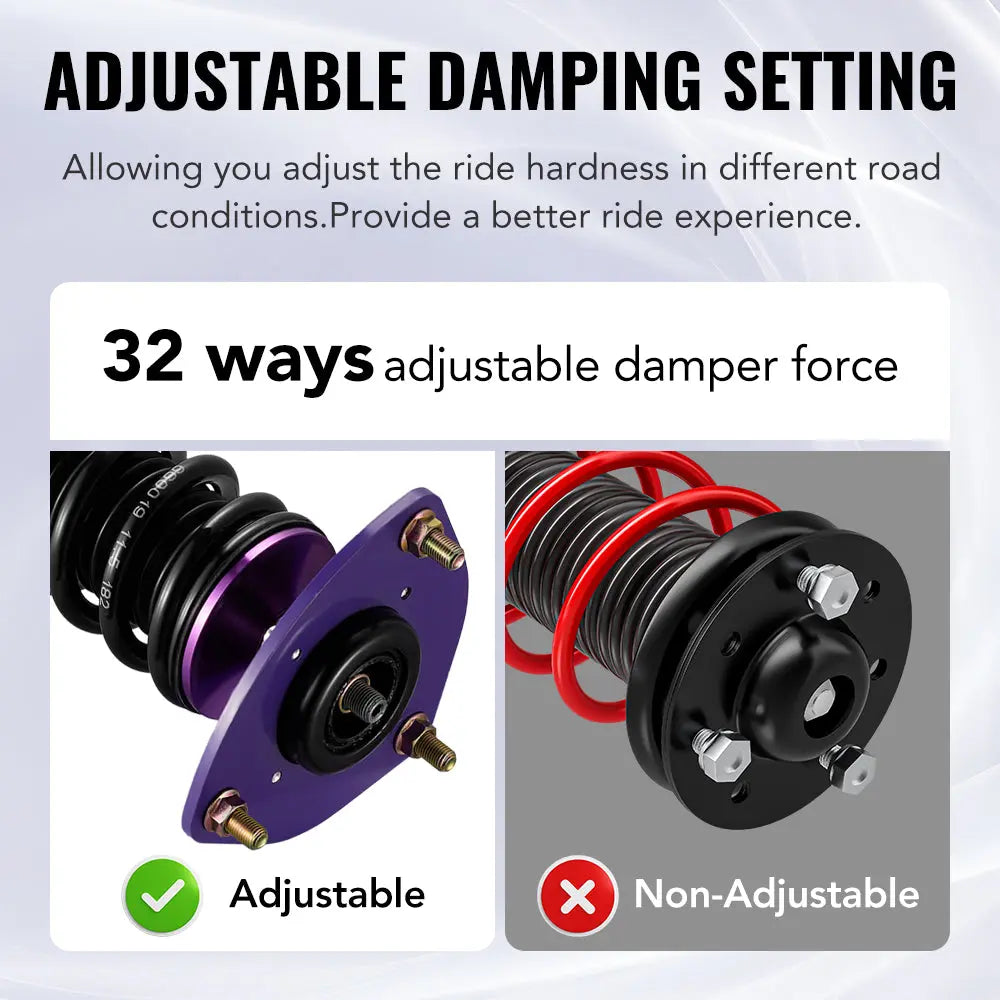

- Adjustable rebound damping: Tune the suspension response across 32 settings and keep left and right settings matched.

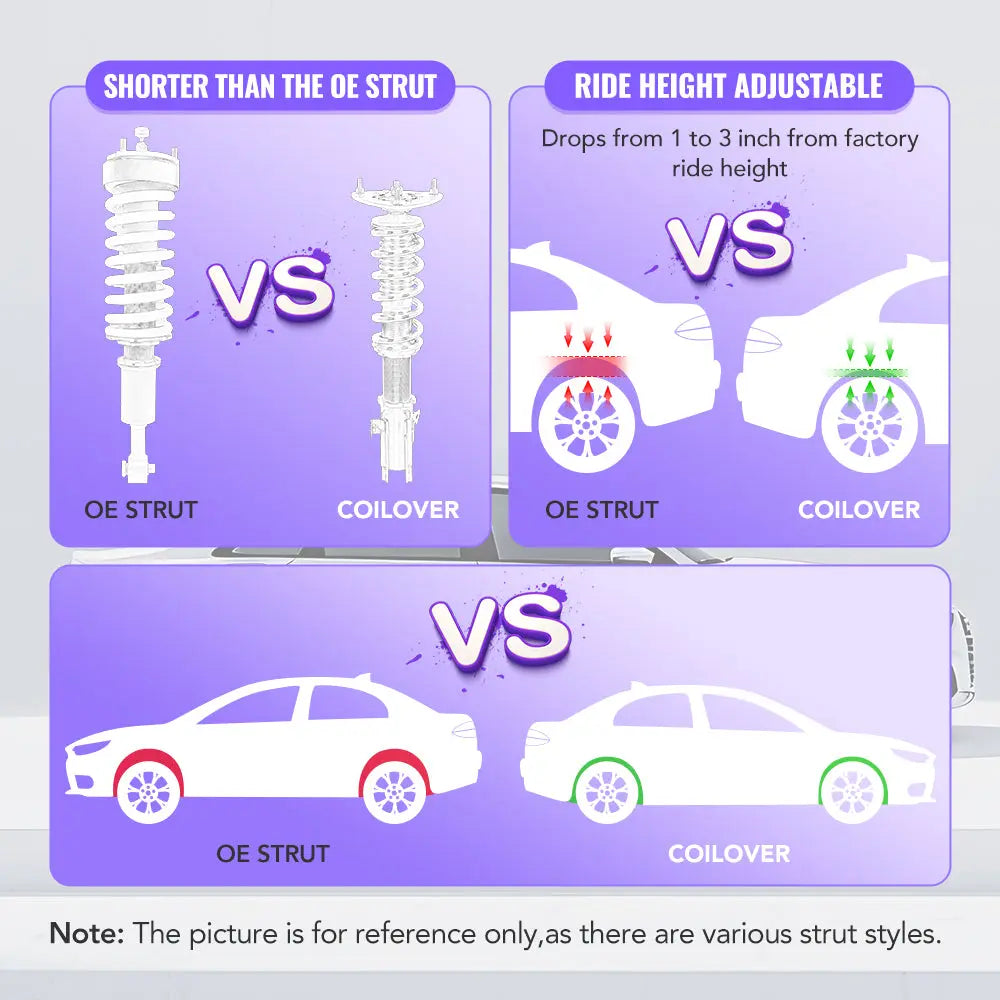

- Adjustable ride height: Set an approximately 2–4 in. lower stance, subject to the vehicle and final setup.

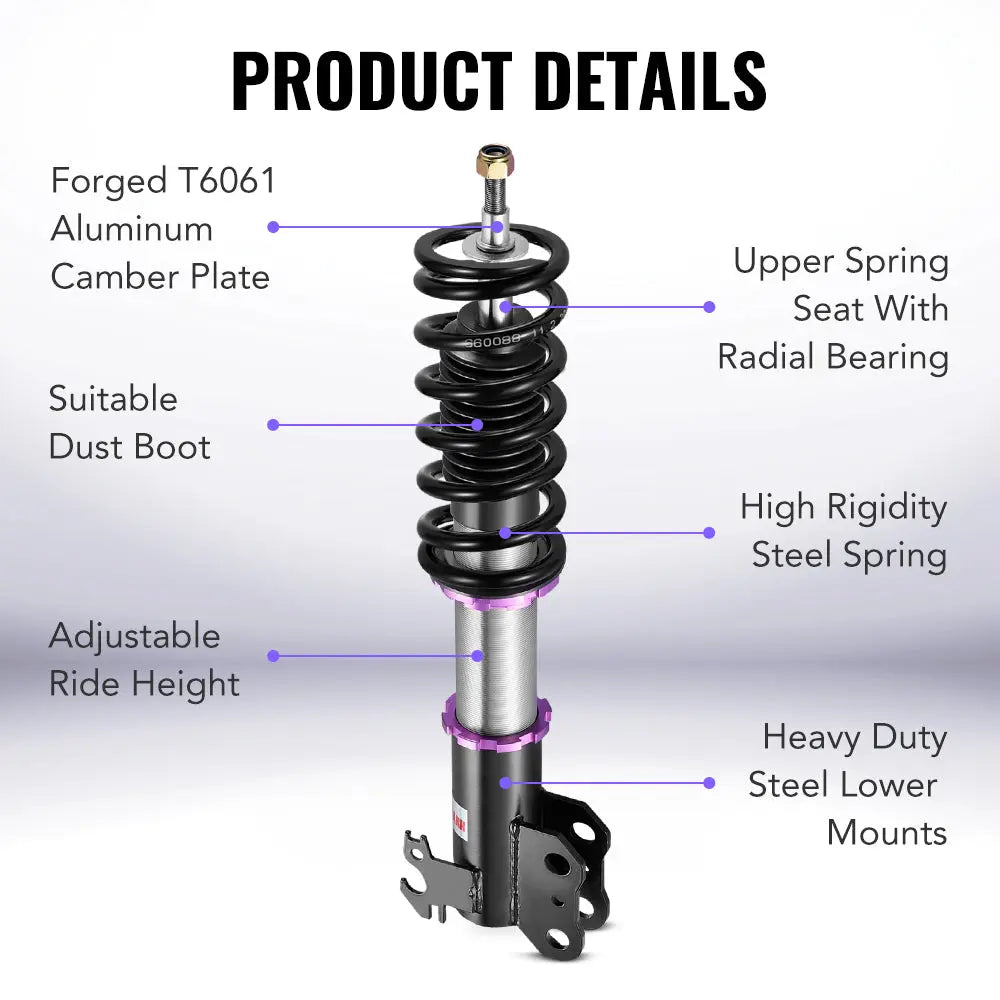

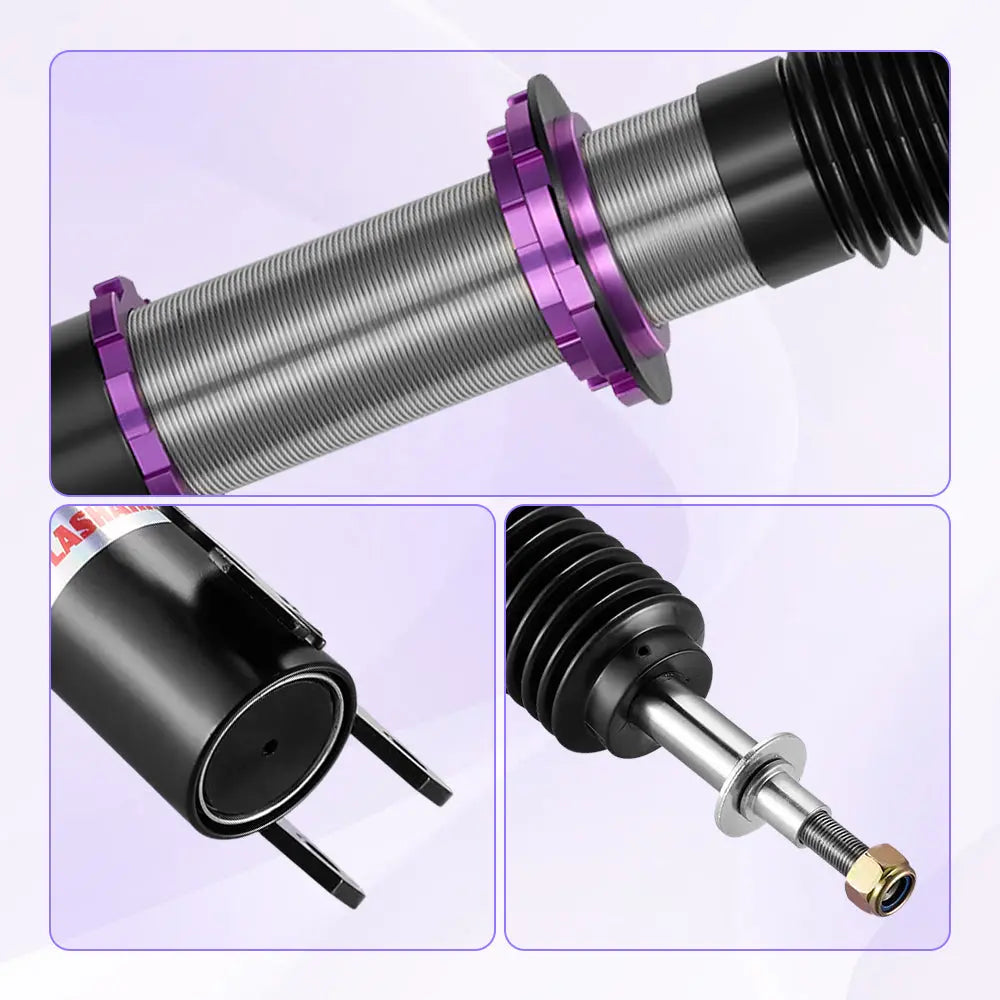

- Separate height adjustment: The adjustable lower mount is designed to change ride height without using spring preload as the primary height control.
- Rubber top mounts: Rubber mounts are designed to help isolate road impacts.

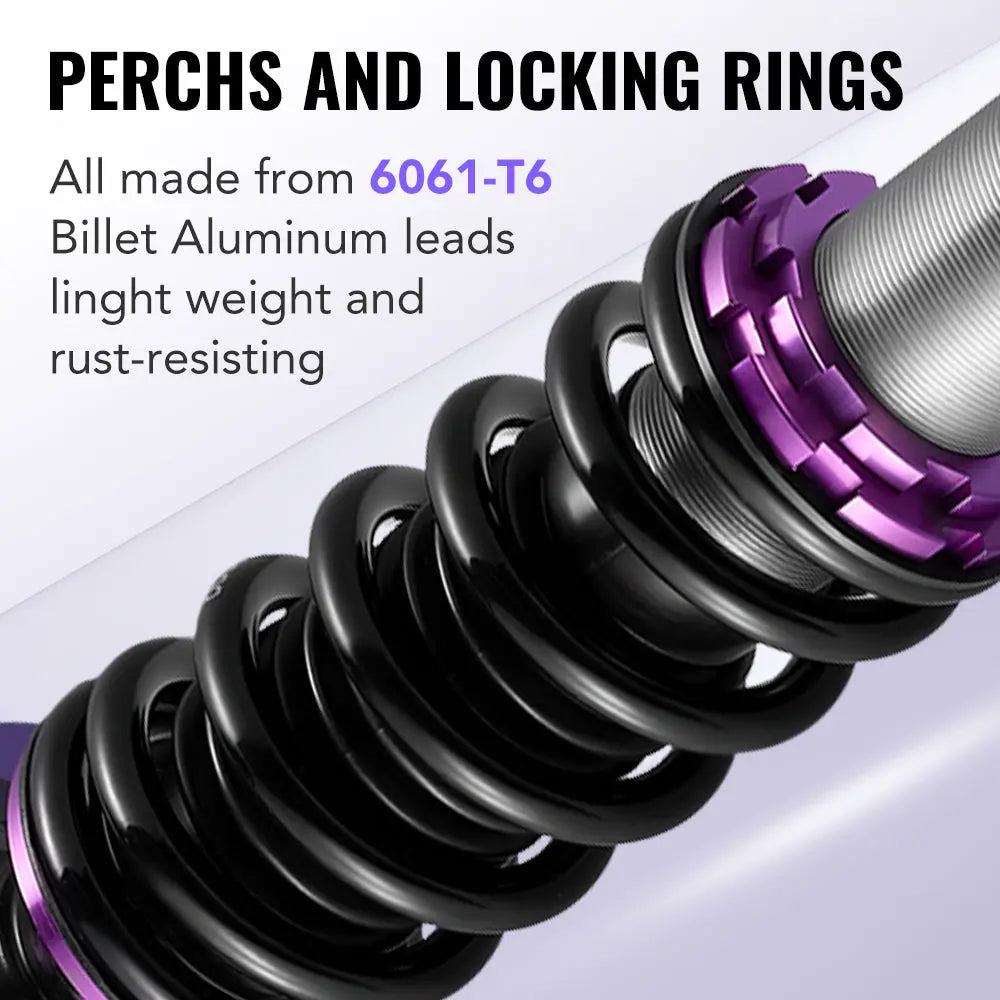

- Aluminum and steel construction: The assemblies use aluminum and steel, including 6061-T6 billet aluminum for selected mounts, collars and perches.
- Serviceable design: The assemblies are designed to be rebuildable; ask Flashark about available service parts and procedures before planning a rebuild.
What's Included and Not Included

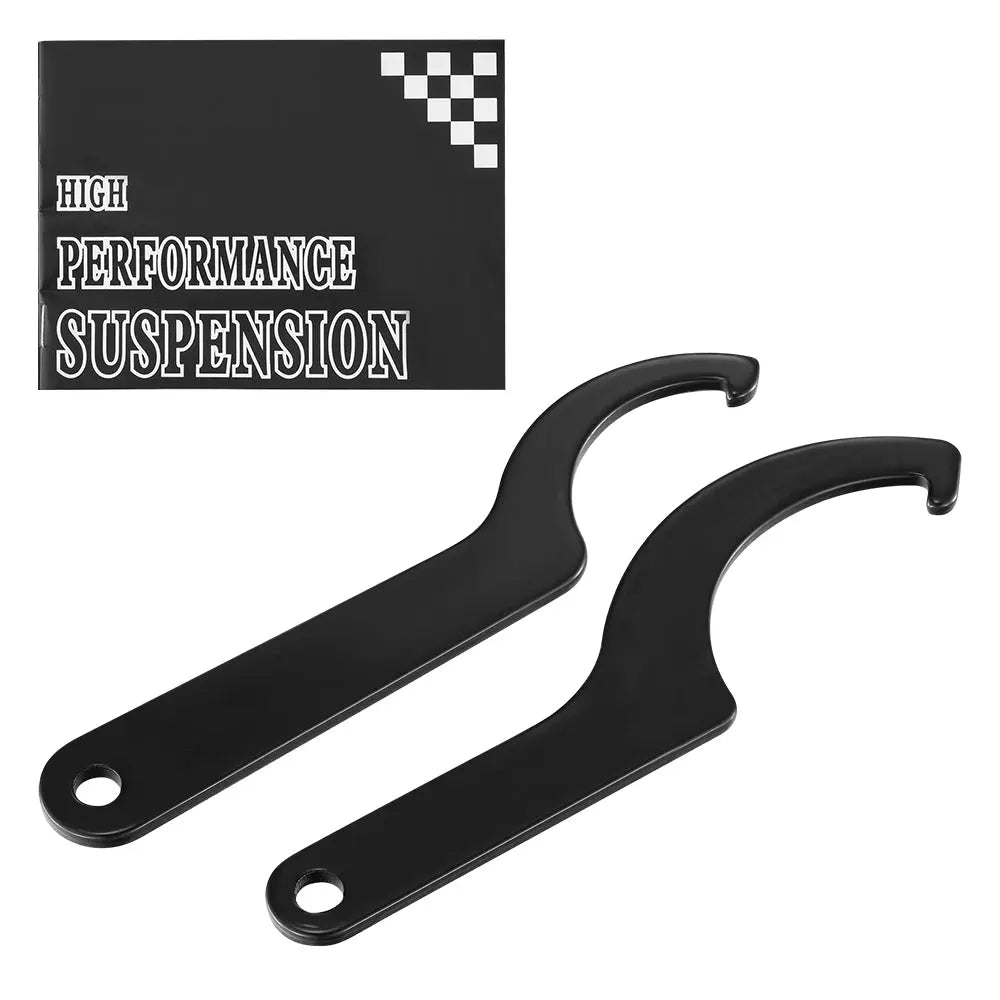

The kit includes front and rear suspension components and height adjustment tools. Confirm the number of assemblies, rear spring layout, hardware, and any original components to reuse with Flashark before installation.
Check Before Ordering
- Match your vehicle's year, Toyota Yaris model, 1.5L L4 engine, and XP130 or XP150 chassis to the Fitment table. Confirm body style, market version, and suspension mounting points with Flashark before purchase.
- Confirm compatibility with any factory electronic or adaptive suspension and with existing suspension modifications.
- Check wheel, tire, brake line, and fender clearance through the intended ride-height range.
- Have the applicable installation instructions and vehicle torque specifications available. After installation, check fasteners and clearances and obtain a professional alignment.
