2019–2021 Ram 6.7L Cummins EGR/DPF/DEF Delete Kit
This all-in-one configuration combines the mechanical and electronic components used to change the factory EGR, exhaust aftertreatment, and DEF/SCR control systems on listed 2019–2021 Ram 2500 and 3500 trucks with the 6.7L Cummins diesel engine. It includes an EGR delete kit, a selectable DPF delete race-pipe configuration, and a Mini Maxx V2 tuner for 2018–2021 Ram applications.
The EGR components remove the factory EGR valve and cooler from operation, block the related exhaust-gas path, and reroute the coolant circuit. The selected exhaust configuration replaces the applicable DPF/CAT/SCR/DOC section. Compatible programming is required because this work changes the factory sensor, regeneration, and emissions-control logic.
Fitment
| Model Years | Make / Model | Engine | Configuration |
|---|---|---|---|
| 2019–2021 | Ram 2500 | 6.7L Cummins diesel | Pickup; listed crew-cab and Mega Cab configurations |
| 2019–2021 | Ram 3500 | 6.7L Cummins diesel | Pickup; listed crew-cab and Mega Cab configurations |
- Listed fitments only.
- Not listed for 3500, 4500, or 5500 Cab & Chassis commercial-style trucks.
- Dual-fuel-tank Cab & Chassis configurations are not supported by the tuner.
- For 2018–2021 Ram trucks, check the PCM software part number before ordering. The tuner supports the listed original PCM software when its part number begins with a number; software identified by a part number beginning with a letter may not work.
- Existing exhaust, tuning, emissions-system, or drivetrain modifications can affect installation and programming.
Key Features
- Combined system package: Brings together the EGR hardware, selected DPF delete exhaust configuration, and Mini Maxx V2 tuner for the listed Ram application.
- EGR cooler and valve removal: Removes the factory EGR valve and cooler from operation and closes the related exhaust-gas path.
- Coolant reroute: Uses the included reroute hose rather than leaving the EGR cooler coolant circuit blocked at the hose ends.

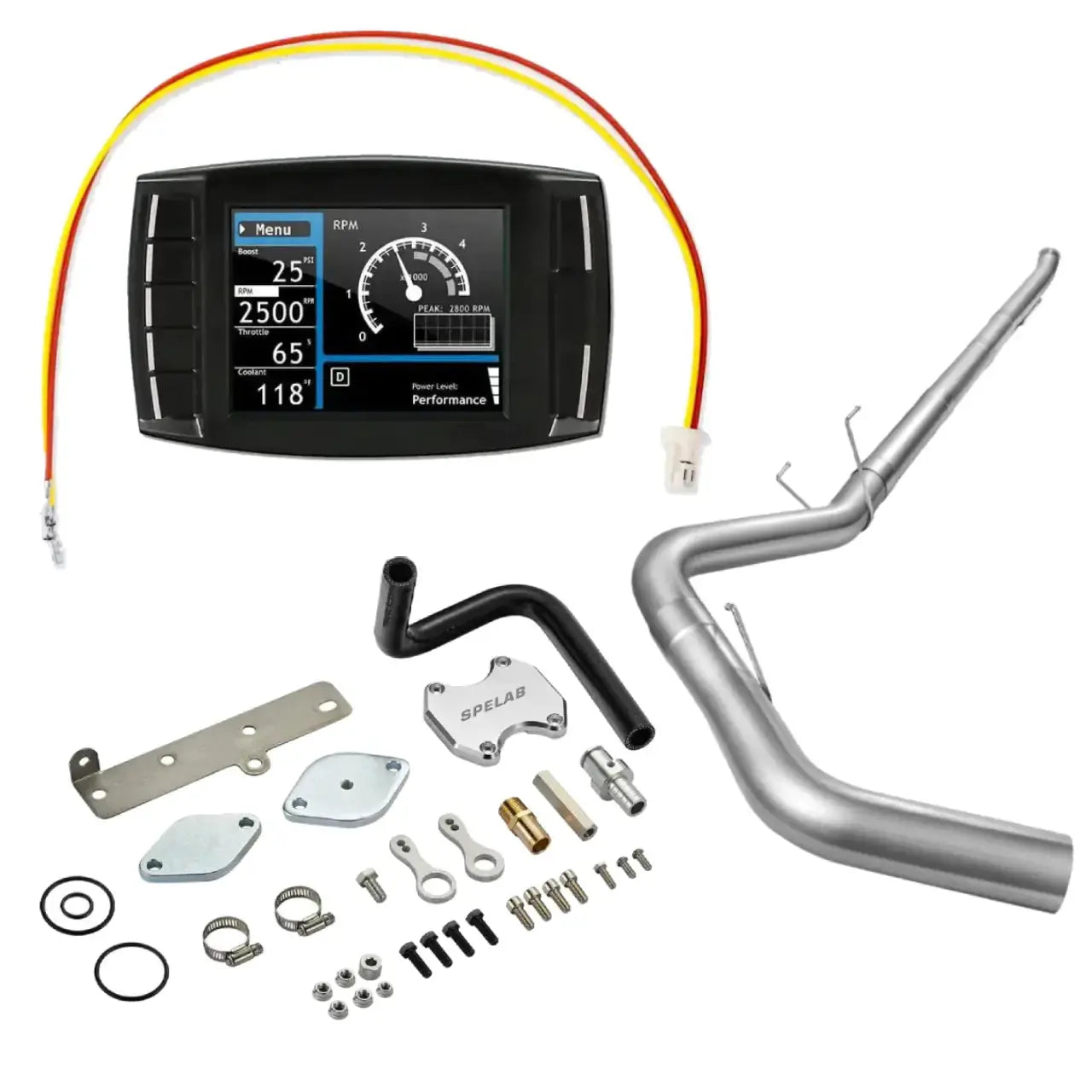

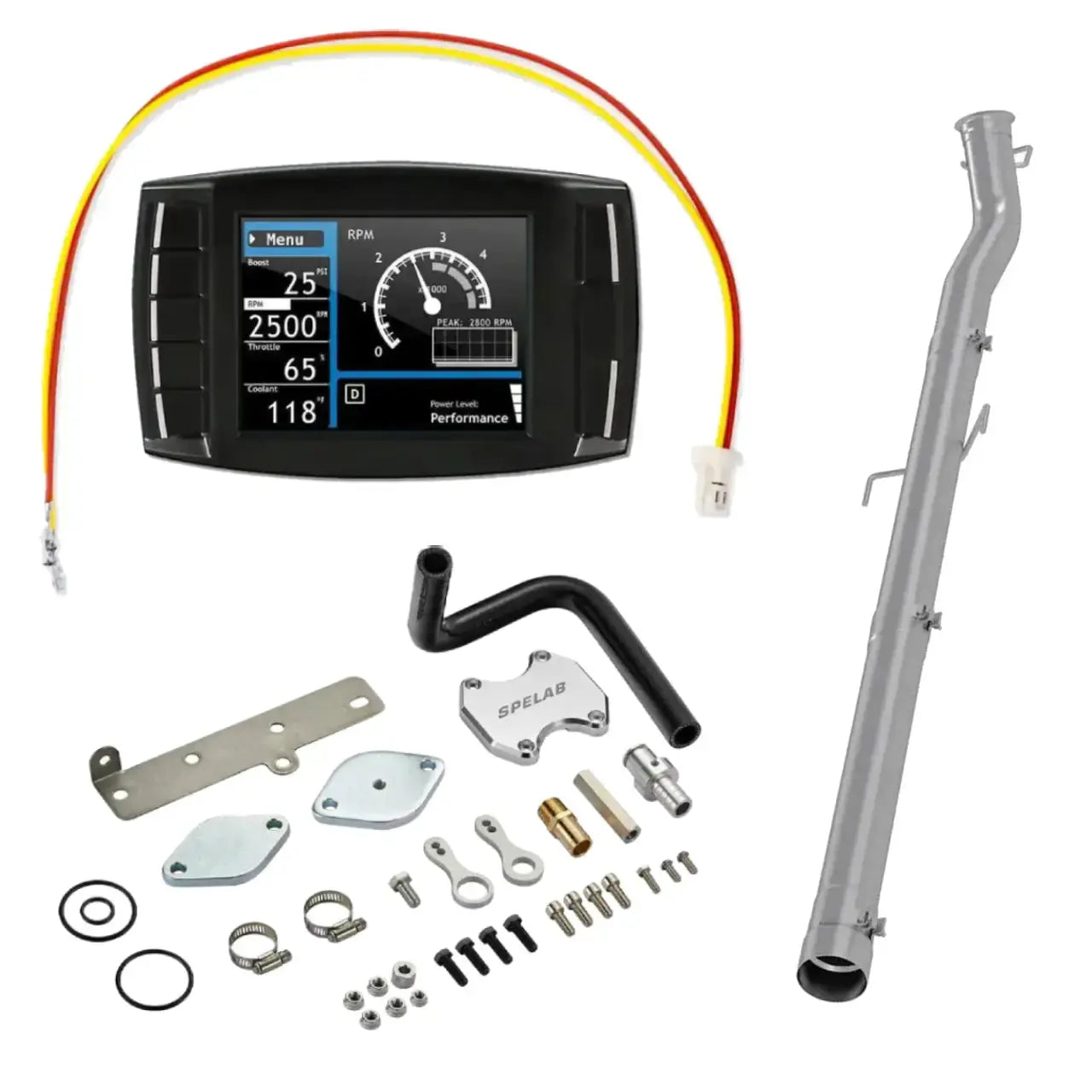

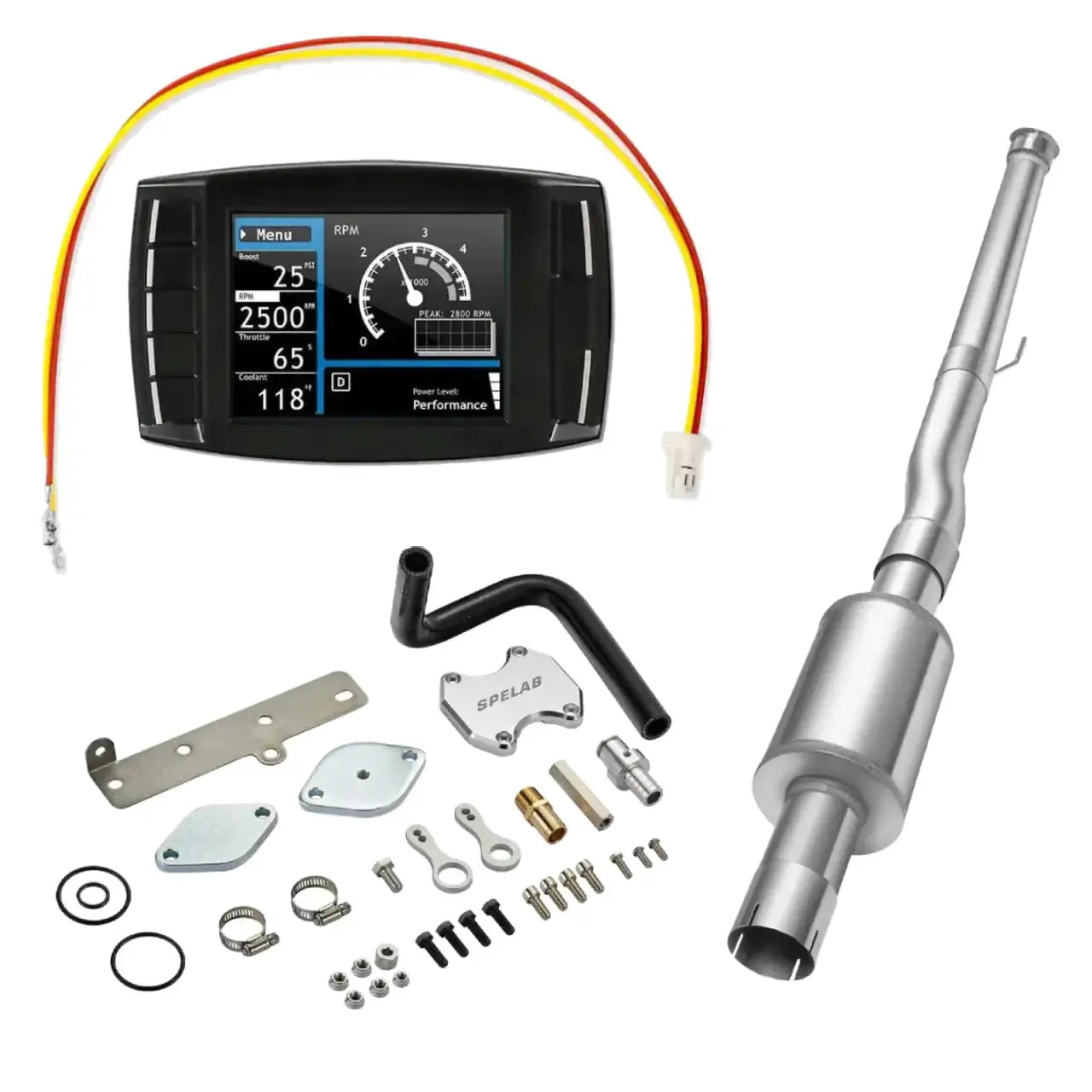

- Selectable exhaust layout: Choose a 4-inch race pipe, 4-inch race pipe with muffler, 4-inch downpipe-back system, or 5-inch downpipe-back system.
- RAM-specific tuner configuration: The Mini Maxx V2 option for 2018–2021 Ram trucks includes the required bypass cable.
- Installation provisions: The EGR kit includes a transmission dipstick bracket, coolant-hose bracket, and exhaust-manifold plates tapped for an EGT probe.
Specifications and Configuration Options
| Component | SKU | Configuration |
|---|---|---|
| EGR Delete Kit | FLES08134 | EGR valve/cooler removal and coolant reroute hardware |
| DPF Delete Race Pipe | ES08114 | 4-inch race pipe |
| DPF Delete Race Pipe | ES08338 | 4-inch race pipe with muffler |
| Downpipe-Back Exhaust | ES08340 | 4-inch downpipe-back configuration |
| Downpipe-Back Exhaust | ES08341 | 5-inch downpipe-back configuration |
| Mini Maxx V2 Tuner | FLCI08596 | 2018–2021 Ram tuner with bypass cable |
- Race-pipe material: SUS409 stainless steel.
- Race-pipe wall thickness: 2 mm.
- Available exhaust diameters: 4 inch and 5 inch.
- Components differ between the race-pipe and downpipe-back configurations. Select the required configuration before ordering.
What This Kit Changes
EGR System
The EGR delete hardware removes the EGR valve and cooler from operation, closes the exhaust-gas recirculation path, and reroutes the coolant circuit. This is a mechanical EGR delete and coolant-reroute configuration rather than a CCV reroute kit.
DPF, CAT, SCR and DOC Exhaust Section
The selected race-pipe or downpipe-back configuration replaces the applicable factory exhaust aftertreatment section. Removing this hardware also changes the role of related pressure, temperature, and emissions-system sensors.
DEF/SCR and PCM Control
The Mini Maxx V2 supplies the compatible programming component for the listed application. This package does not use a separate CCV delete or crankcase-reroute component.
What Is Included
- EGR Delete Kit
- Coolant reroute hose
- Transmission dipstick bracket and coolant-hose bracket
- Exhaust-manifold plates tapped for an EGT probe
- Selected DPF delete race-pipe or downpipe-back configuration
- Applicable exhaust clamps, hangers, and installation hardware for the selected configuration
- Mini Maxx V2 Tuner for 2018–2021 Ram
- Bypass cable for the 2018–2021 Ram tuner configuration
Some factory exhaust hardware may be reused. Check the selected configuration and vehicle layout before disassembly.
Tune and Programming Requirements
Compatible programming is required when the DPF, CAT, SCR, DOC, EGR, or related emissions sensors are removed from operation. The package includes the Mini Maxx V2 tuner configured for the listed 2018–2021 Ram application.
- Check the PCM software part number before ordering.
- 2019–2021 Ram applications use one listed power level, with a 20 PSI tune limit.
- Do not remove the factory aftertreatment hardware without compatible programming for the vehicle configuration.
- Unsupported PCM software, incomplete programming, disconnected sensors, or installation faults can result in a check-engine light, diagnostic trouble codes, regeneration faults, reduced-power operation, or drivability problems.
- No CEL-free or DTC-free result is guaranteed.
Installation Notes
- Professional installation by a technician experienced with Cummins EGR, diesel aftertreatment, and PCM programming is recommended.
- The EGR portion changes the exhaust-gas path and engine-coolant routing.
- Shorter wheelbase or specific cab-and-bed configurations can require exhaust cutting and adjustment.
- Some factory hardware may need to be reused.
- Check pipe routing, clamp engagement, hanger alignment, coolant connections, wiring, and sensor handling before operating the vehicle.
- Use the 4-inch DPF and CAT delete pipe installation instructions when installing that configuration.
Who This Kit Is For
- Owners of a listed 2019–2021 Ram 2500 or 3500 pickup with the 6.7L Cummins diesel engine.
- Buyers who need the EGR hardware, selected exhaust configuration, and compatible tuner in one package.
- Vehicles with a supported PCM software part number and a compatible pickup exhaust layout.
- Owners prepared for mechanical installation, coolant-system work, exhaust work, and PCM programming.
Who Should Not Buy This Kit
- Owners who need to retain the factory EGR, DPF, CAT, DOC, SCR, DEF, sensor, and regeneration systems.
- 2022 or 2023 Ram owners, because those model years are not included in this kit's listed fitment.
- Owners of 3500, 4500, or 5500 Cab & Chassis commercial-style trucks.
- Vehicles with unsupported PCM software or an incompatible exhaust configuration.
- Buyers seeking a CCV delete or crankcase-reroute kit.
- Buyers seeking a guarantee of no warning lights, no diagnostic codes, road legality, or emissions-inspection approval.
Emissions and Road-Use Notice
Important: This kit changes factory emissions-control hardware and control logic. It is not represented as street legal, emissions compliant, inspection ready, or approved for every vehicle use.
Vehicle modification requirements vary by jurisdiction and vehicle use. The buyer and installer are responsible for complying with applicable federal, state, and local laws and for considering possible effects on registration, emissions testing, warranty, insurance, and resale.
Shipping & Returns
Free U.S. Shipping: Orders are typically processed within 1–2 business days and delivered within 7–9 business days. Additional charges may apply to remote areas.
30-Day Returns: Unopened and unused items in their original packaging may be returned within 30 days of receipt. Return shipping is covered for verified quality issues.
Worry-Free Delivery: Optional protection against eligible loss, theft, delay, or transit damage is available at checkout.
2019–2021 Ram 6.7L Cummins Delete Kit FAQs
Q1: What factory systems does this kit change?
A1: It changes the EGR valve and cooler system, the applicable DPF/CAT/SCR/DOC exhaust section, and the related DEF/SCR and PCM control logic.
Q2: Which trucks are included in the listed fitment?
A2: The listed fitment covers 2019–2021 Ram 2500 and 3500 pickups with the 6.7L Cummins diesel engine.
Q3: Does this kit fit a 2022 or 2023 Ram?
A3: No. Those model years are not included in this kit's listed fitment.
Q4: Does it fit Ram Cab & Chassis trucks?
A4: No. The exhaust configuration is not listed for 3500, 4500, or 5500 Cab & Chassis commercial-style trucks.
Q5: Does the package include a tuner?
A5: Yes. It includes the Mini Maxx V2 configuration for 2018–2021 Ram trucks and the associated bypass cable.
Q6: Is compatible programming required?
A6: Yes. Removing the listed emissions hardware changes the factory sensor, regeneration, and emissions-control logic.
Q7: Can the vehicle still develop a check-engine light or diagnostic code?
A7: Yes. Unsupported PCM software, incomplete programming, sensor issues, wiring faults, or installation problems can cause warning lights, diagnostic codes, regeneration faults, or reduced-power operation.
Q8: What PCM limitation applies to 2018–2021 Ram trucks?
A8: The tuner supports the listed original PCM software when the PCM part number begins with a number. A part number beginning with a letter may not be supported.
Q9: Which exhaust configurations can I select?
A9: Available choices are a 4-inch race pipe, 4-inch race pipe with muffler, 4-inch downpipe-back system, and 5-inch downpipe-back system.
Q10: Are all configurations supplied with the same exhaust components?
A10: No. Components differ between the race-pipe, muffler, and downpipe-back configurations. Select the required SKU before ordering.
Q11: Can the installation require cutting?
A11: Yes. Shorter wheelbase or specific cab-and-bed configurations can require exhaust cutting and adjustment.
Q12: Is professional installation recommended?
A12: Yes. Installation involves EGR-system removal, coolant rerouting, exhaust work, sensor handling, and PCM programming.
Q13: Is this a CCV delete or crankcase-reroute kit?
A13: No. This package combines EGR, DPF/aftertreatment, DEF/SCR programming, and exhaust components. It does not include a CCV reroute kit.
Q14: Is the modification guaranteed to be completely reversible?
A14: No. Returning the truck to its factory configuration requires the original emissions hardware, sensors, exhaust components, coolant routing, and compatible factory programming.
Q15: Will this kit guarantee that the truck passes an emissions inspection?
A15: No. This product changes factory emissions-control systems and is not sold with an emissions-inspection or road-legality guarantee.
