How Bright Do I Need LED Headlights? Different Lumens Comparison

Choosing LED headlights is not just about buying the highest lumen number on the box. The right choice depends on whether you are replacing a low beam, high beam, or fog light; the bulb size your vehicle actually uses; the headlamp housing design; and how well the finished beam stays controlled on the road.

For many drivers, the goal is simple: see farther at night without creating glare for other road users. That means looking at lumens, beam pattern, bulb fitment, color temperature, heat management, and installation as one system.

Table of Contents

• What LED Headlight Lumens Mean
• LED Headlight Lumens Comparison
• Why Beam Pattern Matters More Than a Big Number
• How to Choose LED Headlights
• How to Choose the Right Bulb Size
• Product Recommendation
• Frequently Asked Questions

What Do LED Headlight Lumens Mean?

Lumens measure total visible light output. In plain terms, a larger lumen figure means the light source is claiming to emit more light. That is useful information, but it is only one part of a headlight comparison.

A headlamp assembly is an optical system. The reflector or projector, bulb position, LED-chip orientation, lens condition, housing design, and headlight aim all affect where the light goes. A bulb can look extremely bright when viewed from outside the vehicle and still produce a poor road pattern if it does not sit correctly in the housing.

Here is the part that matters: usable visibility is not the same thing as raw lumen output. A well-controlled beam places light farther down the road without throwing excessive light into the eyes of approaching drivers. A poorly controlled beam can create foreground glare, uneven hotspots, dark areas, and upward scatter.

Watch the original video for a visual introduction to LED headlight choices: LED headlight lumen comparison video.

LED Headlight Lumens Comparison: How to Read the Numbers

Many owners search for a car headlight lumens chart because they want a fast answer to questions such as “Is 6,000 lumens bright?” or “Is 20,000 lumens too bright for headlights?” The useful answer depends on how the figure is stated and how the bulb performs in the complete lamp assembly.

A number such as 20,000LM is not meaningful until you know whether it applies to one bulb, a pair of bulbs, or another measurement basis. Compare like with like. A per-set number should not be compared directly with a per-bulb number.

Color temperature is separate from brightness. A 6500K bulb can appear cool white, while a lower-Kelvin bulb may look warmer. Neither color temperature nor lumen output alone tells you whether the beam pattern will be correct.

Why Beam Pattern Matters More Than a Big Number

Low beams and high beams serve different jobs. A low beam needs a controlled cutoff to reduce glare toward traffic ahead. A high beam is intended for longer forward reach when conditions allow it. Treating them as interchangeable because one bulb has a larger lumen claim is a common mistake.

LED replacement bulbs also need to position their light source close to where the original lamp design expects it. In many applications, LED chips mounted on opposite sides of the bulb need to sit sideways in the housing, but the final answer is always the beam pattern produced by the complete lamp.

Take a minute before reinstalling the dust cap. A cooling fan, heat sink, external driver, or wiring lead can interfere with the cap or nearby components. A bulb installed under pressure or at an angle can shift the beam pattern and affect sealing around the housing.

Why a lifted vehicle needs extra care

Vehicle ride height changes where a low beam lands relative to other road users. A lifted truck, worn suspension, overloaded cargo area, or incorrectly aimed headlamp can raise the beam even when the bulb itself is correctly selected. Check headlight aim after suspension, tire-size, or ride-height changes.

How to Choose LED Headlights for Your Vehicle

Start with the lamp position and the housing, not the marketing number. A vehicle may use H11 for a low beam, 9005/HB3 for a high beam, or another bulb type entirely. The same model can also use different bulbs depending on model year, trim, market, and factory halogen, HID, or LED equipment.

1. Identify the lamp position. Confirm whether you are replacing the low beam, high beam, fog light, or daytime running lamp.
2. Match the bulb designation. Check the owner’s manual and the marking on the removed bulb. Do not rely on connector shape alone.
3. Identify the housing type. Reflector and projector housings can respond differently to an LED replacement.
4. Check physical clearance. Measure available space behind the housing for the bulb body, fan, heat sink, driver, wiring, and dust cap.
5. Inspect the electrical connection. Check for loose terminals, damaged insulation, moisture, or heat damage before installing a new bulb.
6. Check the beam after installation. Confirm that both lamps have an even pattern and that the headlamps are aimed correctly.

For a deeper explanation of bulb-base differences, lamp applications, and beam-pattern concerns, see H11 vs. 9005 bulb fitment and beam-pattern differences.

Low-beam, high-beam, and fog-light choices

Low beams should be selected for controlled forward lighting and glare management. High beams should be matched to the vehicle’s intended high-beam location and used responsibly. Fog-light performance depends heavily on lamp design and beam placement; a higher lumen number does not automatically make a fog lamp more effective in poor weather.

Tune requirements, warning-light behavior, and electrical compatibility vary by vehicle and installed hardware. Sensor location, wiring condition, heat, lamp-control modules, and the complete lighting system can all affect the result. If a bulb flickers, triggers a warning, runs hot, or does not illuminate consistently, stop and correct the underlying compatibility issue rather than forcing the installation.

How to Choose the Right Bulb Size

Two similar-looking bulbs are not automatically interchangeable. The base, locking tabs, sealing ring, electrical connector, bulb depth, and intended optical position all matter.

1. Check the lighting section of the owner’s manual.
2. Read the marking on the original bulb after it has cooled.
3. Confirm the exact lamp position being serviced.
4. Check whether the vehicle uses factory halogen, HID, or LED headlamps.
5. Compare the replacement bulb’s base, tabs, connector, and sealing area with the removed bulb.
6. Make sure the rear cover can close without pressing against the new bulb or wiring.

If your vehicle uses an H11-family bulb, review the selected LED headlight bulbs by bulb size before ordering. For hands-on guidance after you have selected the correct H11 application, see how to install H11 LED headlight bulbs.

Product Recommendation

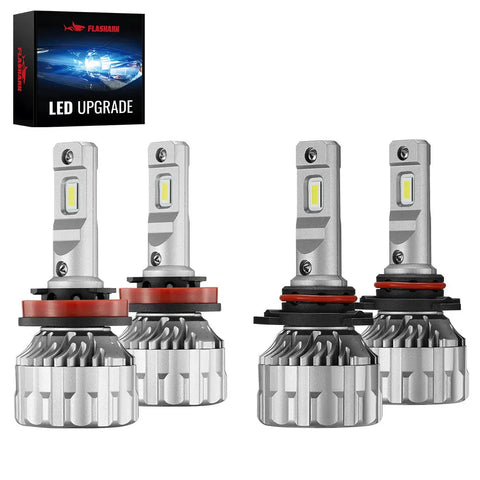

For drivers who have confirmed an H11, H9, H8, 9005, or HB3 application, the Flashark S6 H11/9005 LED Headlight Bulbs provide a 6500K white-light option with an aluminum body, dual copper-tube heat-conduction design, and cooling fan.

Match the selected configuration to the exact vehicle, lamp position, and housing. Check installation clearance, dust-cap fit, beam pattern, and headlight aim after fitting any LED replacement bulb. If you need help identifying the correct bulb configuration, contact support before ordering.

Conclusion

The best LED headlight choice is not simply the bulb with the largest lumen claim. Choose the correct bulb size, make sure it fits the complete lamp assembly, allow room for cooling hardware, and inspect the beam pattern after installation. A properly seated and aimed LED bulb can provide clearer, more useful nighttime lighting than a poorly matched bulb with a larger advertised number.

For more bulb-size articles and lighting guides, browse the Flashark lighting guides.

Frequently Asked Questions

Q1: Is 6,000 lumens bright for headlights?

A1: It can be bright enough for many applications, but the number alone does not determine road visibility. Check whether the rating is per bulb or per set, then inspect the finished low-beam pattern, cutoff, and aim.

Q2: Is 8,000 lumens bright for LED headlights?

A2: An 8,000-lumen claim may represent a substantial amount of light, but the useful result depends on the bulb’s position in the housing, the reflector or projector design, and whether the beam remains controlled without glare.

Q3: Is 20,000 lumens too bright for headlights?

A3: A high advertised figure should be treated carefully. Check how the number is stated, whether the bulb is used in a low- or high-beam position, and how the complete lamp controls the beam. A road-driven vehicle needs correct aim and glare control, not just a high output claim.

Q4: Are LED headlight lumens listed per bulb or per set?

A4: Product listings can use either format. Read the specification closely before comparing products. A per-set figure covers both bulbs, while a per-bulb figure refers to one light source.

Q5: Does a higher lumen number always improve nighttime visibility?

A5: No. A higher number can add available light, but road visibility also depends on beam pattern, hotspot placement, cutoff control, housing condition, lens clarity, bulb orientation, and headlight aim.

Q6: Why do LED headlights look bright but light the road poorly?

A6: The LED chips may not sit in the correct optical position for the reflector or projector. That can spread light into the foreground or upward instead of placing it at a useful distance down the road.

Q7: Can I use a 9005 bulb instead of an H11 bulb?

A7: A standard 9005/HB3 bulb is not a direct H11 replacement. Their bases, locking tabs, common lamp applications, and intended optical positions differ. Use the bulb type specified for the exact lamp assembly.

Q8: Do I need to aim my headlights after installing LED bulbs?

A8: Yes. Check the beam pattern and headlight aim after any bulb replacement, especially if the bulb design, vehicle ride height, suspension, tires, or headlamp housing condition has changed.

Q9: Why are my LED headlights flickering or showing a warning light?

A9: Flickering or warnings can be related to electrical load monitoring, loose connectors, wiring damage, moisture, heat, or compatibility with the vehicle’s lighting system. Inspect the installation and electrical connection before continuing to use the bulbs.

Q10: Does 6500K mean the headlight is brighter?

A10: No. Kelvin describes color appearance, not total light output. A 6500K bulb generally appears cool white, while lumen output and beam pattern determine how much useful light reaches the road.

Q11: Can I install LED headlights in a reflector housing?

A11: A reflector housing can work with an LED replacement only when the bulb seats correctly and produces a controlled beam pattern. Test the cutoff and glare after installation; do not assume that any LED bulb will perform correctly in every reflector design.

Q12: What should I check before buying LED headlight bulbs?

A12: Check the vehicle year, model, engine or trim where applicable, factory lighting package, lamp position, bulb designation, housing type, rear-cover clearance, and local road-use requirements. Then inspect the selected product configuration before installation.
