The 1996–2000 Honda Civic DX, LX, and CX came with the D16Y7 — a reliable 1.6L SOHC engine that Honda designed for economy, not excitement. The factory intake system reflects that priority: a restrictive plastic airbox feeding through a narrow, ribbed rubber intake tube that chokes airflow above 3,500 RPM and silences every hint of induction character. For an engine that needs all the help it can get to feel responsive, the stock setup is a bottleneck.
This Flashark short-ram intake replaces the entire restrictive factory assembly with a polished 6061 aluminum intake pipe and a high-flow, reusable cone filter, housed behind a formed steel heat shield. The result is a noticeably sharper throttle response in the 2,000–4,500 RPM range — exactly where the D16Y7 spends its time in daily driving. On a stock D16Y7, expect 3–5 WHP at the wheels, but the more meaningful improvement is the elimination of the dead-spot hesitation these engines are known for at part-throttle tip-in.
Installation takes 45–60 minutes using basic hand tools. The kit uses factory mounting points and requires no cutting, drilling, or permanent modification. The included heat shield positions between the filter and exhaust manifold to reduce radiant heat soak during stop-and-go driving. For Civic owners who want better daily-driver response and a satisfying induction growl without breaking the bank, this is the entry point.
Key Features

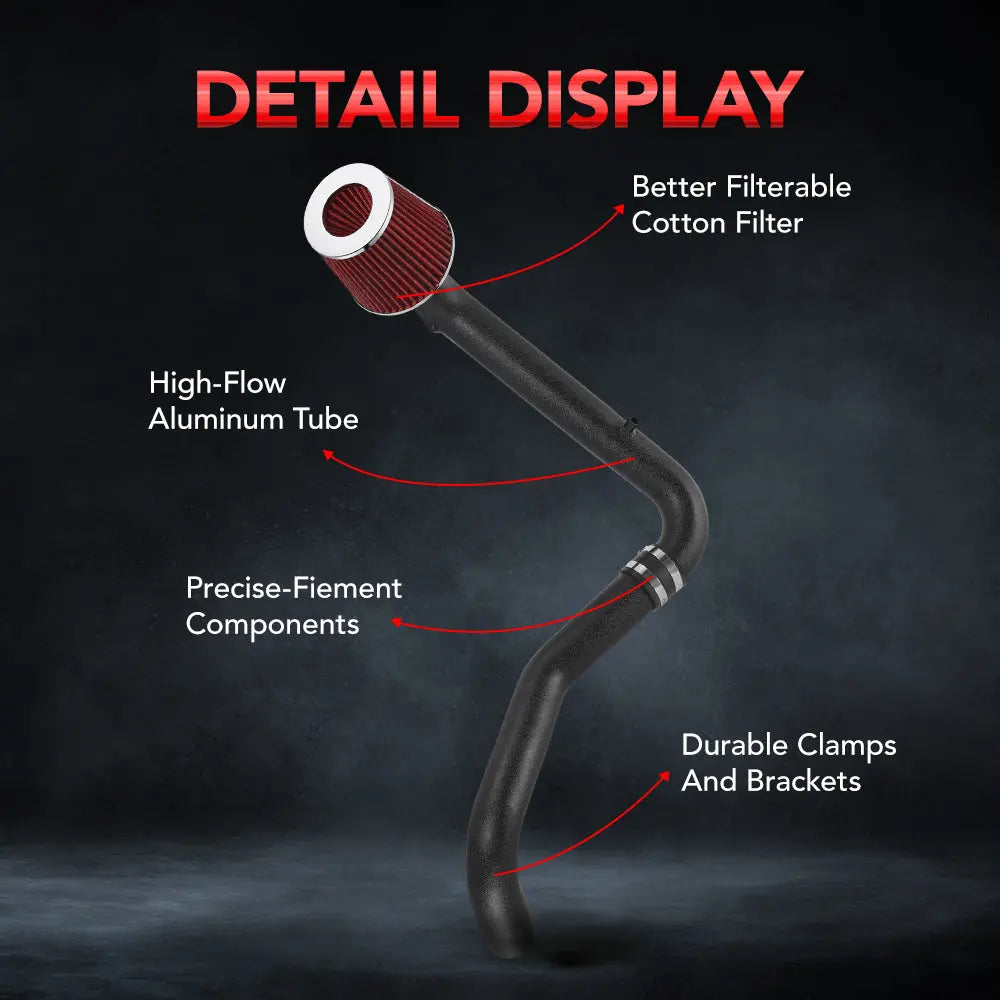

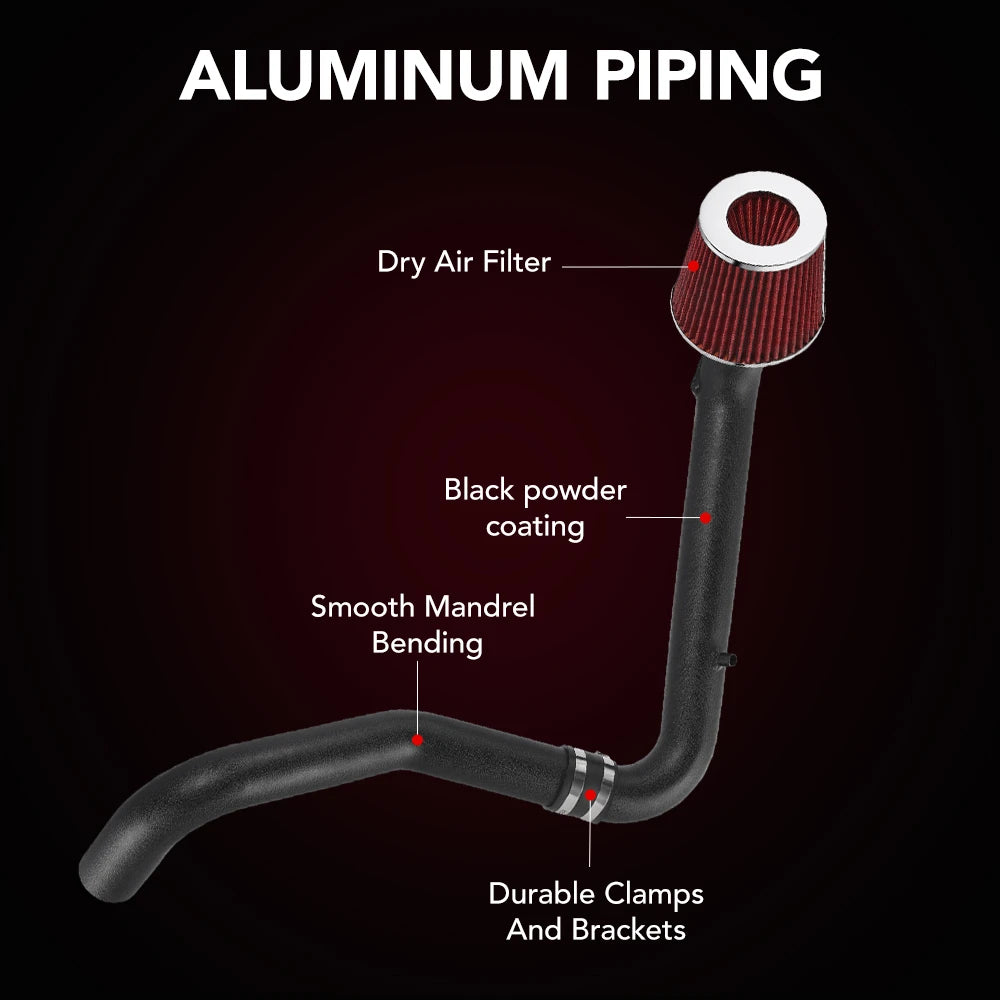

Black powder-coated 6061 aluminum intake pipe — mandrel-bent for smooth airflow with no internal restrictions or crush-bent sections; Black powder-coated finish resists corrosion and keeps the engine bay looking clean
High-flow reusable cone air filter — red oiled-cotton filter element captures contaminants down to 5 microns while flowing significantly more air than the factory paper panel filter; washable and reusable — service every 15,000–20,000 miles
Direct bolt-on design — uses OEM mounting locations and hardware; no cutting, drilling, or permanent modification to the vehicle
Improved throttle response — the shorter, larger-diameter intake path eliminates the factory resonance chambers and ribbed tubing that create hesitation at part-throttle tip-in
Aggressive induction sound — the open-element cone filter and rigid aluminum pipe produce a deep intake growl under acceleration that transforms the driving experience; quiet at cruise
Complete kit — includes intake pipe, cone filter, heat shield, silicone couplers, stainless steel hose clamps, vacuum line, and all required mounting hardware
Retains all factory sensors — includes provisions for the IAT (Intake Air Temperature) sensor; no check engine light when installed correctly
Lightweight construction — aluminum pipe and filter assembly weighs approximately 4 lbs, replacing the factory airbox assembly (~7 lbs) for a net weight savings
Specifications
Brand: Flashark
SKU: FLIS25043
Pipe Material: 6061 aluminum
Pipe Wall Thickness: 1.5mm
Filter Color: Red
Heat Shield Material: Formed steel
Coupler Material: 3-ply reinforced silicone
Clamp Type: Stainless steel worm-gear hose clamps
Sensor Provisions: IAT (Intake Air Temperature) sensor bung — retains factory sensor
Installation Difficulty: Beginner — no cutting, drilling, or permanent modification
Installation Time: 45–60 minutes
Weight: Approximately 4 lbs (assembled)

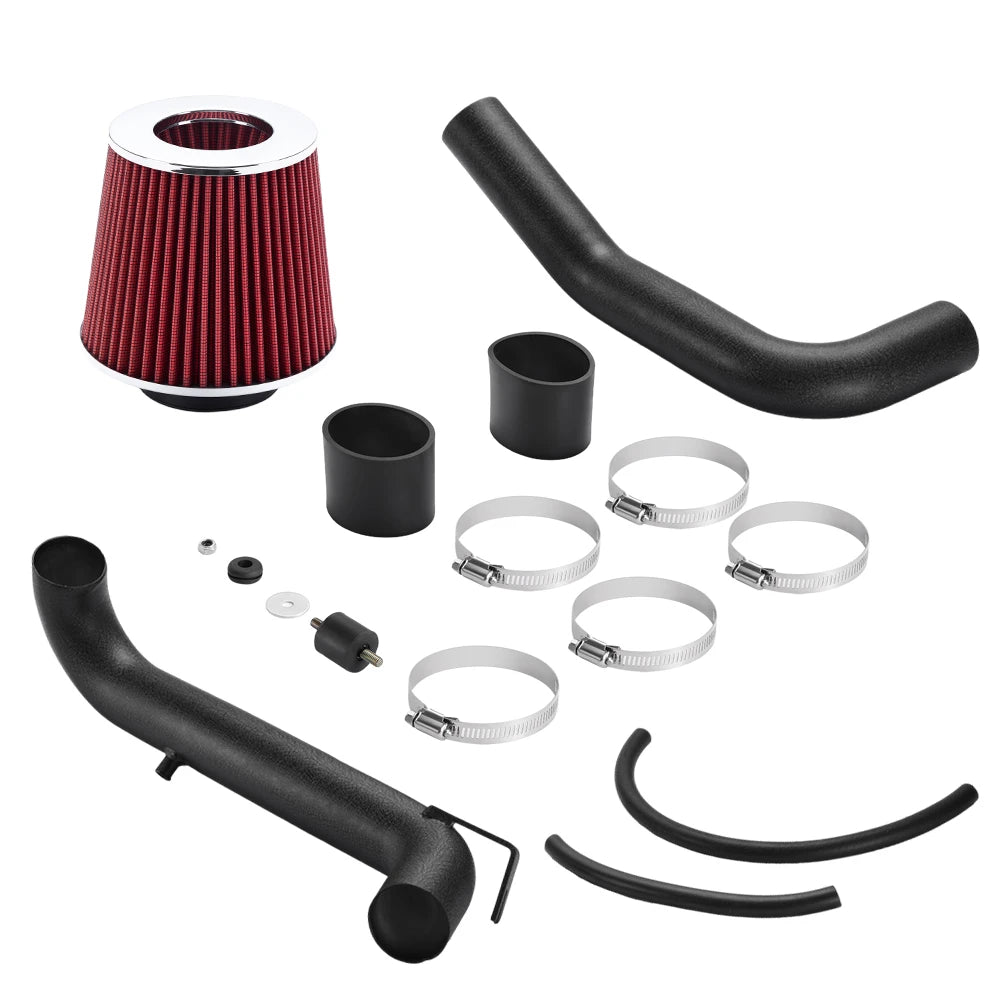

Package Includes
2 × 6061 aluminum mandrel-bent intake pipe (2.5" / 63mm diameter)
1 × Red Dry air filter
2 × 3-ply reinforced silicone couplers (black)
5 × Stainless steel worm-gear hose clamps
2 × Vacuum/PCV breather hose
All required mounting hardware (bolts, washers, nuts, brackets)
Installation instructions (print)
| Years | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| 1996–2000 | Honda | Civic | DX | D16Y7 1.6L SOHC non-VTEC | Coupe (EJ6) & Sedan (EJ6) — direct bolt-on |
| 1996–2000 | Honda | Civic | LX | D16Y7 1.6L SOHC non-VTEC | Sedan only (EJ6) — direct bolt-on |
| 1996–2000 | Honda | Civic | CX | D16Y7 1.6L SOHC non-VTEC | Hatchback (EJ6) — direct bolt-on |
Q1: What engines does this intake fit?
A: This kit is designed exclusively for the D16Y7 1.6L SOHC non-VTEC engine found in 1996–2000 Honda Civic DX, LX, and CX trims. It does not fit the D16Y8 (EX, VTEC), D16Y5 (HX, VTEC-E), or B16A2 (Si, DOHC VTEC). Always verify your engine code — it's stamped on the engine block just below the exhaust manifold, to the left of the oil filter.
Q2: Will this fit my Civic LX? I thought LX has VTEC.
A: For the 1996–2000 generation (EK chassis), LX is D16Y7 non-VTEC, not VTEC. Only the EX trim received the D16Y8 VTEC engine. If you have an LX and the engine hasn't been swapped, this kit will fit. If you're unsure, check your engine code on the block stamp below the exhaust manifold — if it reads "D16Y7", you're good.
Q3: I have a CX hatchback — will this fit?
A: Yes. The 1996–2000 Civic CX hatchback uses the same D16Y7 engine as the DX and LX, and the engine bay layout is identical across coupe, sedan, and hatchback body styles on the EK platform. Installation is the same process regardless of body type.
Q4: Is this a true cold air intake or a short ram?
A: This is a short ram intake with heat shield. The filter sits in the engine bay (not routed into the fender well), so it draws air from the engine compartment rather than outside. The included heat shield blocks direct radiant heat from the exhaust manifold, but it does not deliver the same intake air temperature reduction as a fender-well cold air intake. The trade-off is easier installation (45–60 min vs. 90+ min for a true CAI), no risk of water ingestion, and better induction sound since the filter is closer to the cabin.
Q5: How much horsepower will this add to a D16Y7?
A: On a stock D16Y7, expect 3–5 WHP with the largest gain in the 3,000–4,500 RPM mid-range. This is a 106 hp economy engine from the factory — there is no intake that will transform it. The more noticeable improvements are throttle response (the factory dead-spot hesitation at tip-in is largely eliminated) and induction sound. Claims of 7–10% gains on a non-VTEC D-series are marketing, not reality.
Q6: Will this intake cause a check engine light?
A: No, when installed correctly. The D16Y7 uses a speed-density (MAP sensor) fuel management system — there is no MAF sensor to confound airflow readings. The IAT sensor grommet is pre-installed on the intake pipe. The most common cause of a CEL after installation is a vacuum leak caused by a loose clamp or a disconnected PCV breather hose. Double-check all connections before starting the engine.
Q7: Do I need a tune after installing this intake?
A: No. The factory ECU will adapt within a few drive cycles. The D16Y7's speed-density system uses manifold absolute pressure (MAP) and intake air temperature (IAT) to calculate fuel delivery, and this kit retains these sensors in their factory configuration. The increase in airflow is within the ECU's adaptive learning range. A tune can extract additional power on a modified engine (header + exhaust), but it is not required for safe operation.
Q8: Will this intake improve my gas mileage?
A: In real-world driving, fuel economy changes are negligible. The D16Y7 already achieves excellent fuel economy (30–35 MPG combined) with the factory intake. Any theoretical efficiency gain from reduced pumping losses is typically offset by the driver having to use more throttle to enjoy the induction sound. Do not buy this intake expecting to save money on gas.
Q9: How loud is this intake?
A: Noticeably louder than stock, but not obnoxious. At idle and light cruise, it's barely audible. Under moderate to heavy acceleration (above 3,000 RPM), you'll hear a deep, throaty induction growl — significantly more character than the silent factory airbox. At highway cruise with steady throttle, it settles back to near-stock noise levels. If you want the maximum induction sound, you can remove the heat shield, though this will increase intake air temperatures at low speeds.
Q10: How do I clean and maintain the filter?
A: This kit uses an oiled cotton gauze filter (not a dry filter). Service it every 15,000–20,000 miles under normal conditions, or every 10,000 miles in dusty environments. The process: (1) Remove the filter from the pipe. (2) Tap it gently to dislodge loose debris. (3) Spray with a filter-specific cleaning solution (do not use gasoline or solvents). (4) Rinse with low-pressure water from the inside out. (5) Allow to dry completely — at least 4–6 hours, preferably overnight. (6) Apply a light, even coat of filter oil to each pleat — do not over-oil. (7) Let the oil wick for 20 minutes, then blot excess with a paper towel before reinstalling.
Q11: Will this fit if I've done an engine swap?
A: It depends on the swap. If you've swapped in a B-series (B16, B18, B20), H-series, or K-series engine, this kit will not fit — these engines have completely different intake manifold flange patterns, throttle body positions, and diameters. If you've swapped in another D16Y7, it fits. If you've swapped a D16Y8 into a DX/LX/CX chassis, check which intake manifold you're using — the Y8 manifold has a different throttle body orientation and this kit may not align.
Q12: Does the heat shield actually help, or is it cosmetic?
A: The heat shield provides a real, measurable benefit — primarily during stop-and-go driving and after heat soak at traffic lights. It blocks direct infrared radiation from the exhaust manifold (which can reach 400–600°F) from hitting the air filter directly. At highway speeds, the benefit is smaller because the engine bay is continuously flushed with ambient air through the grille and underbody. It is not a substitute for a true fender-well cold air intake, but it is a genuine improvement over an unshielded short ram.
Q13: What tools do I need for installation?
A: Basic hand tools only: 10mm socket and ratchet (for factory airbox bolts), flathead screwdriver (for factory hose clamps and PCV hose), Phillips screwdriver (for heat shield mounting), and optionally an 8mm socket for the IAT sensor if it's tight. No specialty tools, no cutting, no drilling. A magnetic tray helps prevent the small hardware from being lost during reinstallation.
Q14: Is this intake CARB legal in California?
A: This intake is not currently CARB-certified. It is intended for off-road, racing, and states without California emissions equipment requirements. Check your local regulations before purchasing if you live in a state that follows CARB standards (California, New York, Maine, and several others).
Q15: Will this work with my aftermarket header and exhaust?
A: Yes. This intake pairs well with a header and cat-back exhaust — the D16Y7 responds to the full intake-header-exhaust combination better than any single component. On a car with intake, header, and exhaust, expect 5–8 WHP total, with the intake contributing to the throttle response and induction sound improvements. The intake does not interfere with any header or exhaust installation.
