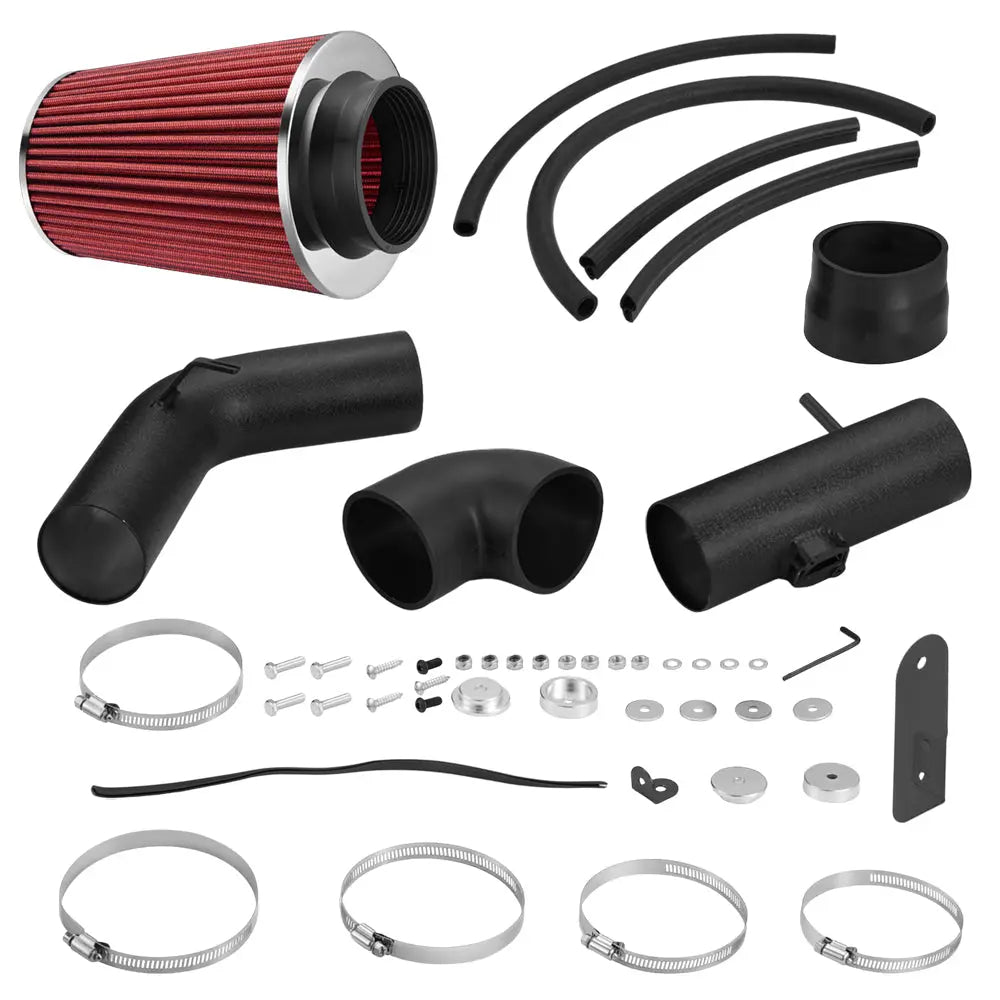

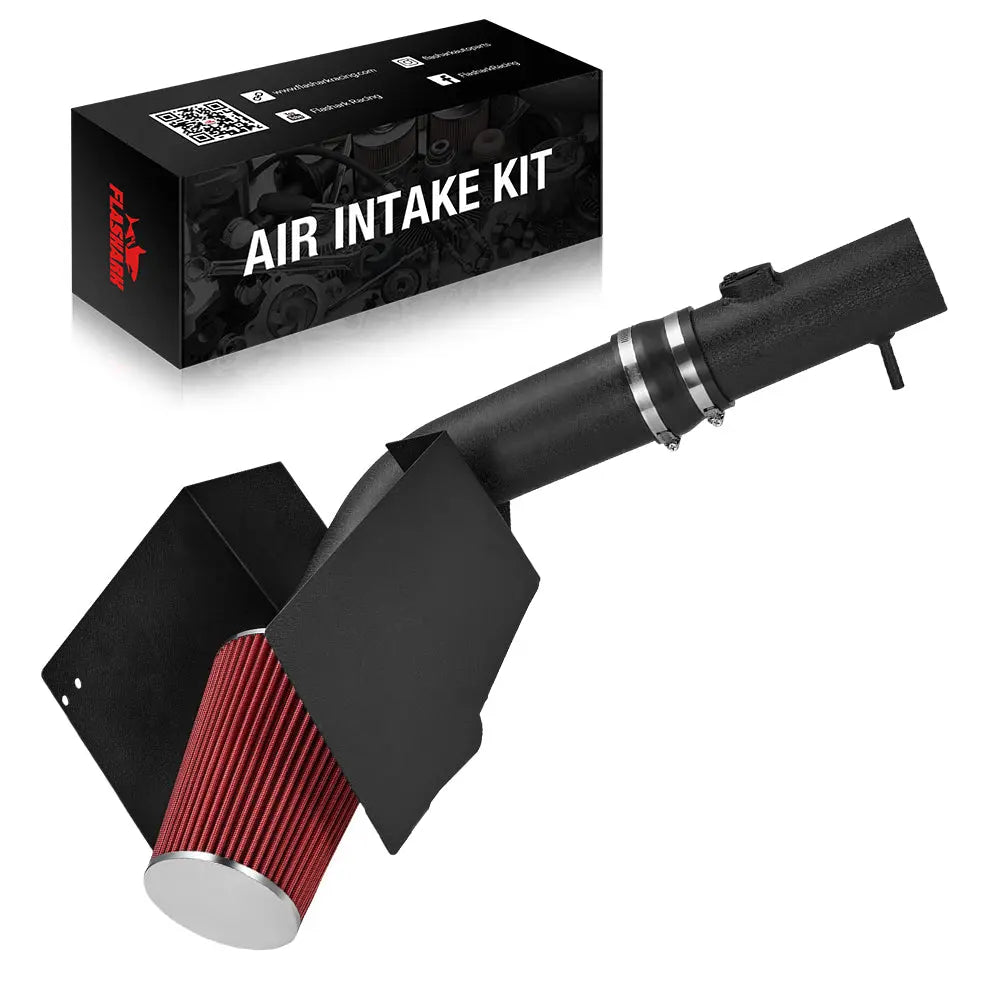

Cold Air Intake Kit for 2005-2008 Ford F-150 5.4L Triton V8 | Heat Shield + Reusable Filter | Bolt-On

Trim Compatibility: All trim levels (XL, STX, XLT, FX4, Lariat, King Ranch, Platinum, Harley-Davidson) with the 5.4L V8 — trim does not affect fitment. Compatible with both 2WD and 4WD models.

5.4 Triton Cold Air Intake FAQs for 2005–2008 Ford F-150

Q1: Is this cold air intake legal in my state?

A1: This kit does not carry a CARB Executive Order. Not legal for sale or use in California and other CARB-adopting states. For road-going trucks in those states, choose an EO-numbered intake or verify an exemption applies to your vehicle. In non-CARB states, this kit is intended for off-road and racing use where local rules permit; confirm your local emissions requirements before installing it for road use.

Q2: Will this fit my 2005–2008 Ford F-150?

A2: It fits 2005–2008 F-150 trucks with the 5.4L Triton V8 (3-valve SOHC) — every trim level (XL, STX, XLT, FX4, Lariat, King Ranch, Platinum, Harley-Davidson), 2WD and 4WD. Trim does not affect fitment. The 5.4L is identified by the 8th character of your VIN being "5". It does not fit the 4.6L V8 (VIN 8th = "W") or the 4.2L V6 (VIN 8th = "2") — those engines use a different throttle-body bore and intake-tract layout, and this kit will not seal correctly on them.

Q3: How much horsepower will this add?

A3: Typical intake-only gains for this application are approximately 5–10 WHP on an otherwise stock 5.4L Triton 3V. The factory intake is already decent for flow; the main restriction is the resonator and baffle chambers Ford added for noise suppression, so removing them gives a real but modest gain off-idle and through the midrange. When combined with supporting modifications like a cat-back exhaust, long-tube headers, and a custom tune, total gains move closer to 10–15 WHP. Actual results depend on the vehicle, calibration, installation, and supporting hardware.

Q4: Will this improve my MPG?

A4: MPG is dominated by driving habits; an intake alone can't guarantee a measurable gain. In theory, reduced intake restriction lowers pumping losses, which can marginally improve efficiency under steady-state highway cruising — most owners report 0–1 MPG real-world change, with some seeing no change or a slight decrease because the new induction sound encourages heavier throttle. Expect the main benefit as throttle response and intake tone rather than fuel economy.

Q5: Will this void my factory warranty?

A5: Under the Magnuson-Moss Warranty Act, an aftermarket part cannot void your factory warranty unless it is proven to have caused the failure you're claiming. This kit is designed as a bolt-on replacement that retains the factory MAF sensor, factory wiring, and stock throttle body, so it is among the lowest-risk upgrades from a warranty perspective. If you're still under warranty and concerned, the intake can be removed and the factory airbox reinstalled in about 30 minutes before any dealership visit.

Q6: Will it throw a check engine light (CEL)?

A6: A correctly installed kit should not trigger any codes. The kit retains the factory MAF sensor location and orientation, which keeps the MAF calibration within the OEM design envelope. If a CEL does appear after install, check in this order: (1) air leaks at every coupler — even a small gap post-MAF can cause P0171 / P0174 lean codes; (2) MAF sensor fully seated with airflow arrow pointing toward the engine; (3) all breather and PCV hoses reconnected — an open PCV line is a vacuum leak; (4) disconnect the battery for 15 minutes to reset fuel trims, then drive 30–50 miles for the ECU to relearn.

Q7: Do I need a tune after installing this intake?

A7: No tune is required for a bolt-on install that retains the factory MAF sensor, factory wiring, and stock throttle body. The MAF housing bore is calibrated to keep the air/fuel ratio within the OEM envelope. If you're already running a custom tune with long-tube headers and cat-back exhaust, your tuner will want to adjust for the new intake airflow as part of that tune — send the intake data with your datalogs.

Q8: Is this safe in rain or deep water?

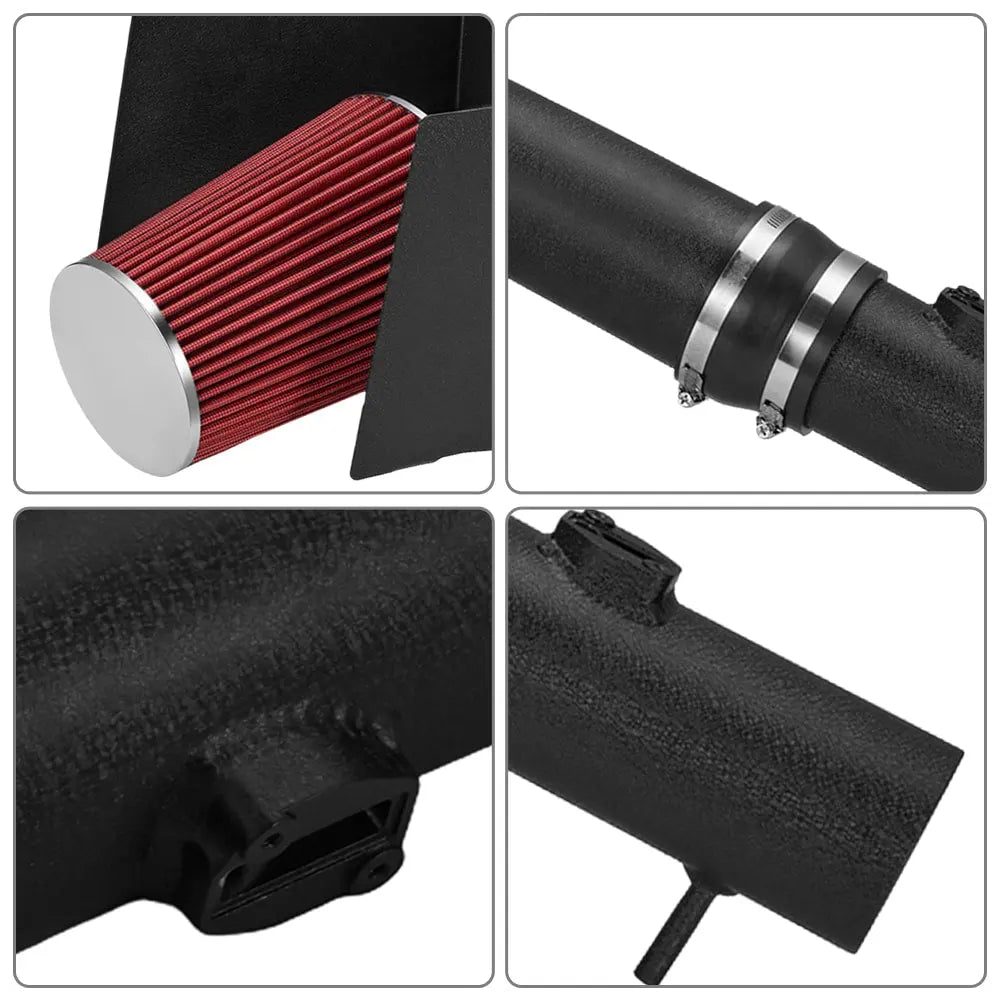

A8: Normal rain driving is fine — the filter is shielded by the steel heat shield and continues to draw from the fender well via the factory cold air duct. Avoid deep water crossings; water ingestion past the filter can hydro-lock the engine and cause severe damage. If you regularly ford water, consider a high-mount intake or a filter relocation kit.

Q9: How do I clean and maintain the air filter?

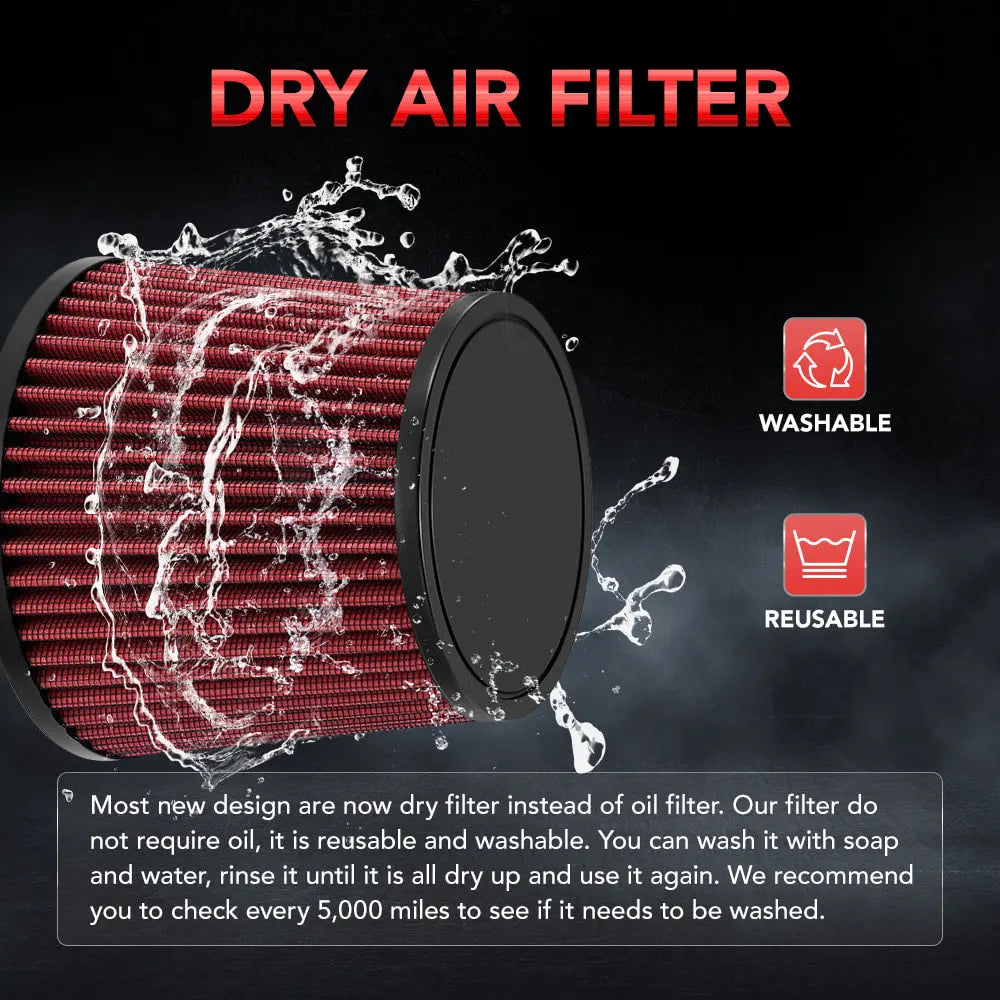

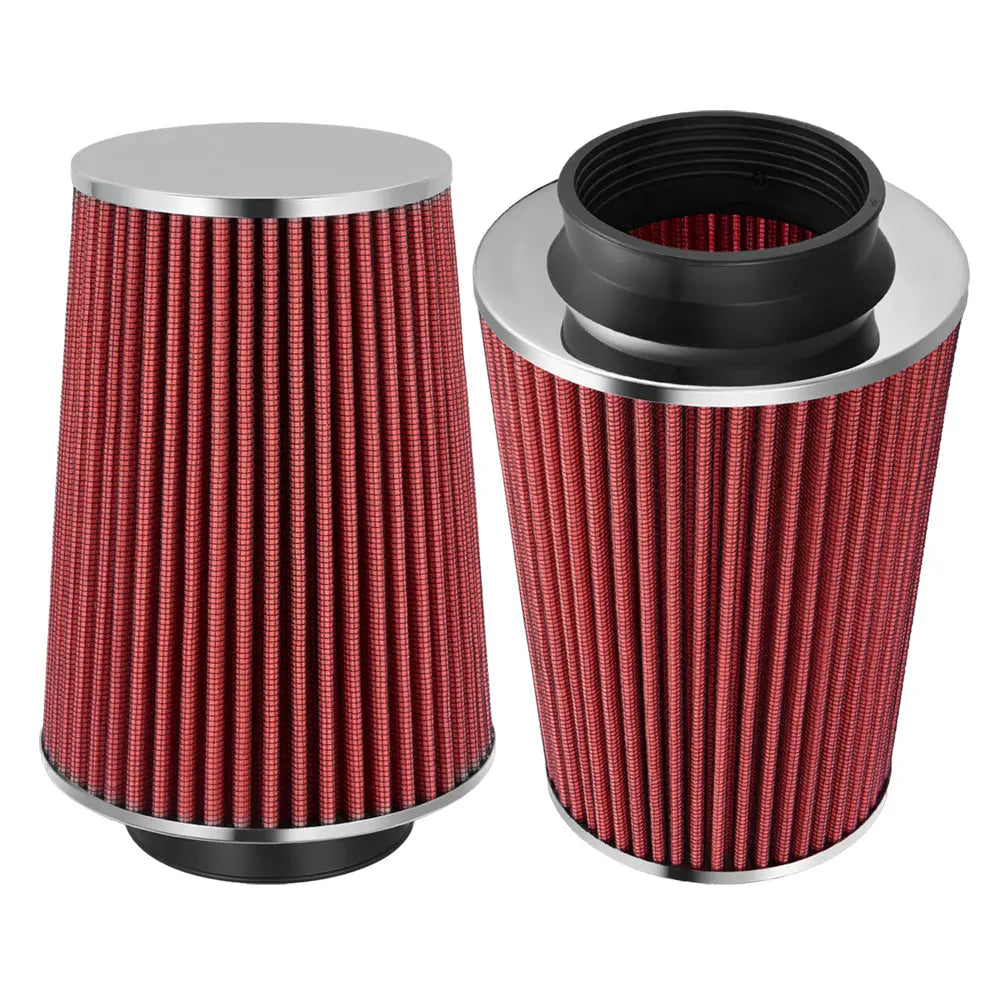

A9: This is a dry synthetic filter — not an oiled cotton gauze filter. Cleaning procedure: (1) Remove the filter from the intake pipe. (2) Tap it gently against a hard surface to dislodge loose debris. (3) Use low-pressure compressed air from the inside out, keeping the nozzle at least 6 inches away. (4) If heavily soiled, wash with warm water and mild soap, rinse thoroughly, and air dry completely before reinstalling. (5) Do not apply oil — oil on a dry filter will contaminate your MAF sensor. Clean every 15,000–20,000 miles under normal conditions, or more often in dusty environments.

Q10: What does it sound like?

A10: You'll hear a deeper induction tone under acceleration, most pronounced above 2,500 RPM under load. At cruise it quiets down. Sound is subjective — if you want a louder intake note, look at open-element short-ram designs instead; if you want a more subdued note, this heat-shielded design keeps engine-bay noise closer to stock levels than a bare cone filter.

Q11: Will this work with my aftermarket throttle body or headers?

A11: This kit is engineered for the factory 5.4L Triton throttle body bore. If you've installed an oversized throttle body, the silicone couplers in this kit may not seal correctly and you'll need to verify the coupler size with our support team before installing. The kit is compatible with cat-back exhaust upgrades out of the box; if you've installed long-tube headers, confirm clearance with the new intake pipe routing before final assembly.

Q12: What's the hardest part of the installation?

A12: Removing the factory intake resonator from the passenger-side fender well. Ford buried a large plastic resonator chamber inside the fender to cancel intake noise, and removing it requires either dropping the inner fender liner or working through the gap between the fender and frame rail with extensions. The rest of the install is straightforward: remove the factory airbox lid and intake tube (4–6 bolts and clamps), transfer your MAF sensor to the new pipe, connect the couplers, and bolt down the heat shield. Budget extra time for the resonator removal on your first attempt — it's the bottleneck. Most first-timers complete the full job in 60–75 minutes.
